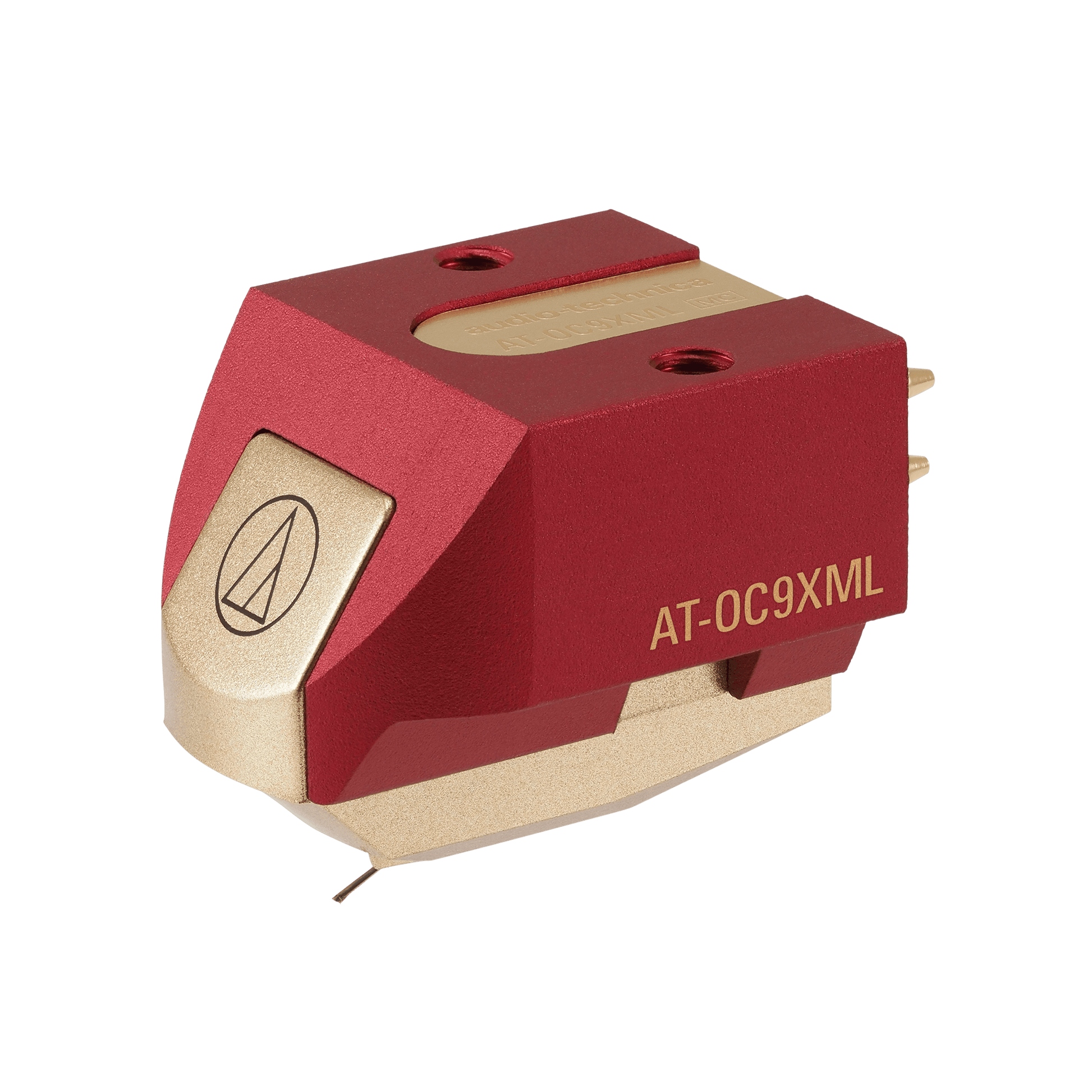

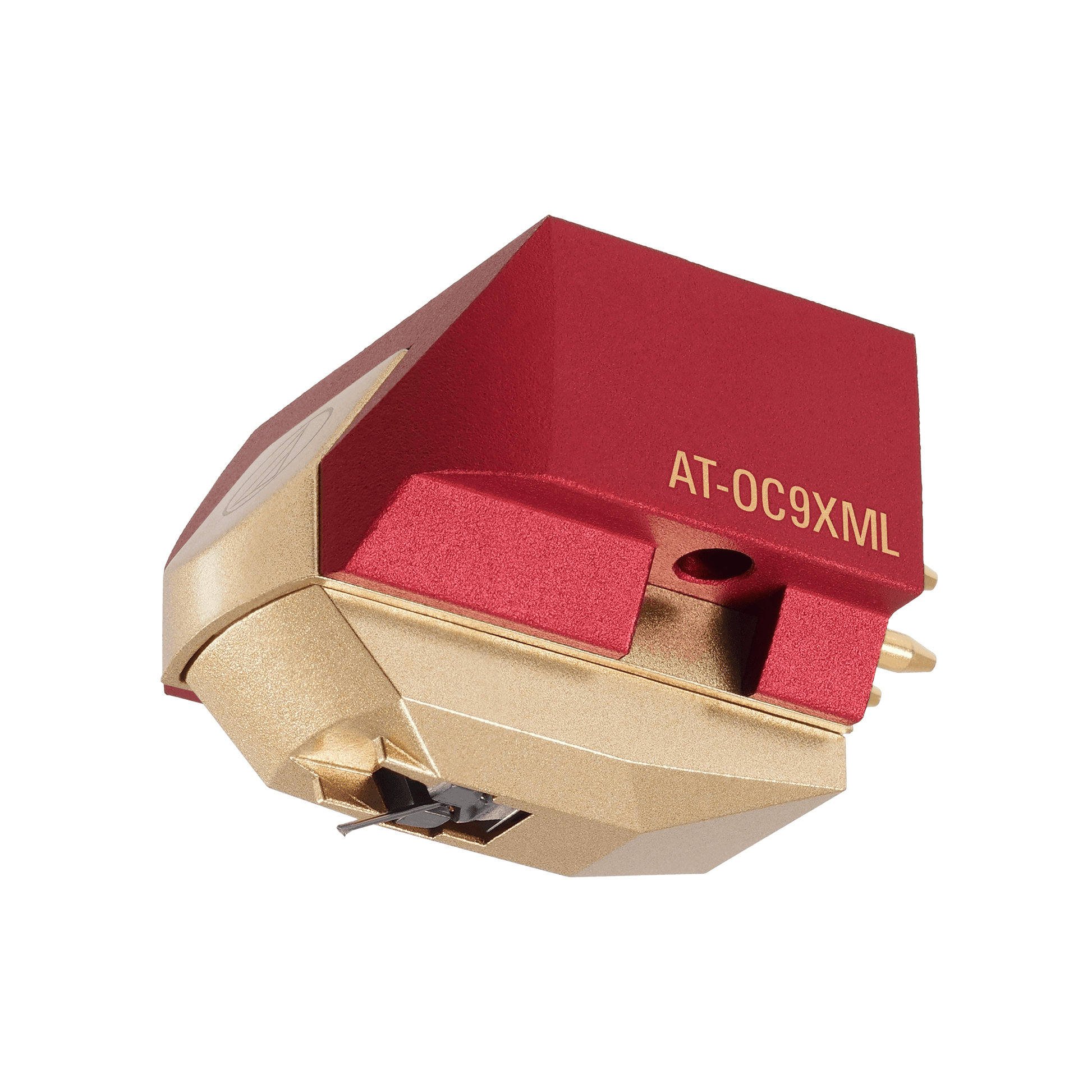

Audio-Technica AT-OC9XML: Dual Moving Coil Stereo Cartridge with Microlinear Stylus

The Audio-Technica AT-OC9XML is a high-end model in the OC9X series, featuring a Microlinear stylus mounted on a boron cantilever. This combination provides exceptional tracking ability and extended frequency response, capturing fine details in the audio signal. The cartridge's rigid aluminum body reduces resonance, while the neodymium magnet and permendur yoke increase magnetic energy for enhanced performance.

Key Features:

• Microlinear Stylus: Offers precise tracking and captures fine audio details.
• Boron Cantilever: Provides superior rigidity and accurate stylus movement.
• Rigid Aluminum Body: Minimizes unwanted vibrations for superior audio reproduction.
• Neodymium Magnet and Permendur Yoke: Increase magnetic energy for improved sound quality.
• Pure Copper by Ohno Continuous Casting (PCOCC) Coils: Ensure pure audio transmission.

Technical Specifications:

• Frequency Response: 20 – 40,000 Hz
• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec.)
• Channel Separation: 30 dB (1 kHz)
• Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Impedance: 12 ohms
• Weight: 7.6 g

The AT-OC9XML is ideal for audiophiles seeking high-fidelity sound reproduction with minimal distortion.

Read more on Audio-Technica’s official website.
