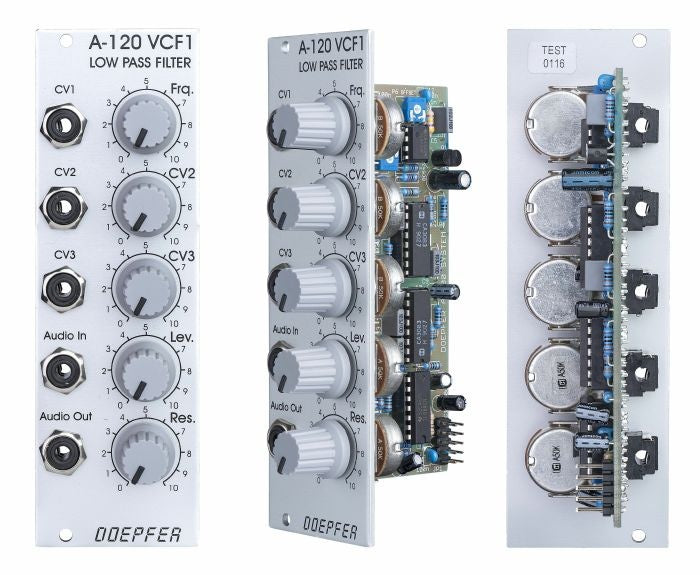

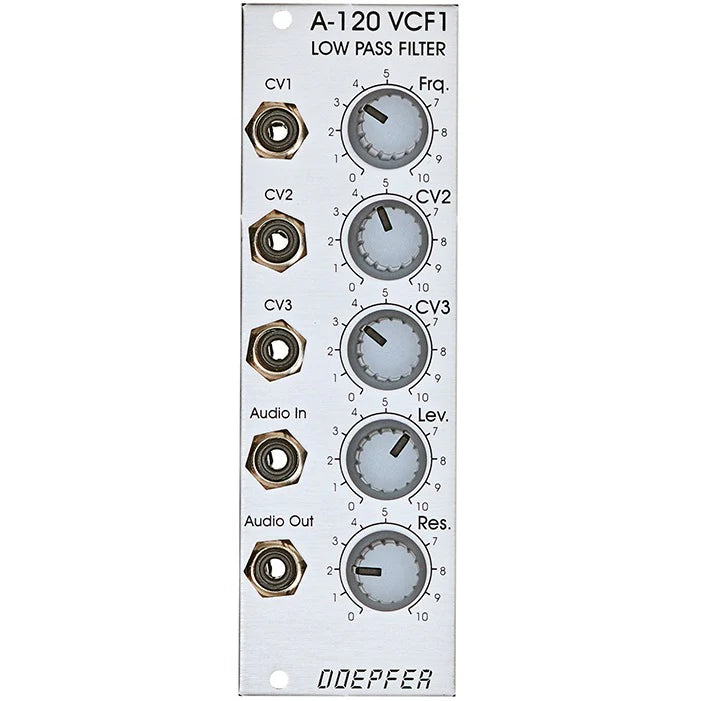

Doepfer A-120 24dB Low Pass Filter – Classic Ladder Sound for Your Eurorack

The A-120 is Doepfer’s take on the legendary Moog ladder filter, delivering the classic 24dB/oct low-pass response with a rich, warm character. It's a must-have for anyone exploring subtractive synthesis in the modular world. Both cutoff frequency and resonance can be modulated via control voltage.

Key Features:

• 24dB/oct analog low-pass filter

• Based on the Moog ladder design

• CV-controllable cutoff and resonance

• Warm and full sound ideal for subtractive synthesis

• Suitable for bass, leads, pads, and classic filter sweeps

Technical Specifications:

• Width: 8 HP

• Power: +12V (approx. 30mA), -12V (approx. 20mA)

• Inputs: Audio In, CV In (cutoff), CV In (resonance)

• Output: Audio Out

• Color: Silver
