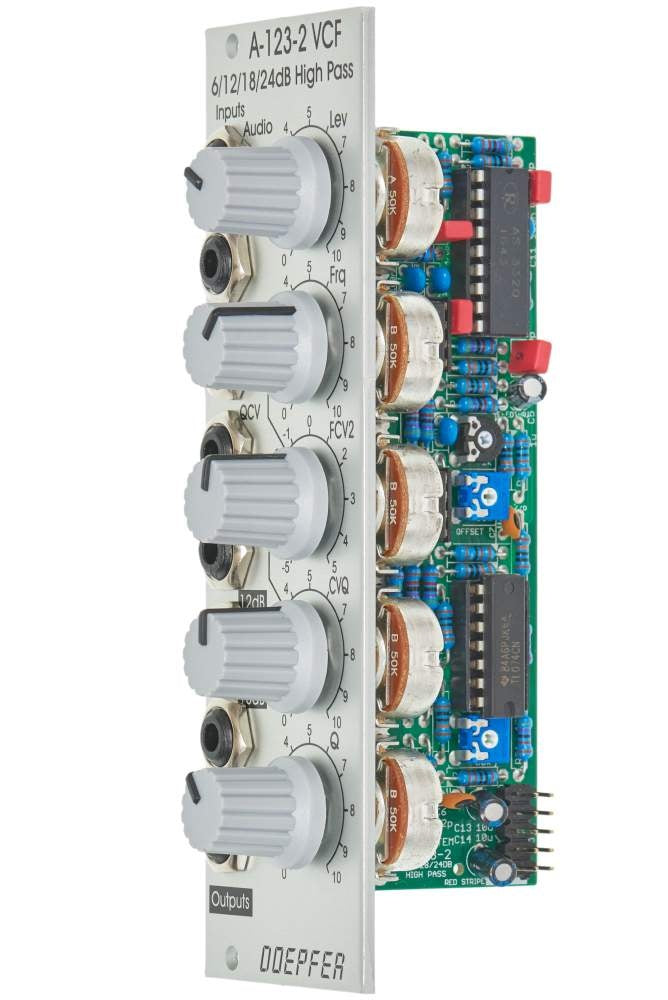

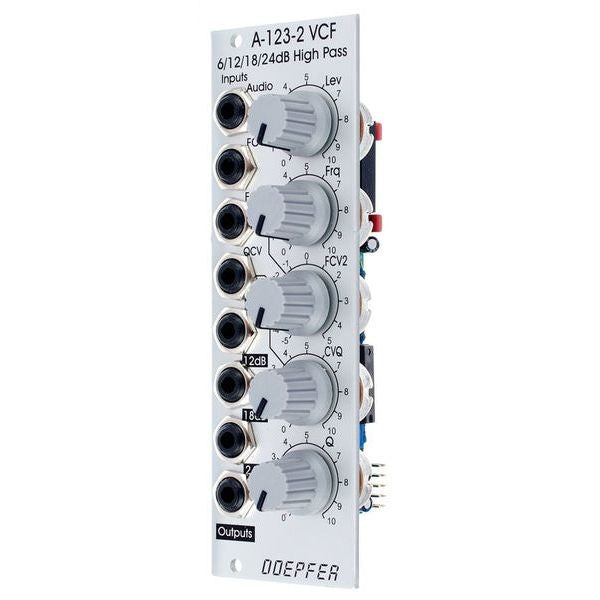

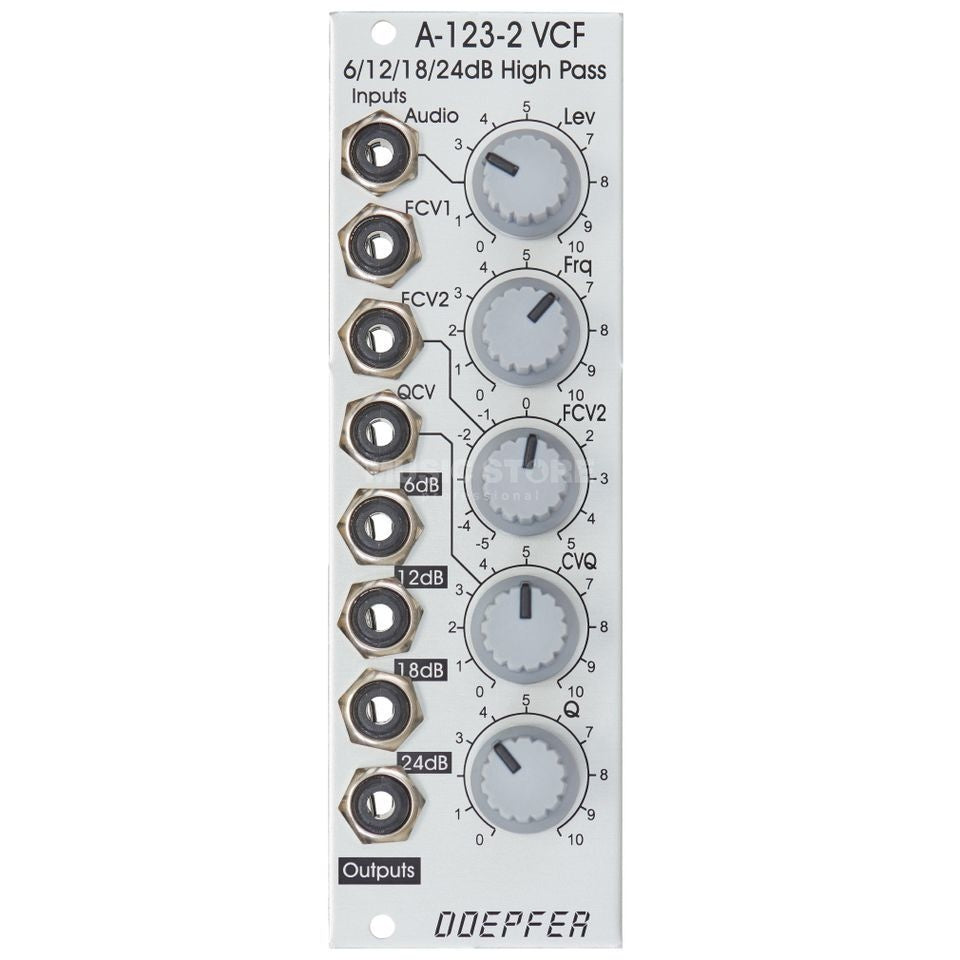

Doepfer A-123-2 6/12/18/24dB Highpass Filter – Flexible Analog Filter for Eurorack
The Doepfer A-123-2 is a highly flexible analog highpass filter offering switchable slopes of 6, 12, 18, and 24dB per octave. Designed for in-depth tonal shaping and modulation, it includes multiple CV and audio inputs and features resonance control up to self-oscillation. Ideal for any modular setup.
Key Features:
-
Analog highpass filter
-
Selectable slope: 6/12/18/24dB
-
Resonance adjustable up to self-oscillation
-
Multiple CV and audio inputs
-
Compact, space-efficient design
Technical Specifications:
-
Width: 8 HP
-
Power: +12V (approx. 40mA), -12V (approx. 30mA)
-
Inputs: 2x Audio In, 3x CV In
-
Output: 1x Audio Out
-
Color: Silver
