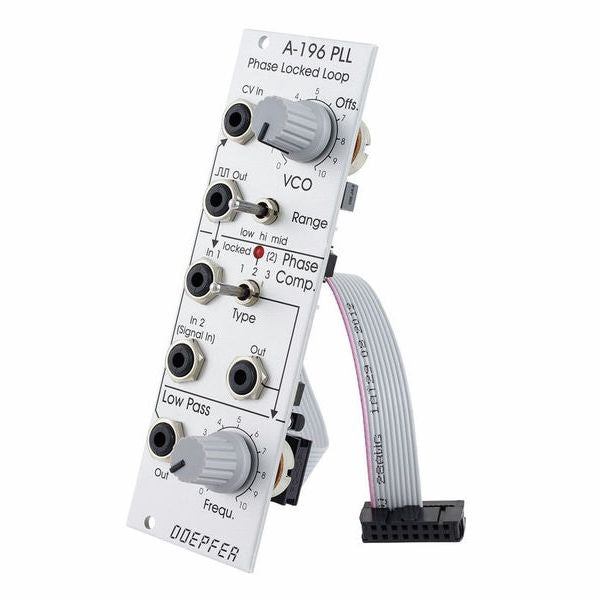

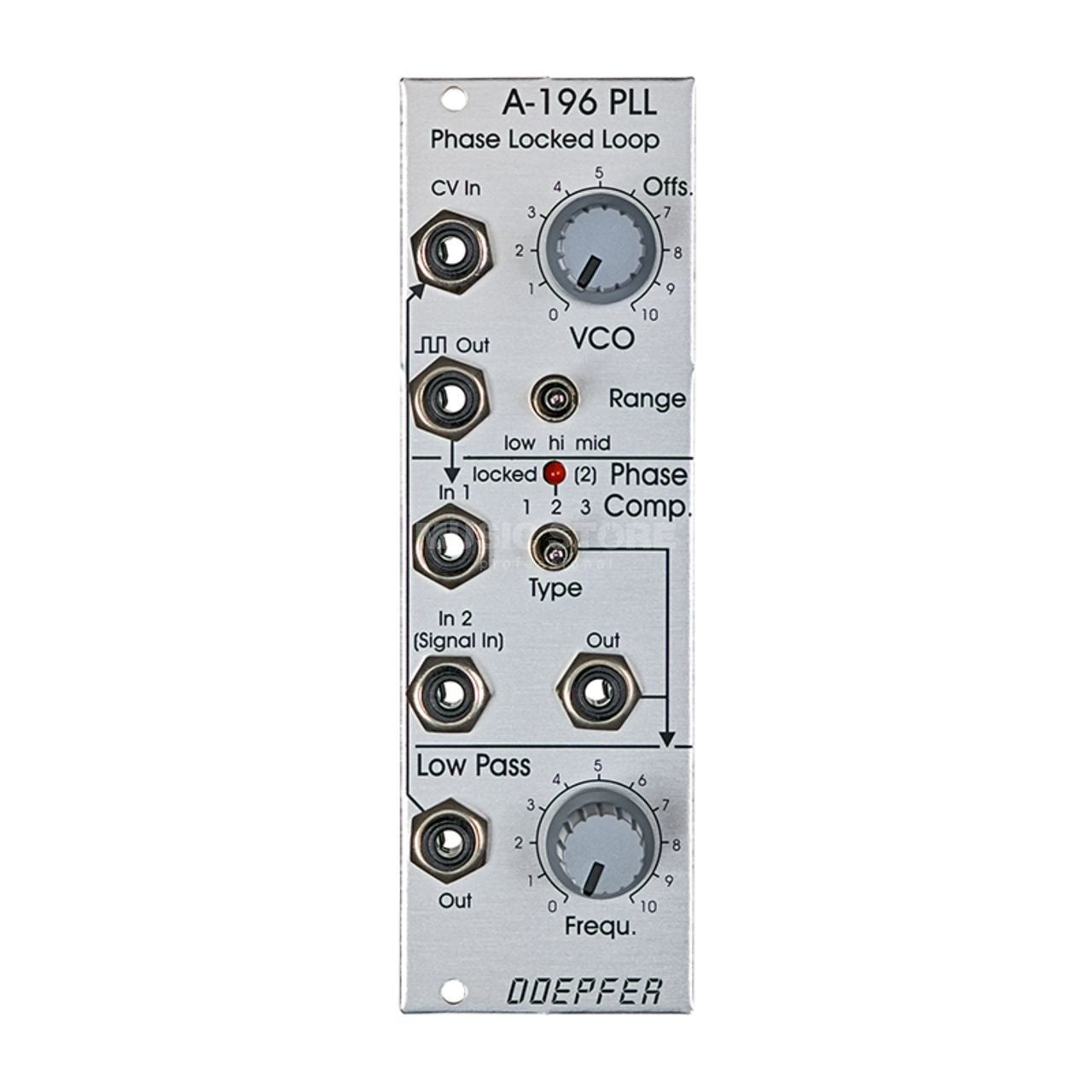

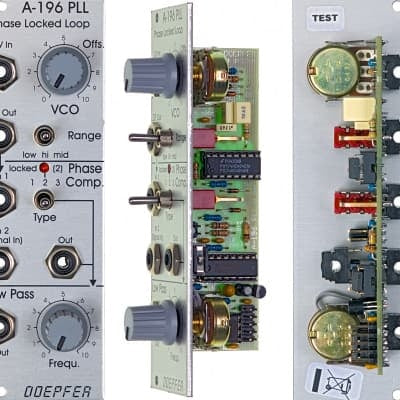

Doepfer A-196 Phase Locked Loop (PLL): Experimental Frequency Tracking and Modulation
The Doepfer A-196 is a unique Phase Locked Loop module designed to track and lock onto external frequencies using an XOR phase comparator, low-pass filter, and internal VCO. It’s capable of creating wild, unpredictable modulations and synchronized audio effects — ideal for adventurous sound design.
Key Features:
-
Built-in PLL circuit with XOR comparator, filter, and VCO
-
Syncs internal oscillator to external frequency input
-
Produces chaotic, glitchy, or harmonically rich modulation
-
CV-controllable parameters for full patching flexibility
-
Perfect for experimental, noise, and feedback-based patches
Technical Specifications:
-
Width: 12 HP / Depth: 55 mm
-
Power Consumption: +12V: 40 mA / -12V: 20 mA
-
Weight: Approx. 150g
A powerful modulation and sync tool for creative modular musicians.
