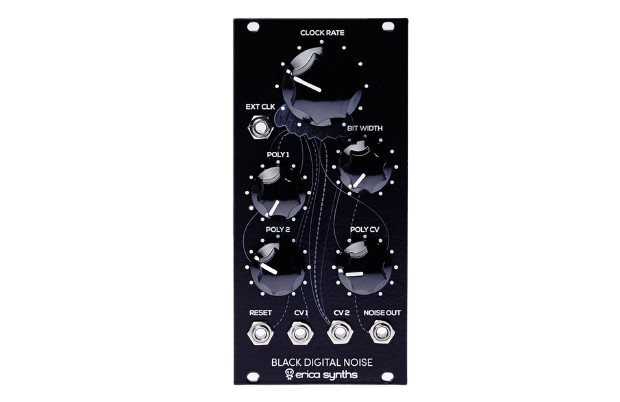

Erica Synths Black Digital Noise Discontinued
Erica Synths Black Digital Noise Discontinued
€167,00
€167,00
Ieskaitot PVN
Pieejamība pēc pieprasījuma
Pieejams pasūtīšanai
Estimated Shipping Widget will be displayed here!
Apraksts / Specifikācija
Apraksts / Specifikācija
The Black Digital Noise is our pathological brainchild. A unique noise module that makes wide range of noise effects; almost pure white noise, Atari console-like one bit noise and other crazy, more or less predictable sounds. At the heart of the module is a programmable logic matrix that includes two linear feedback shift registers that generate polynomial noise effects.
Features
- Wide range of noise effects (pure white noise to 1bit & 4bit vintage computer style noises)
- Two polynomial feedback shift registers with CV control to set noise character
- Adjustable noise frequency
- External clock in - can follow frequency of VCO
- Sync feature - polynomial reset
- Can process audio signals (Even voice!)
- Inputs/outputs are protected against over-voltage
- Diode protection on reversed power supply
Similar noise generation scheme was used in several classical drum machines, and technology comes from techniques used in data scrambling.
Technical specifications:
| Output signal amplitude | -5 - +5 V |
| Noise bit-width | 1bit - 4 bits |
| CV level | -10V - + 10 V |
| Power consumption | +93mA, -25mA |
| Module width | 10 HP |
| Module depth | 25 mm |
