Features
- Manually and CV controlled tune
- Decay control
- Manual trigger
- Accent input
- Module width - 6HP
- Module depth – 35mm

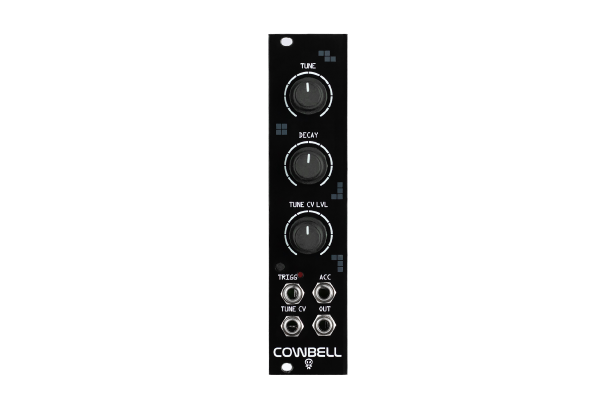

Erica Synths Cowbell
Erica Synths Cowbell
€99,00
€99,00
Ieskaitot PVN
Pieejamība pēc pieprasījuma
Pieejams pasūtīšanai
Estimated Shipping Widget will be displayed here!
Apraksts / Specifikācija
Apraksts / Specifikācija
Features
- Manually and CV controlled tune
- Decay control
- Manual trigger
- Accent input
- Module width - 6HP
- Module depth – 35mm
The module is developed in collaboration with the French company e-licktronic.
Technical specifications:
| Decay range | 120ms - 1100ms |
| Audio output level | -5...+5V |
| CV level (full span) | -5V - +5V |
| Trigger level | 5V |
| Trigger time | 1ms |
| Accent CV level | 10V |
| Power consumption |
14mA@+12V 10mA@-12V |
| Module width | 6 HP |
| Module depth | 40 mm |
