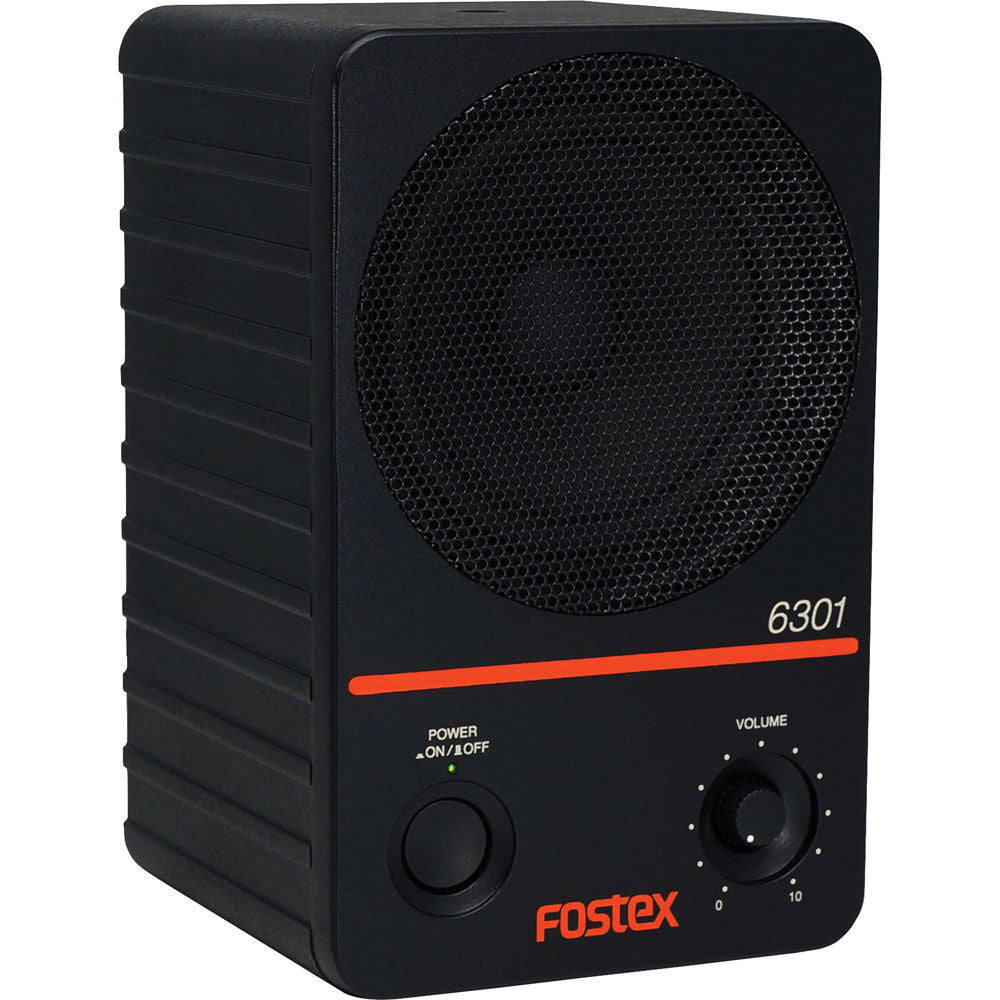

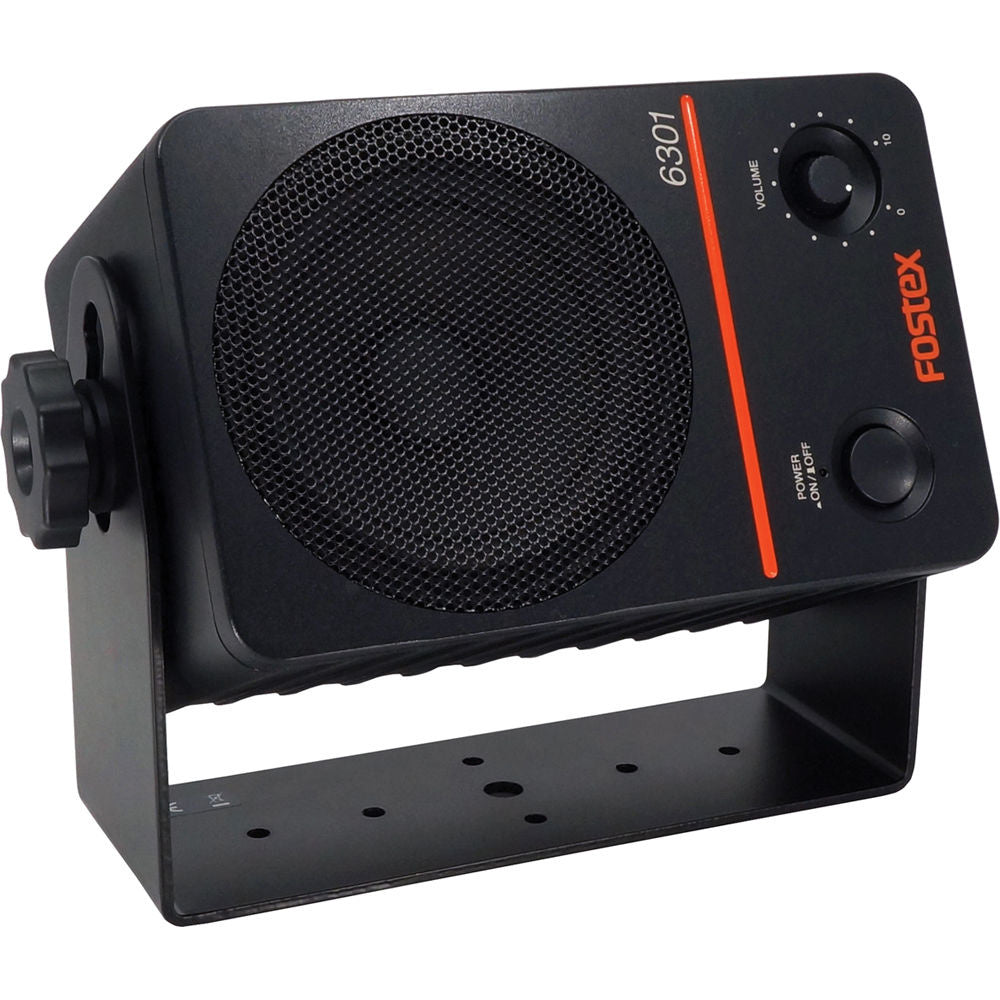

Compact Studio Monitor with Digital and Analog Inputs
The Fostex 6301ND is a rugged, compact active monitor designed for professional mobile, project, and home studios. Equipped with a 4" full-range driver and a 20W Class-D amplifier, it delivers balanced, clear sound across 70 Hz to 15 kHz.

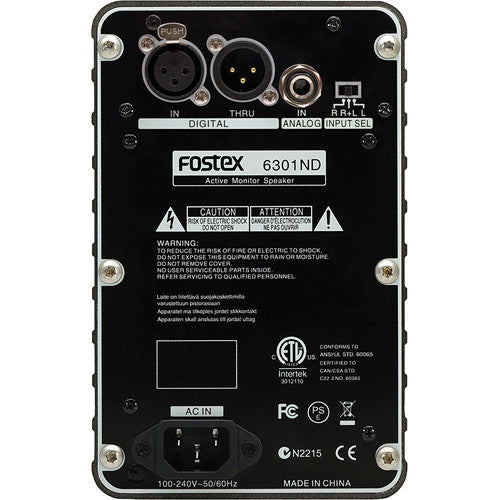

It features both a 1/4" unbalanced analog input and a digital AES/EBU XLR input, plus a digital thru connector to chain multiple units seamlessly. An input selector switch allows you to choose left, right, or both channels per speaker.

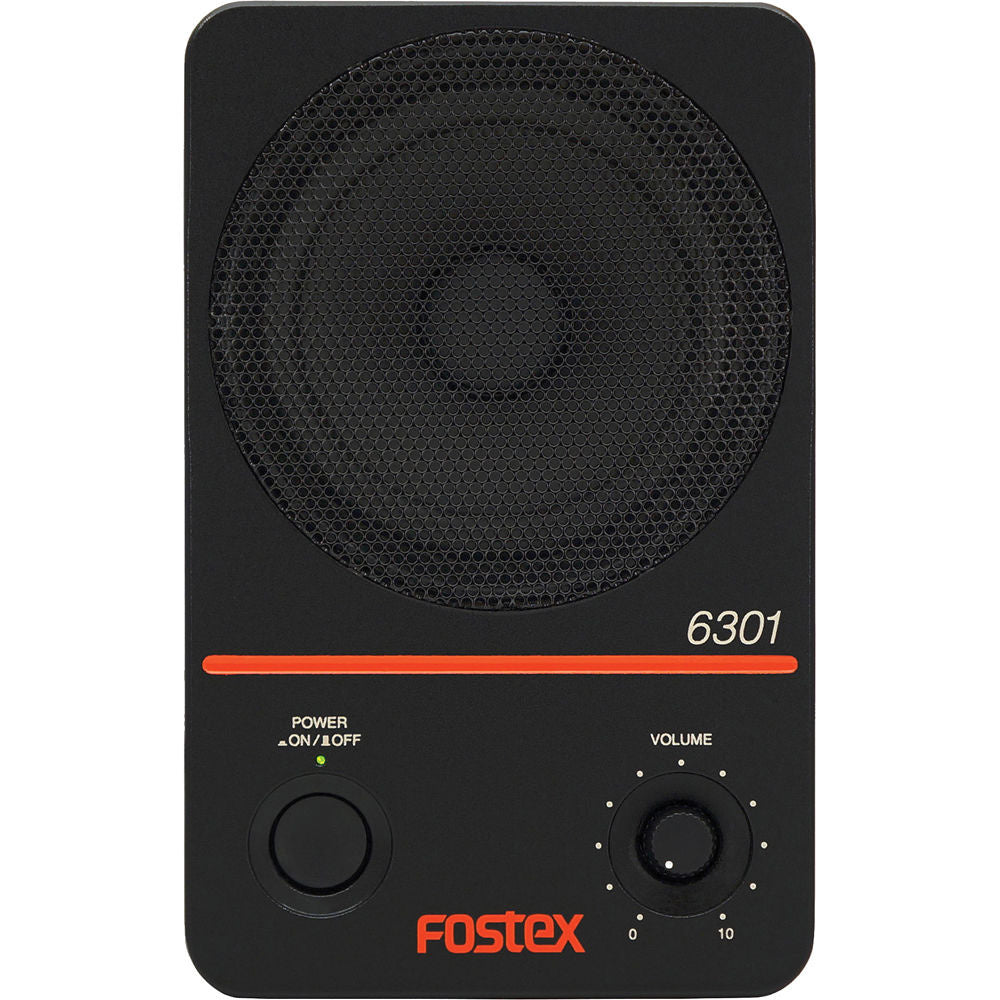

The front panel includes a power switch and rotary volume control for quick adjustments. Built-in protection circuitry safeguards against overloads and short circuits. The die-cast aluminum enclosure is durable enough for demanding professional use. Magnetically shielded for safe placement near screens, it also features a multi-voltage power supply and an Auto Standby Mode to reduce power consumption to 0.5W after 25 minutes of inactivity.
Key Features
-
Compact design with a 4" full-range driver
-
Powerful 20W Class-D amplifier
-
Analog 1/4" TS and digital AES/EBU XLR inputs
-
Digital AES/EBU thru output for chaining
-
Input selector switch for left, right, or left+right
-
Front panel power switch and rotary volume control
-
Protection circuitry prevents overload and short circuits
-
Magnetically shielded for video monitor safety
-
Multi-voltage power supply for worldwide use
-
Auto Standby Mode reduces power use after 25 minutes
Technical Specifications
-
Amplifier: 20W Class-D
-
Driver: 4" / 102 mm full-range cone
-
Frequency Response: 70 Hz – 15 kHz
-
Max SPL: 98 dB
-
Analog Input: 1/4" TS unbalanced, 10 kOhms
-
Digital Input: AES/EBU XLR (44.1 – 96 kHz sampling)
-
Digital Output: AES/EBU thru XLR
-
THD: 0.05% (1 kHz, 1W)
-
Enclosure: Aluminum die-cast
-
Power Consumption: 10W (0.5W standby)
-
Dimensions (H x W x D): 189 x 120 x 120 mm
-
Weight: 2.2 kg
Applications
-
Mobile and project studios
-
Home studios
-
Digital and analog mixing environments
-
Video post-production
-
Broadcast setups
