Compact Powered Studio Monitor with Transformer Balanced XLR Input
The Fostex 6301NX is a compact, rugged active monitor tailored for professional mobile, project, and home studios. It features a 4" full-range driver driven by an integrated 20W Class-D amplifier, delivering clear and balanced sound from 70 Hz to 15 kHz.
Connectivity includes a transformer balanced XLR input and a 1/4" unbalanced connector, ensuring versatile use in various studio setups. The front panel is equipped with a power switch and a rotary volume control for convenient adjustments.
Built to endure professional use, the die-cast aluminum enclosure is durable and magnetically shielded for safe placement near video monitors. Protection circuitry safeguards against overloads and short circuits. The multi-voltage power supply supports global compatibility, and Auto Standby Mode reduces power consumption to 0.5W after 25 minutes of inactivity.
Key Features
-

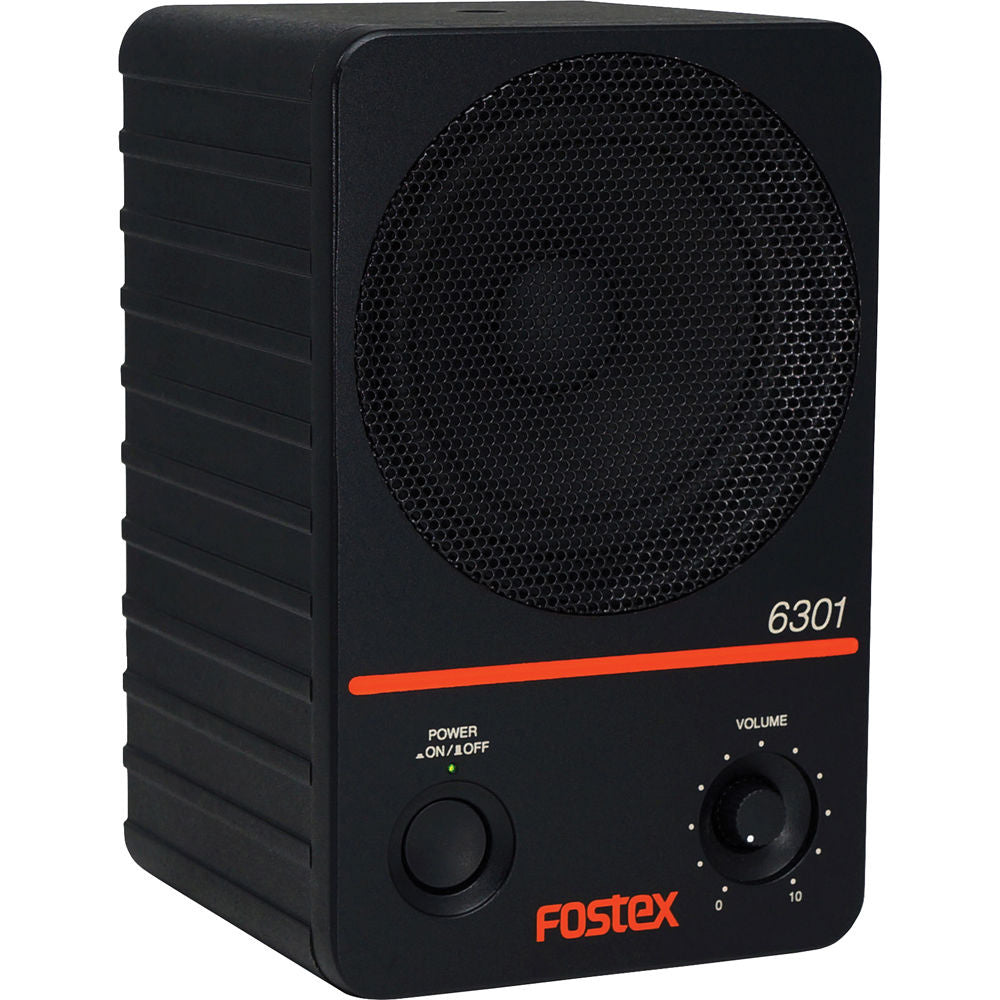

Compact die-cast aluminum design
-
4" full-range driver
-
20W Class-D amplifier
-

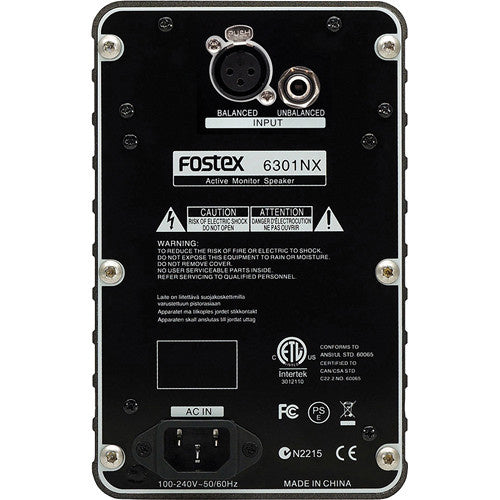

Transformer balanced XLR input
-
1/4" unbalanced input
-

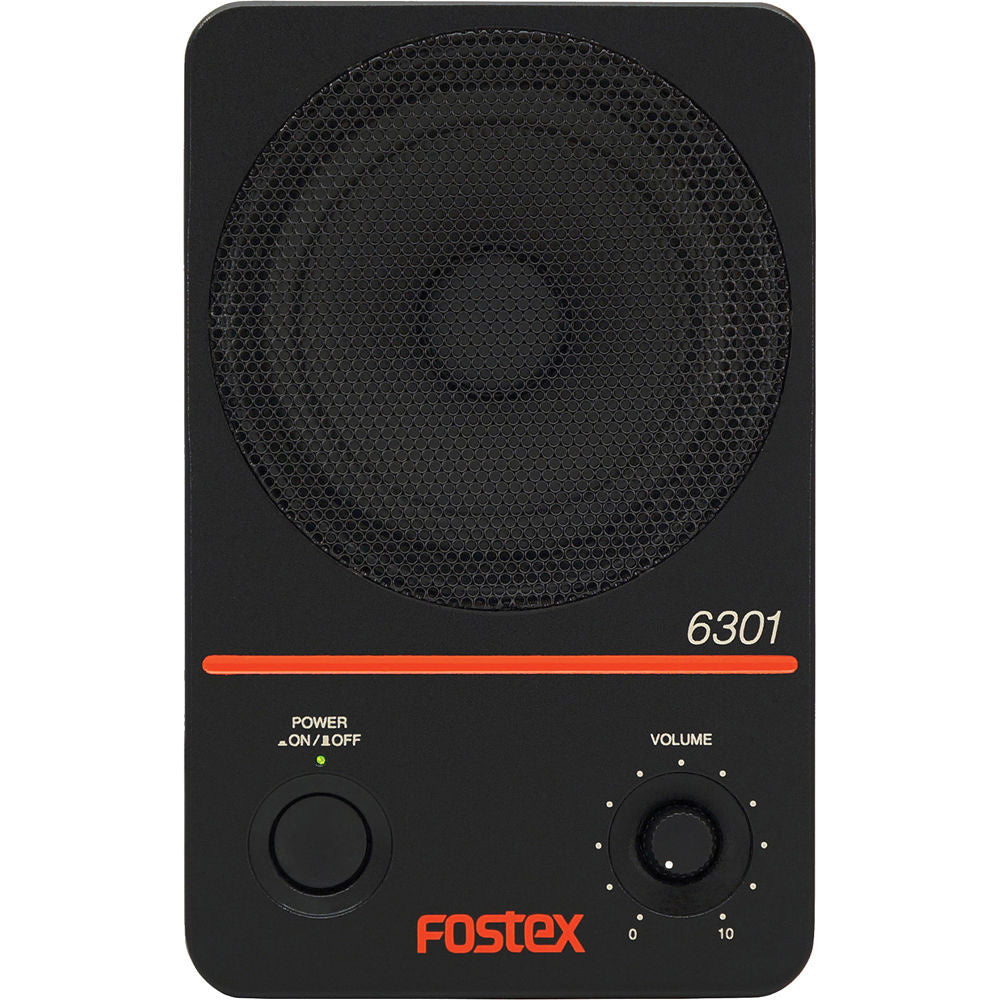

Front-panel power switch and rotary volume control
-
Protection circuitry against overload and short circuits
-
Magnetically shielded for video monitor safety
-
Multi-voltage power supply
-
Auto Standby Mode lowers power to 0.5W after 25 minutes
Technical Specifications
-
Amplifier: 20W Class-D
-
Driver: 4" / 102 mm full-range cone
-
Frequency Range: 70 Hz – 15 kHz
-
Max SPL: 98 dB
-
Input Impedance: ≥10 kOhms
-
Input Sensitivity: -14 dBV (unbalanced), +4 dBu (balanced)
-
THD: 0.05% (1 kHz, 1W)
-
Enclosure: Aluminum die-cast
-
Power Consumption: 10W (0.5W standby)
-
Dimensions (H x W x D): 189 x 120 x 120 mm
-
Weight: 2.2 kg
Applications
-
Mobile and project studios
-
Home studios
-
Analog and digital mixing environments
-
Video post-production
-
Broadcast
