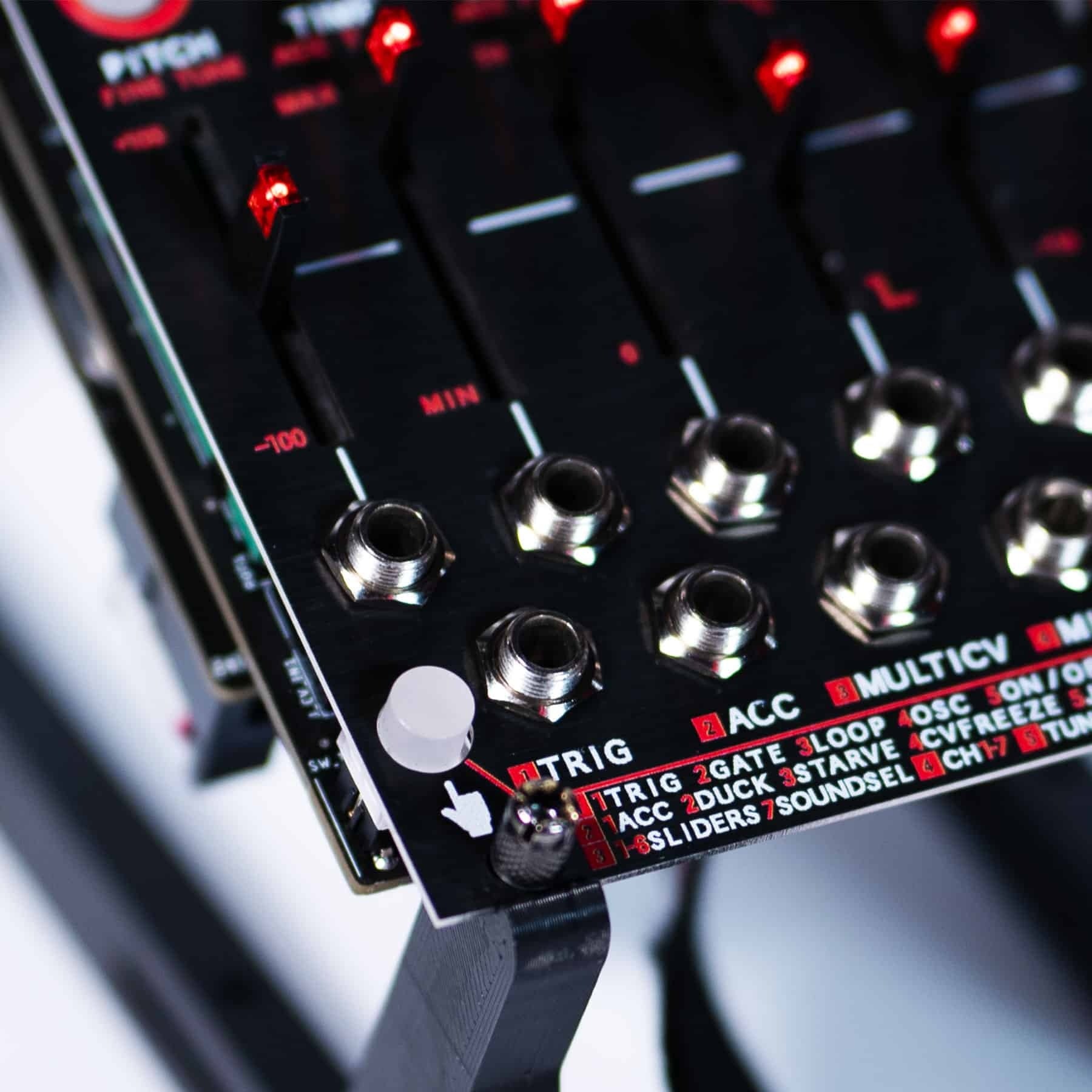

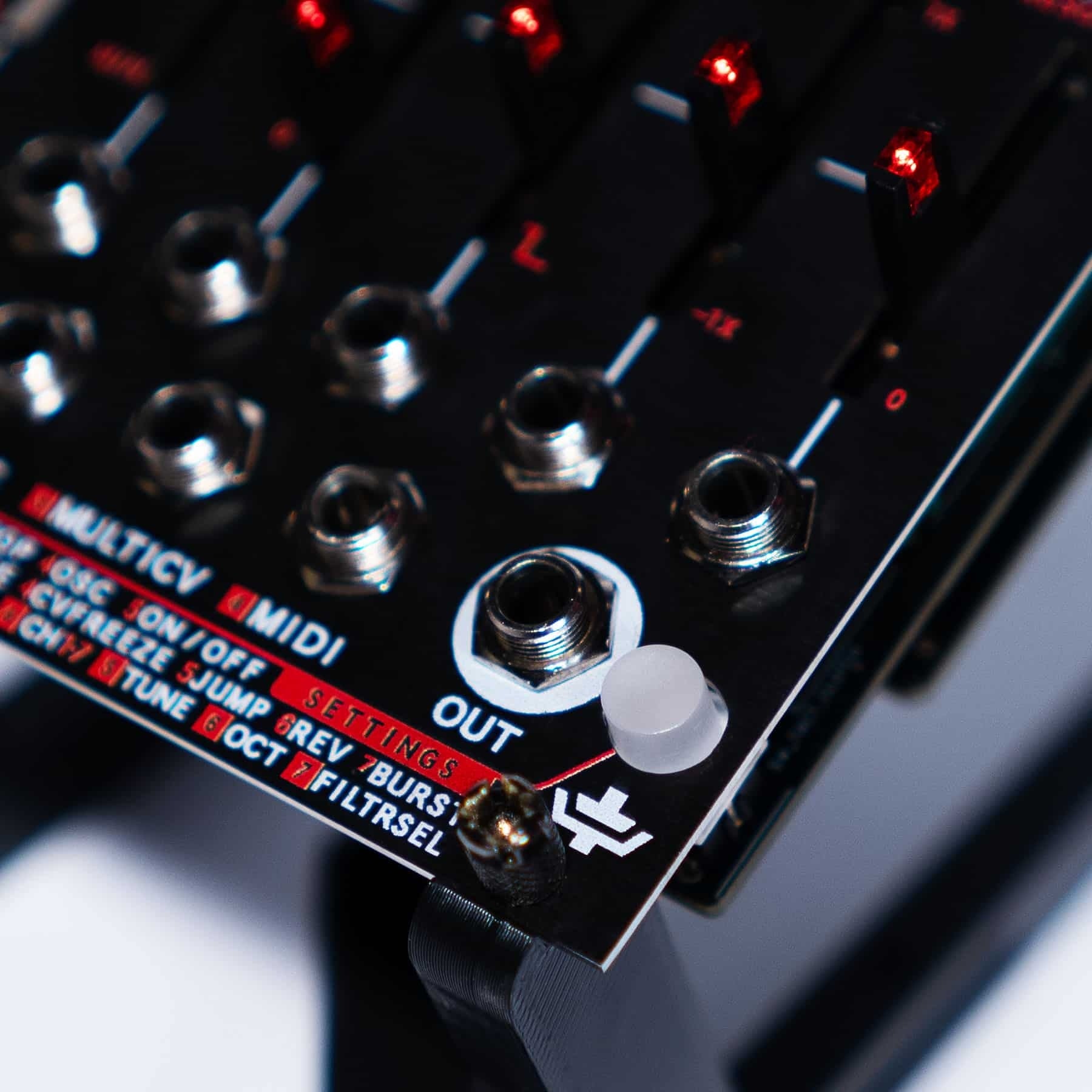

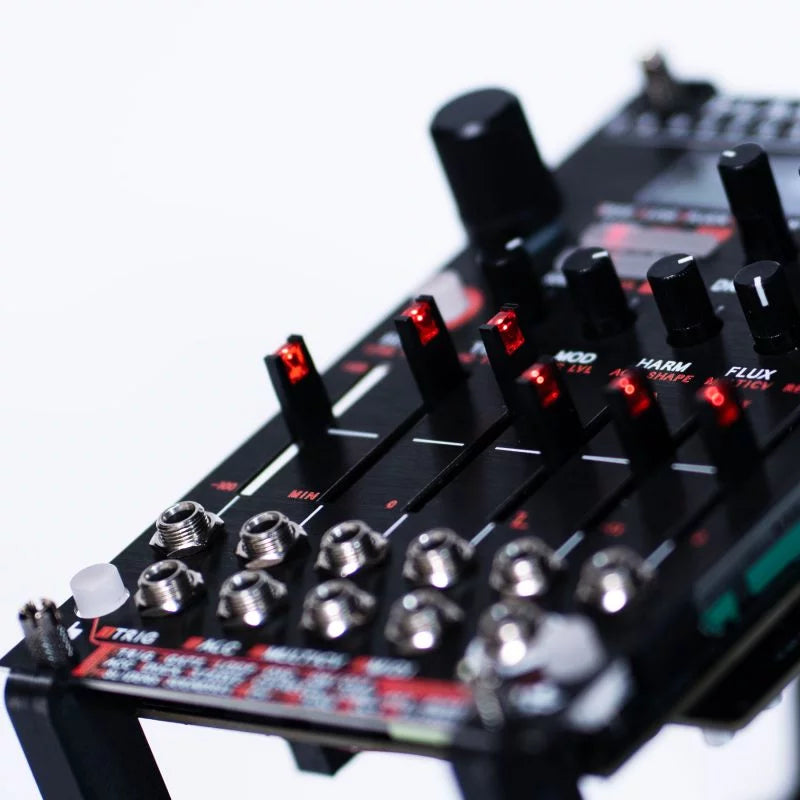

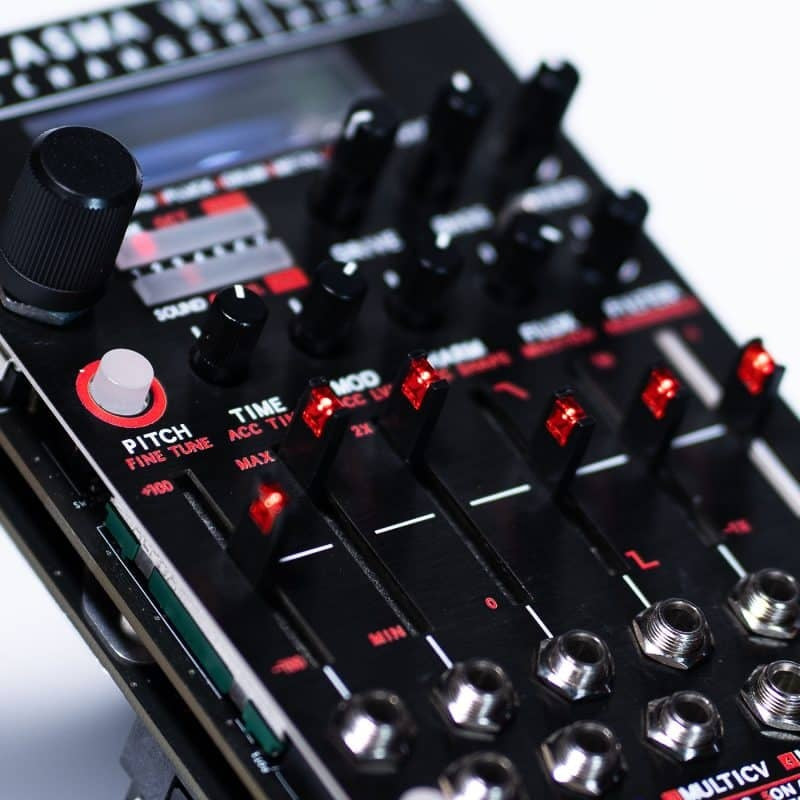

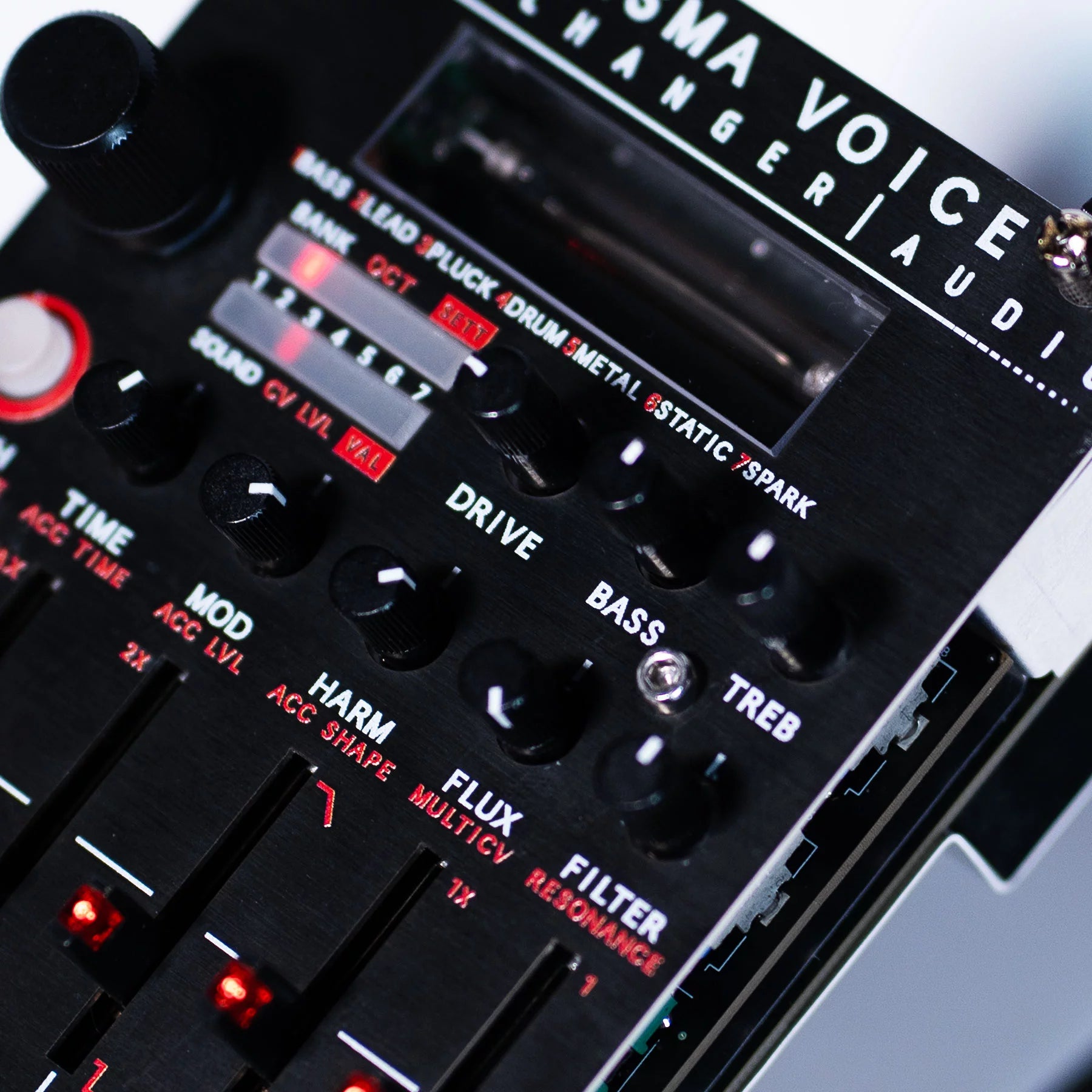

Gamechanger Audio Plasma Voice
Gamechanger Audio Plasma Voice
Pieejams pasūtīšanai
Estimated Shipping Widget will be displayed here!
Apraksts / Specifikācija
Apraksts / Specifikācija

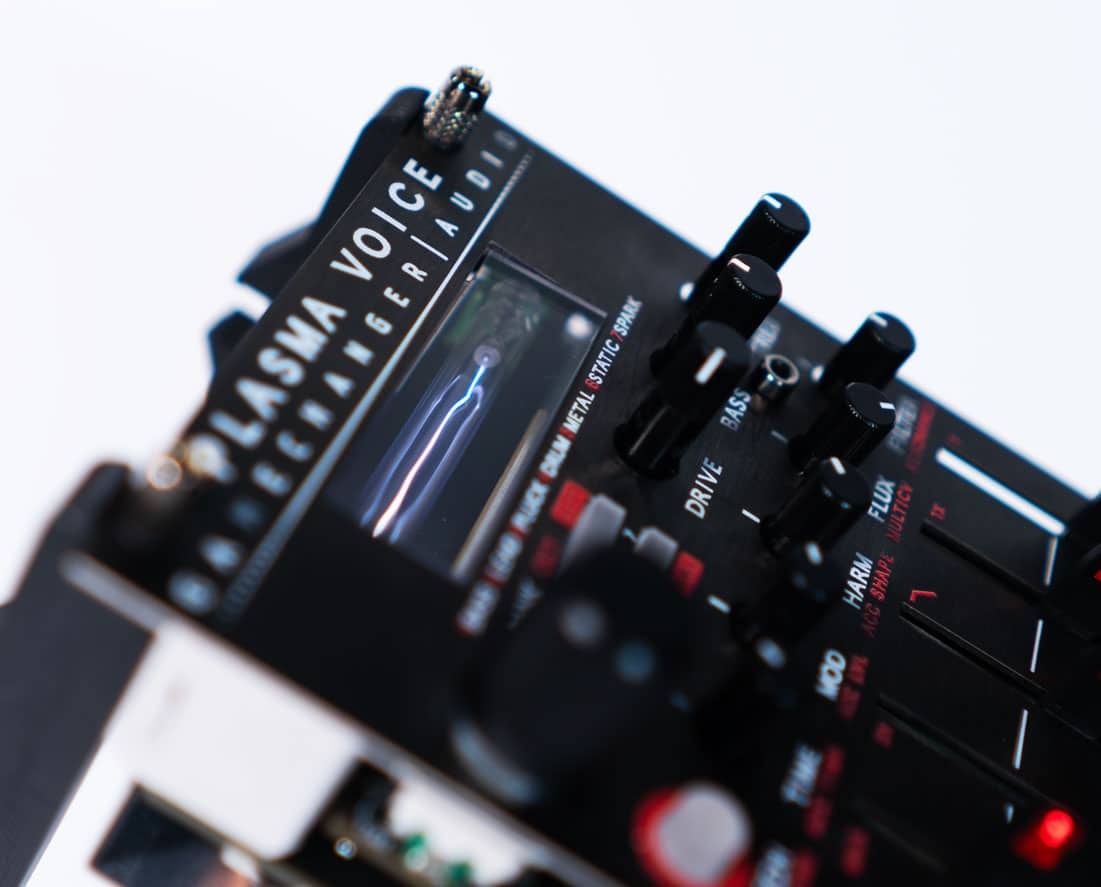

HOW IT WORKS

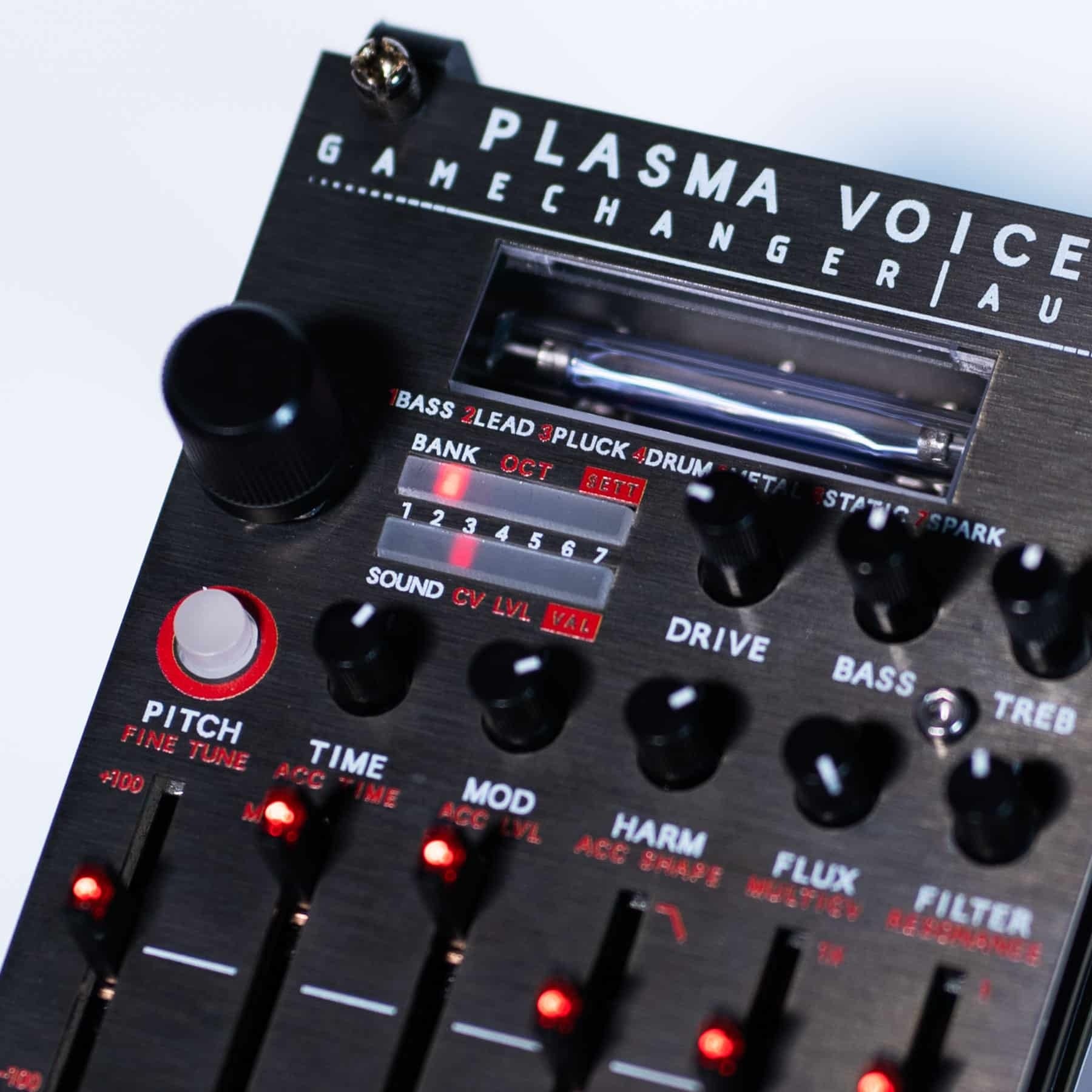

PLASMA Voice is a synthesizer module that generates sounds through the manipulation of high-voltage electrical discharges between two electrodes on a specially designed xenon-filled gas tube.
These discharges are converted to analog audio using a specialized rectifier circuit. The result is a mesmerizing electric sound that matches the visual intensity of the blue bolt of electricity.
The electric discharges are driven by a proprietary ultrasound pulse-width oscillator.
This oscillator is modulated by predefined samples and envelope shapes (or SOUNDS for simplicity’s sake) that you can select, trigger, waveshape and modulate with sliders and CV inputs.

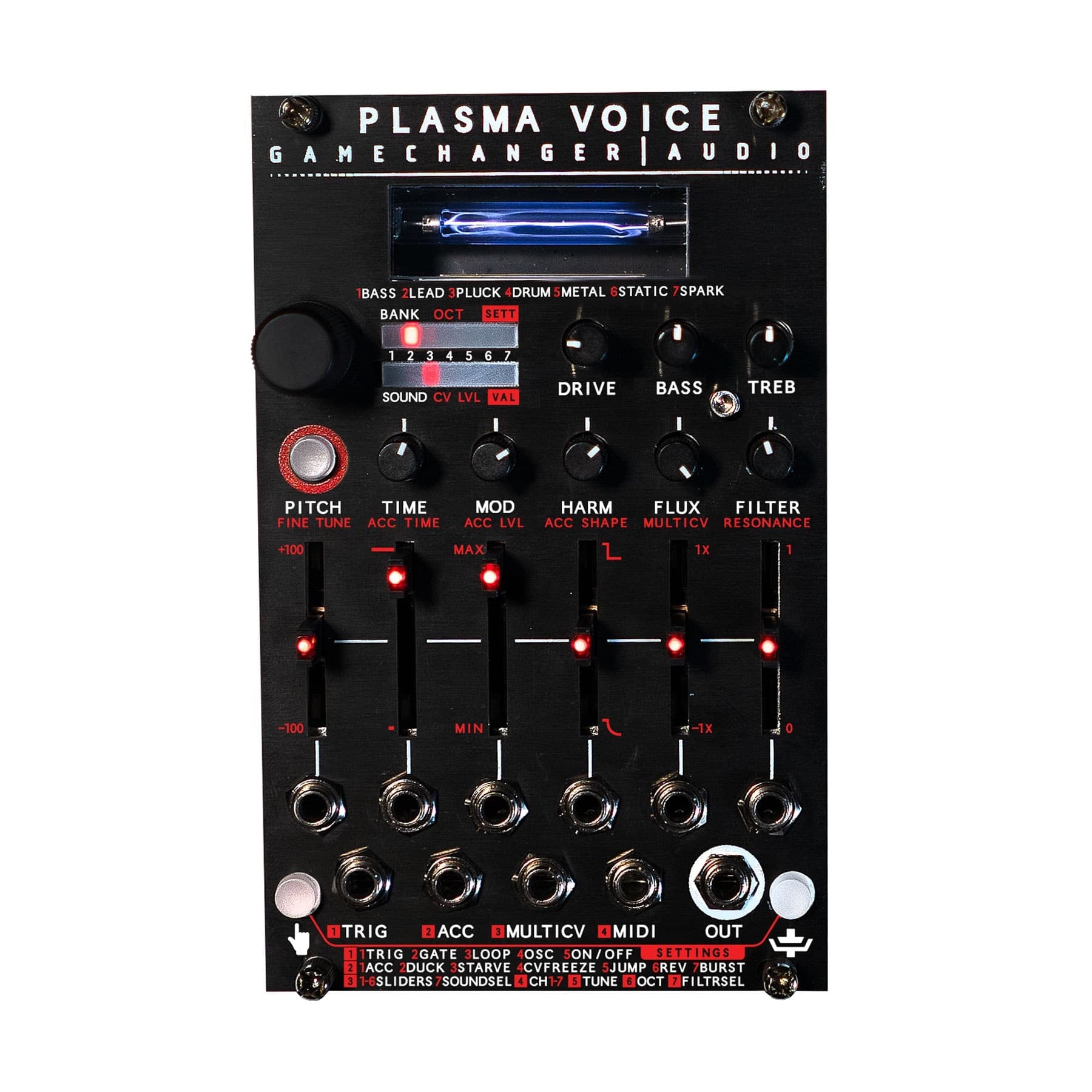

PLASMA VOICE SYNTHESIZER MODULE
FIRST LIMITED BATCH OF 100 UNITS – SIGNED & DELIVERED WITH A SPECIAL DESIGN T-SHIRT
EU: VAT will be added to orders without an EU-VAT number
Intl: All other countries may face customs duties
Two-year warranty
It is powered via a conventional eurorack PSU ribbon cable. Power draw:
+12v: 220 mA
-12v: 35 mA
+5v: 0
Power cable is included in the package.
Manual you can find here: PLASMA VOICE
