The Telefunken ELA M 250/251 was made for Telefunken by AKG after Neumann discontinued its OEM production of the Telefunken U-47. The Golden Age Premier GA-251 MKII is inspired by this truly classic microphone.

The GA-251 MKII shares the same design goal that was set for the GA-47: to offer the classic qualities and advantages that a vintage unit in perfect condition would provide and doing so at a low price point.

The MKII version has the following improvements:

• A new CNC produced base plate made of brass.
• Improved, more even grille
• The inner design is more tidy and stable using a an expensive Rogers circuit board with point-point wiring resulting in an ever more refined sound quality.
• A new metal flight case and black cardboard box

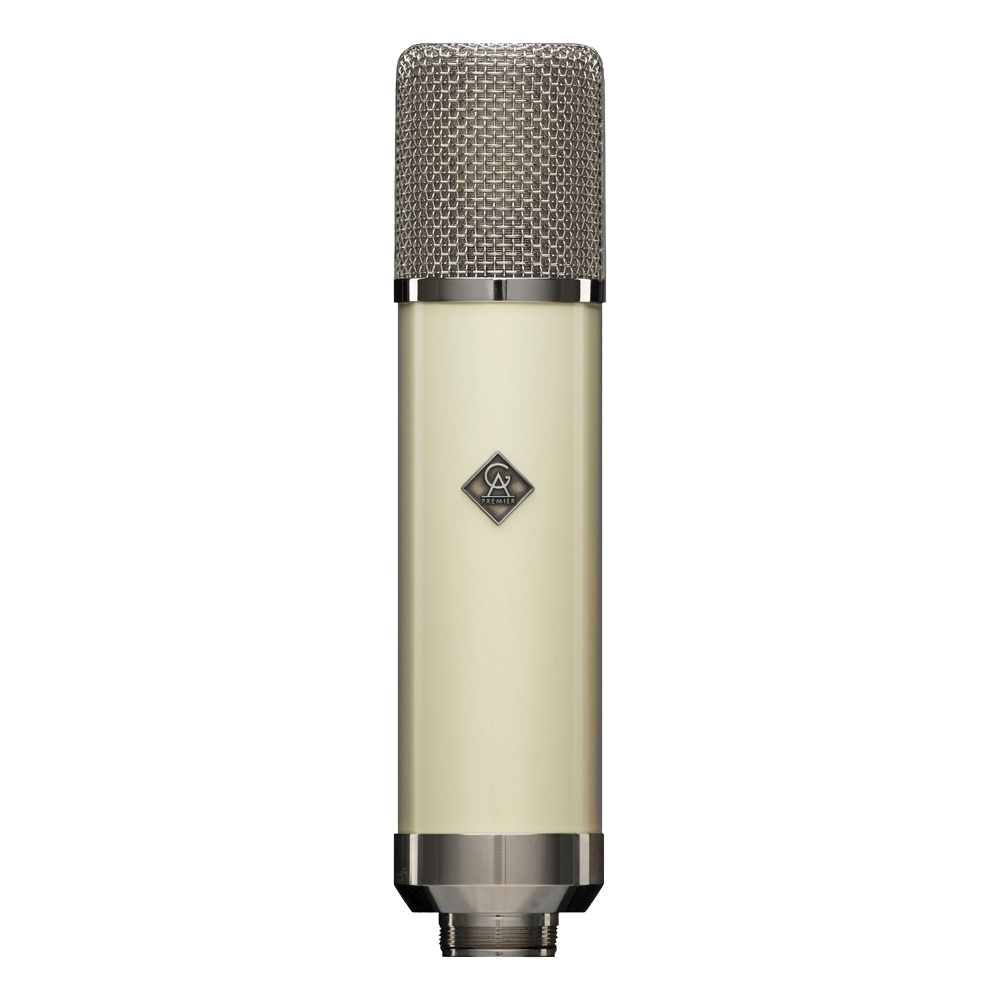

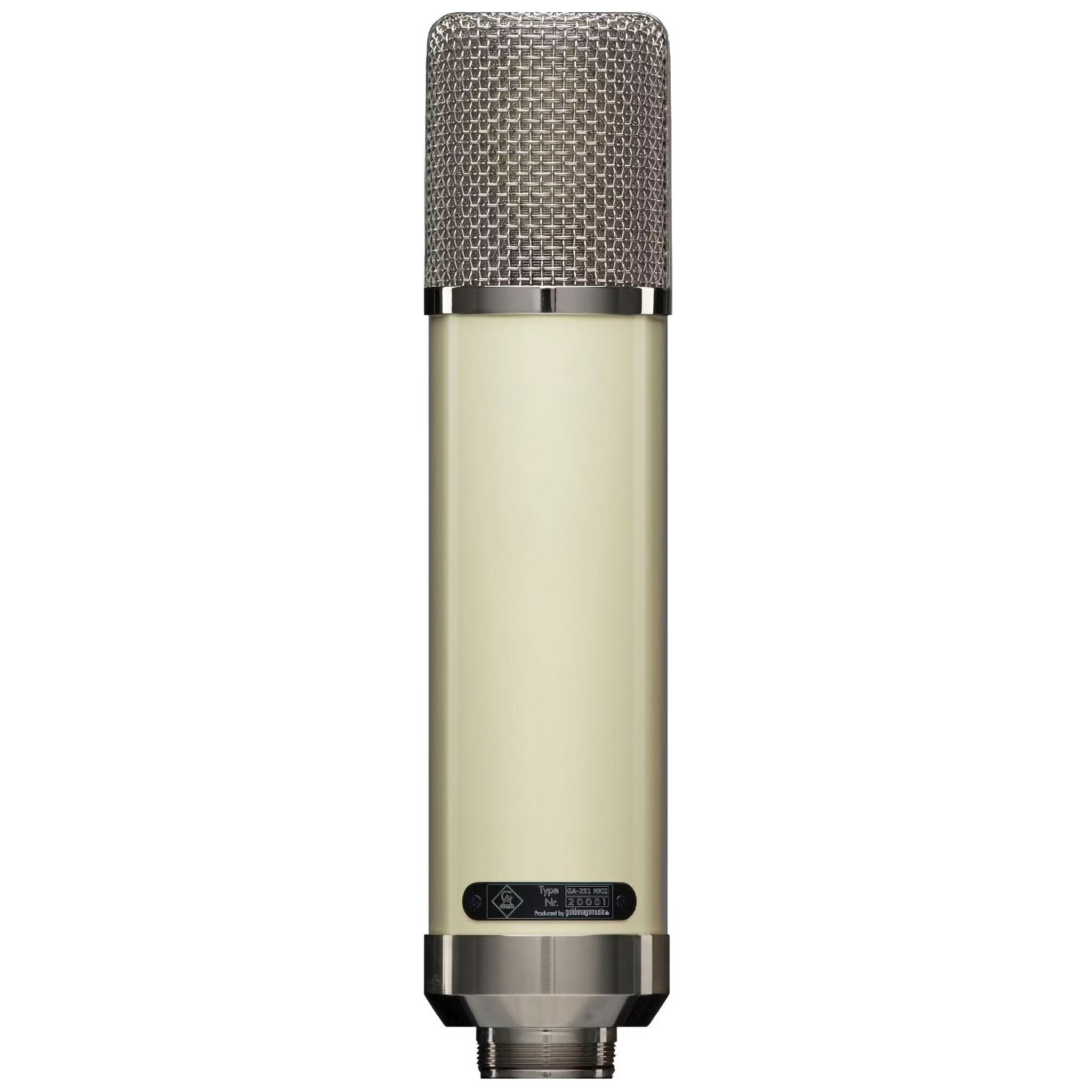

Mic Body and Grille

The mic body is made of brass, the grille is made of iron.
The grille, which is a critical component affecting the sound character, is similar to the one in the ELA M 251.

Capsule

The GA-251 MKII uses a 34 mm K251 style capsule. Being a dual-sided one, it provides both cardioid and omni polar patterns. In order to get a good consistency between units, for each production run of 50 pcs GA-251 MKII units, approximately 200 capsules is evaluated in order to find 50 capsules with specifications that lie within the tight tolerances.

The sensitivity of the front and back side of the capsule do not differ more than 0,3 dB. The sensitivity between different capsules do not differ more than 0,5 dB.

The tight manufacturing tolerance will lead to a very good consistency between different GA-251 MKII units.

The capsule is specially designed to complement the electronic circuit of the GA-251 MKII to achieve a frequency response curve with a nice balance between the high, middle and low frequencies. The result is a very smooth sound with a warm bottom and airy top end just like ELA M 251.

Tube

The GA-251 MKII uses a NOS Phillip 5840W super low noise pentode tube connected in triode mode in order to decrease the noise. The tube has the following character:

• Balanced sound response
• A smooth and warm sound character and a low noise level
• Long lifespan: The GA-251 MKII amplifier features a new proprietary circuit designed around the NOS 5840W tube.

Output Transformer

The GA-251 MKII transformer is specially designed with a 10:1 AMI style dual bobbin transformer. It is made from Permalloy steel sheet from USA and enameled wire from Germany. It offers a wonderful sound character with a high resolution and great balance between the low, middle and high frequency bands.

Capacitors and Resistors

The coupling capacitor is made by Solen from France. It is a high balanced film capacitor made from MKP material with pure oxygen-free copper connections. It has a very delicate and balanced sound.
The capsule capacitor uses NOS Siemens antique grade polystyrene capacitor to reduce loss.

The tube cathode bypass capacitor uses an ELNA OFC Cerafine high end hifi capacitor from Japan with oxygen free copper connections exhibiting a very sweet and delicate character, not the least for vocals. The other capacitors are of the low loss polystyrene type.

The resistor used for setting the capsule voltage is a high quality DALE 1% metal film resistor. The result is a very stable and consistent operating level leading to better consistency between different GA-251 MKII units.

The plate resistor uses a non-inductive resistor of the United States IRC audio with pure copper connections. The sound level is rich and full bodied.

Mic Interior

The electronic circuit is built with point-to point wiring, All soldering points made with Mudorf Msolder Supreme silver gold solder
All of the inside wire use pure silver wire and decrease the loss during the circuit transmission, also it can ensure the sound quality is transparent.

All components which are connected to electrical ground is connected to the ground plane on the circuit board. All other component connections use point to point wiring which results in virtually zero loss and crosstalk.

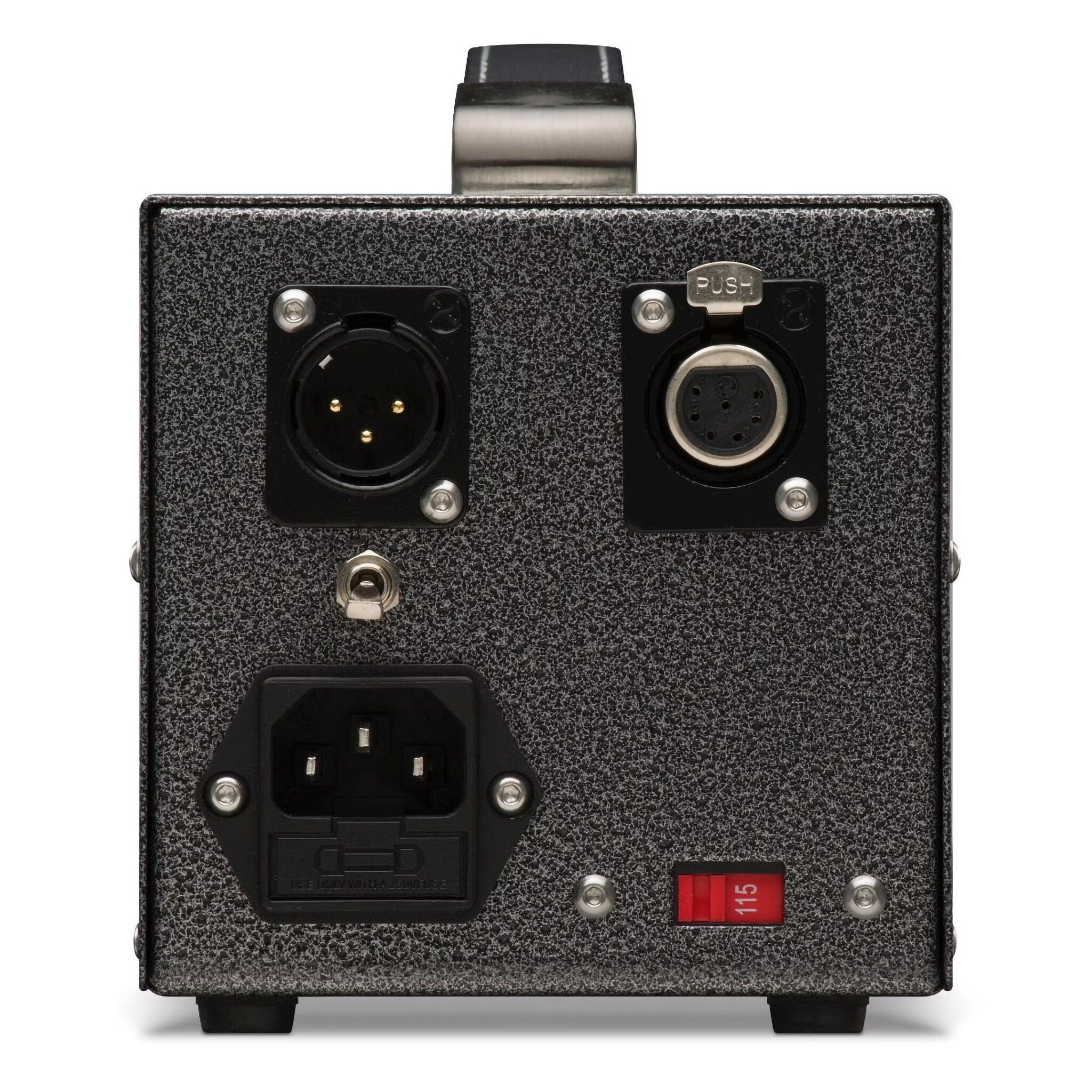

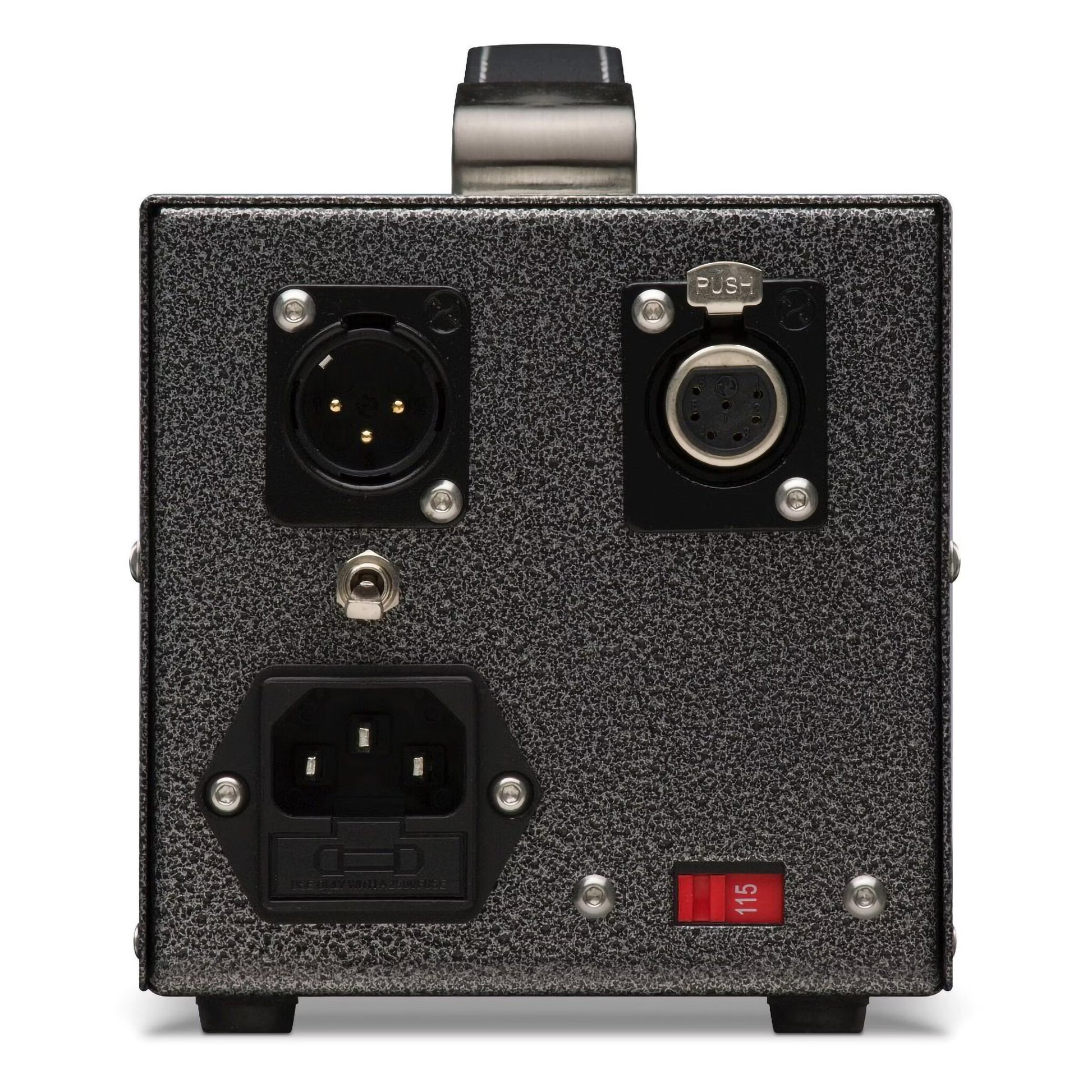

Power Supply Transformer and Electrolytic Capacitors

The vintage style power supply PSU uses a high power R-style transformer with a low noise level and minimum stray field. A simple but effective circuit uses dual-stage filtering for the filament voltage. The High voltage is also precisely filtered and stabilized using an ON semiconductor zener diode.

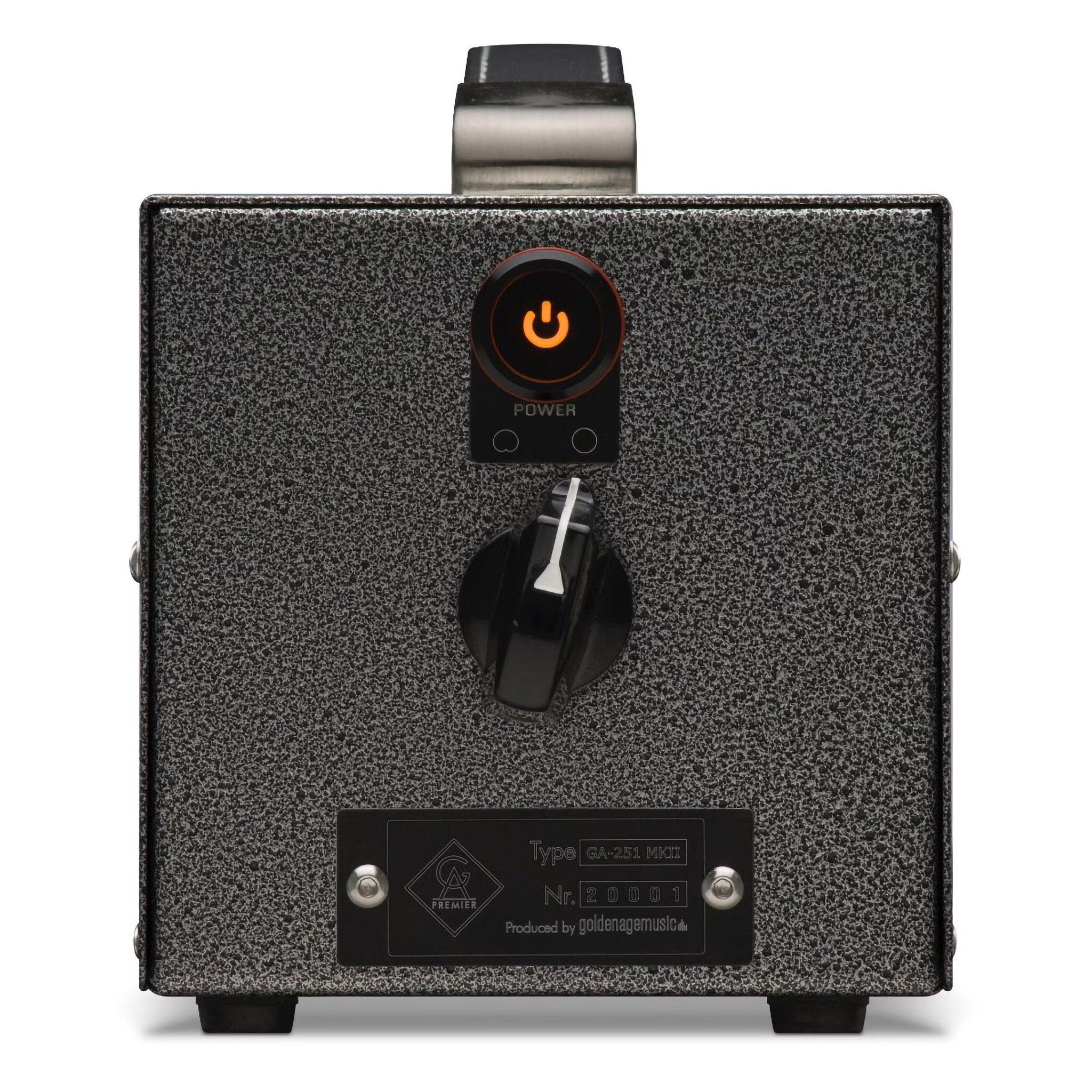

The polar pattern switch is placed on the power supply so that the recording engineer can change the polar pattern between Cardioid and Omni remotely. A ground lift switch will help to solve mains power related noise issues that can appear in some cases

Mic Cable

The cable is specially produced using 99,99% pure oxygen-free copper, Teflon insulation, tin foil and 98% kitmesh, ie with a very high braided density of the cable shield. It has a very open and smooth sound. The mic connector is an aviation style plug providing solid connections and a long life.

Features:

• High End, no compromise components and build quality
• Hand made in small series, 50 units at a time, in a boutique style microphone workshop
• Capsules selected with very tight tolerances
• New Old Stock Phillip 5840W super low noise pentode tube connected in triode mode
• All soldering points made with Mudorf Msolder Supreme Silver Gold solder

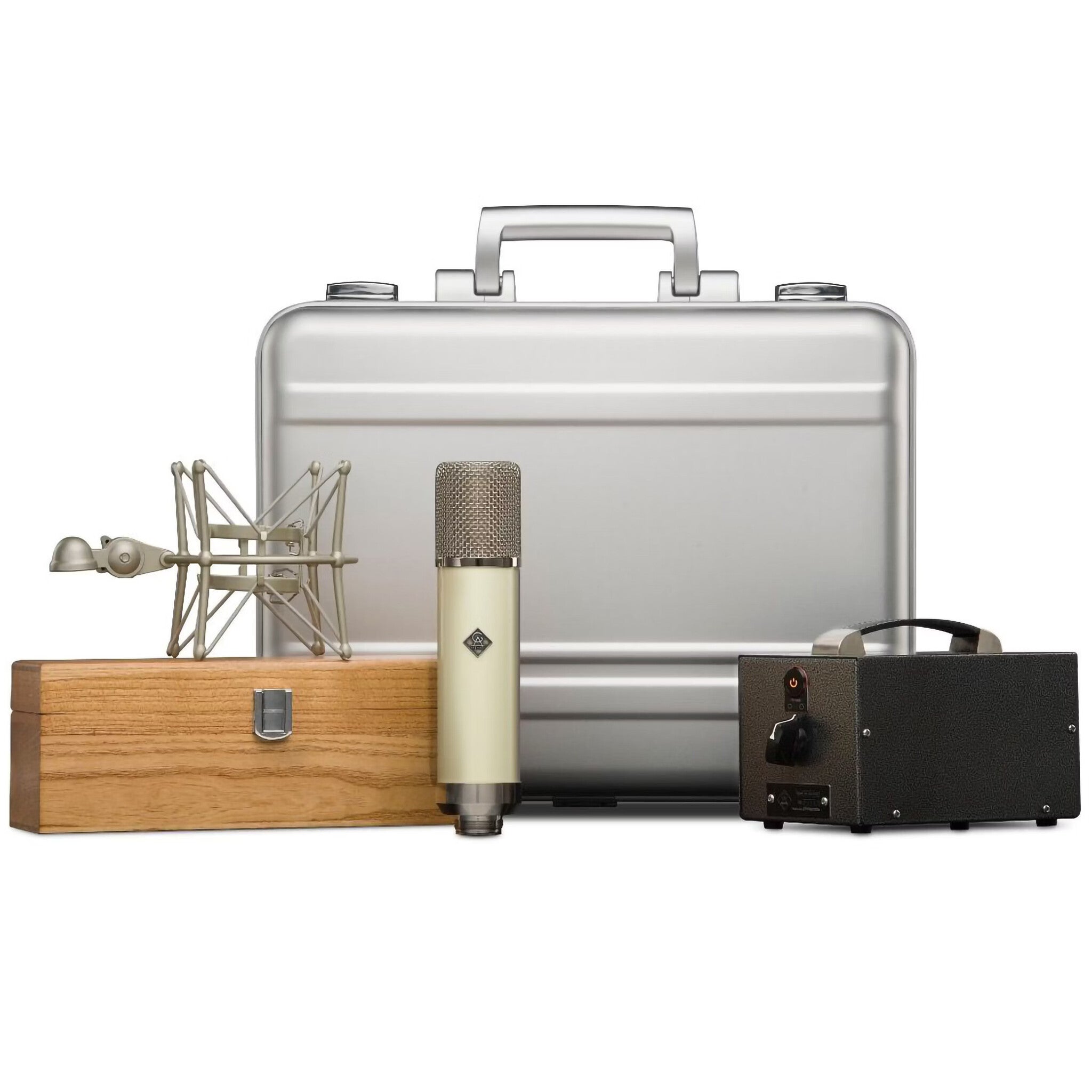

• Solid wood microphone box, sturdy metal flight case

Specifications:

• Maximum SPL: 136dB
• Frequency range: 20Hz-20KHz
• Signal/Noise: 85dBA
• Impedance: <200 Ohm
• Sensitivity: 16mV/Pa
• Backplate material: brass
• Capsule diameter: 34 mm
• Membrane diameter: 34 mm
• Membrane material: 6 micron gold-coated mylar.
• Microphone dimensions: 50mm (diameter) * 250mm (length)
• Microphone weight: 0,6kg
• PSU dimensions: 200mm (length) x 100mm (width) x 100mm (height)
• PSU weight: 1,5kg
