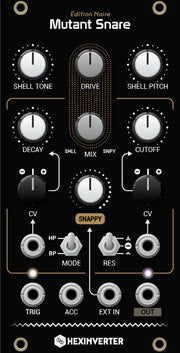

Hexinverter Mutant Snare
Hexinverter Mutant Snare
Pieejams pasūtīšanai
Estimated Shipping Widget will be displayed here!



        Apraksts / Specifikācija


  Apraksts / Specifikācija
From classic electro snares to warping, alien percussion, the Mutant Snare is a radical departure from the static sounds of the 808!
MIX and DRIVE
-
MIX lets you blend between the SHELL and SNAPPY tones that make up the overall snare drum
-
turn up the DRIVE to get overdriven snare tones with intense harmonics. The purple LED indicates when the snare begins to overdrive
-
like the other Mutant Drums, signal levels have been normalized for modular level input and output (up to 20Vpp)
SHELL synthesizes the drum skins
-
analog bridged-t sinewave oscillators, for those organic-sounding tones we've come to love from the 808
-
TONE control blends between the two sinewaves of different frequency
-
SHELL PITCH lets you tune one of the sine waves, to change the pitch of your snare drum
SNAPPY adds some noise to the snare
-
an analog white noise generator feeds the SNAPPY circuit
-
an external input lets you patch any sound source you like into the SNAPPY generator
-
voltage control of SNAPPY decay
-
SNAPPY feeds into an analog selectable high-pass or band-pass filter
-
voltage control of filter cutoff frequency
-
when nothing is plugged into the cutoff CV input, the SNAPPY envelope OR the adjustable sinewave from the SHELL generator normalize through the CV attenuverter for cutoff CV. A jumper on the back of the module allows you to select which of these internal modulation signals are routed here
-
filter has three resonance settings: classic 808 (low resonance), high resonance, and self oscillation
-
bipolar attenuators (aka: 'attenuverters') on CV inputs
