Description

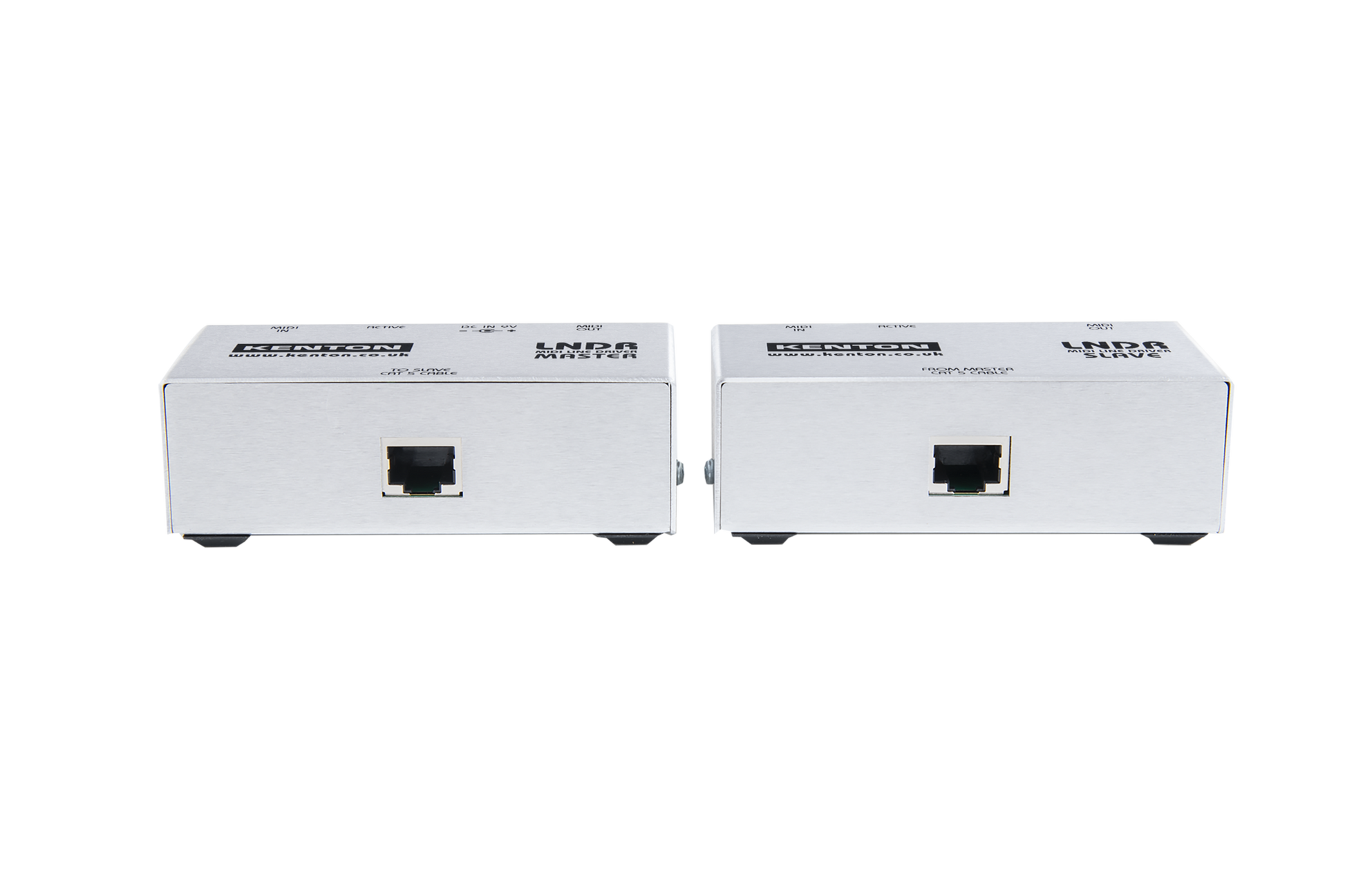

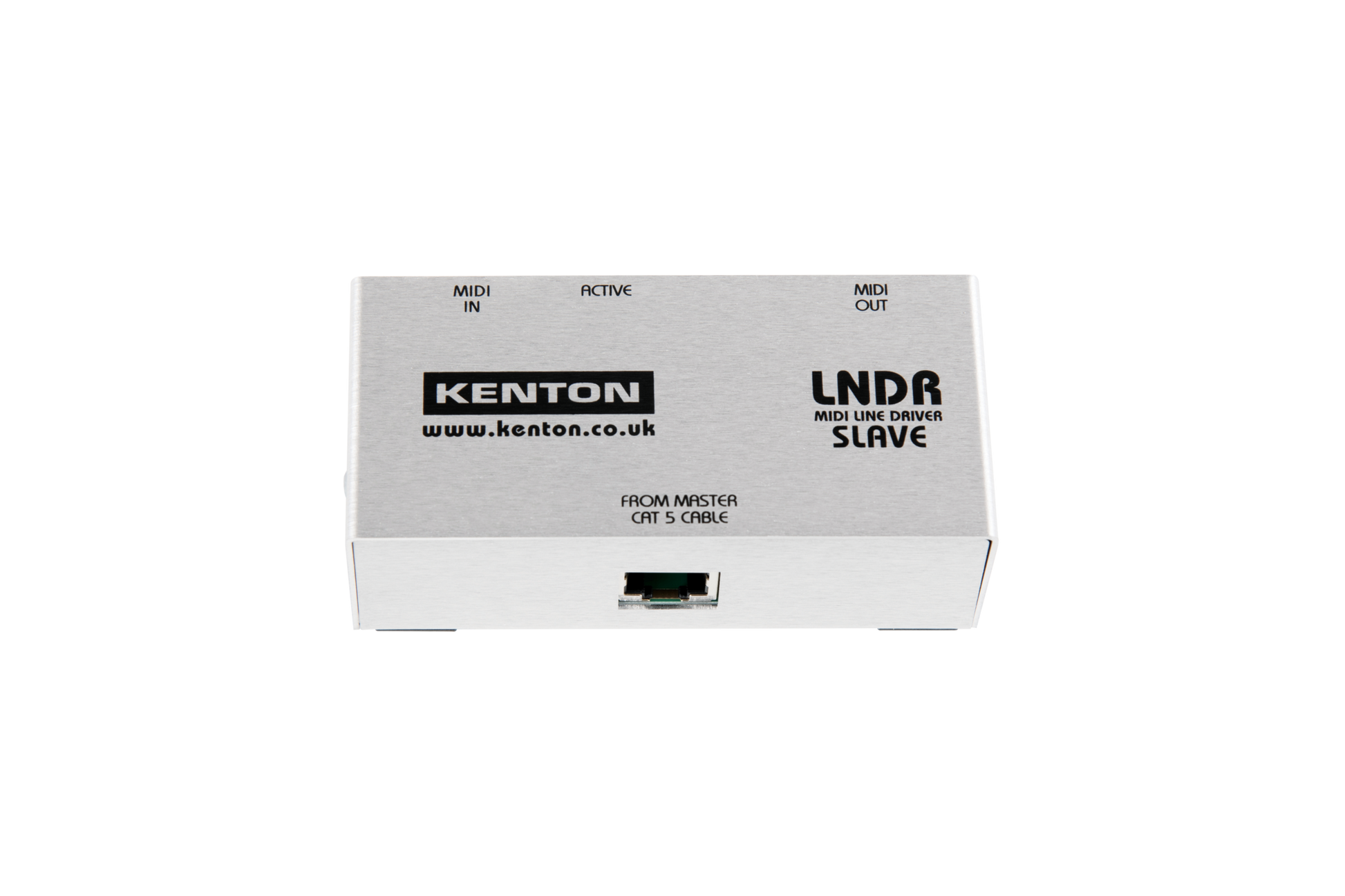

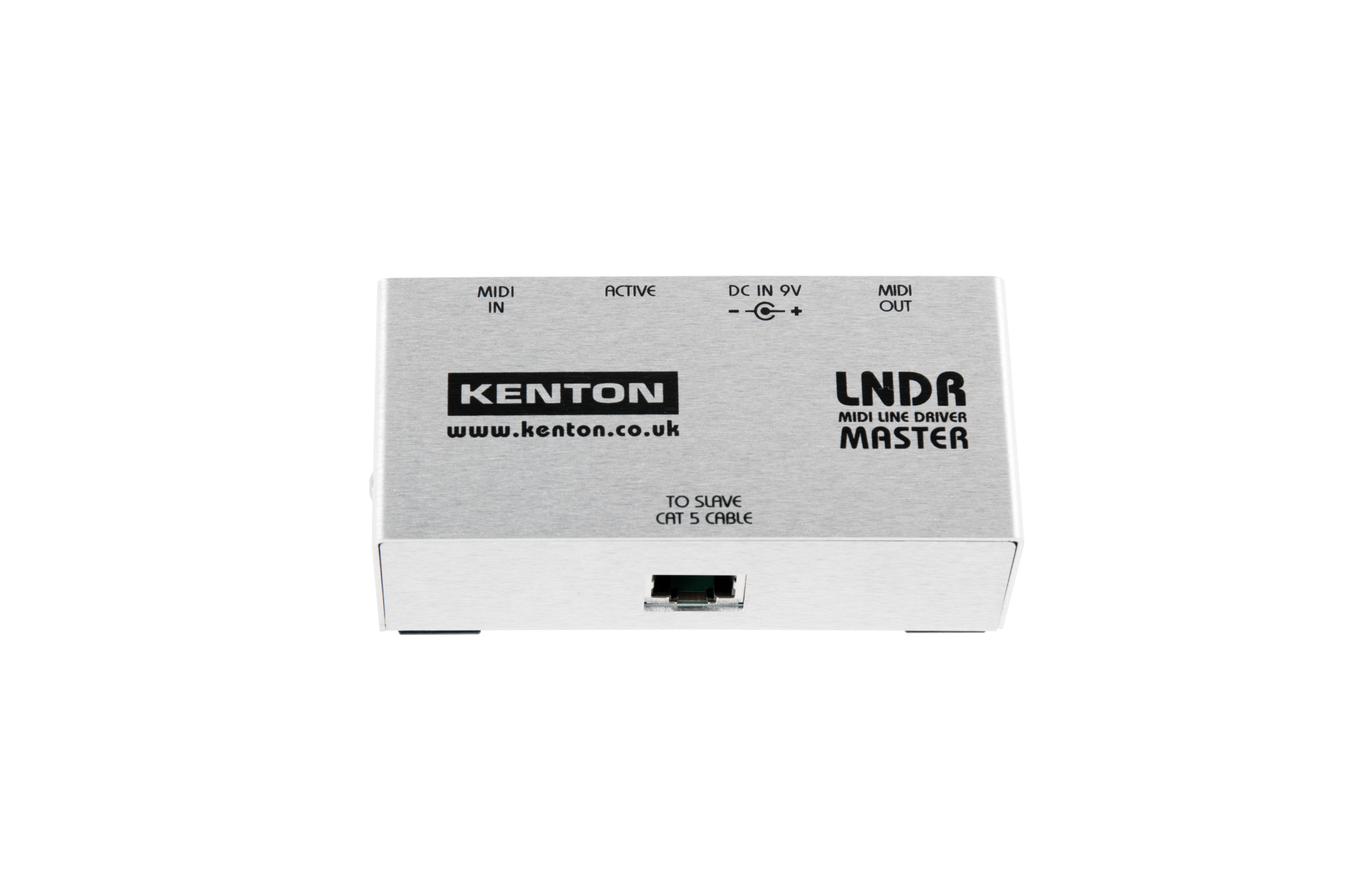

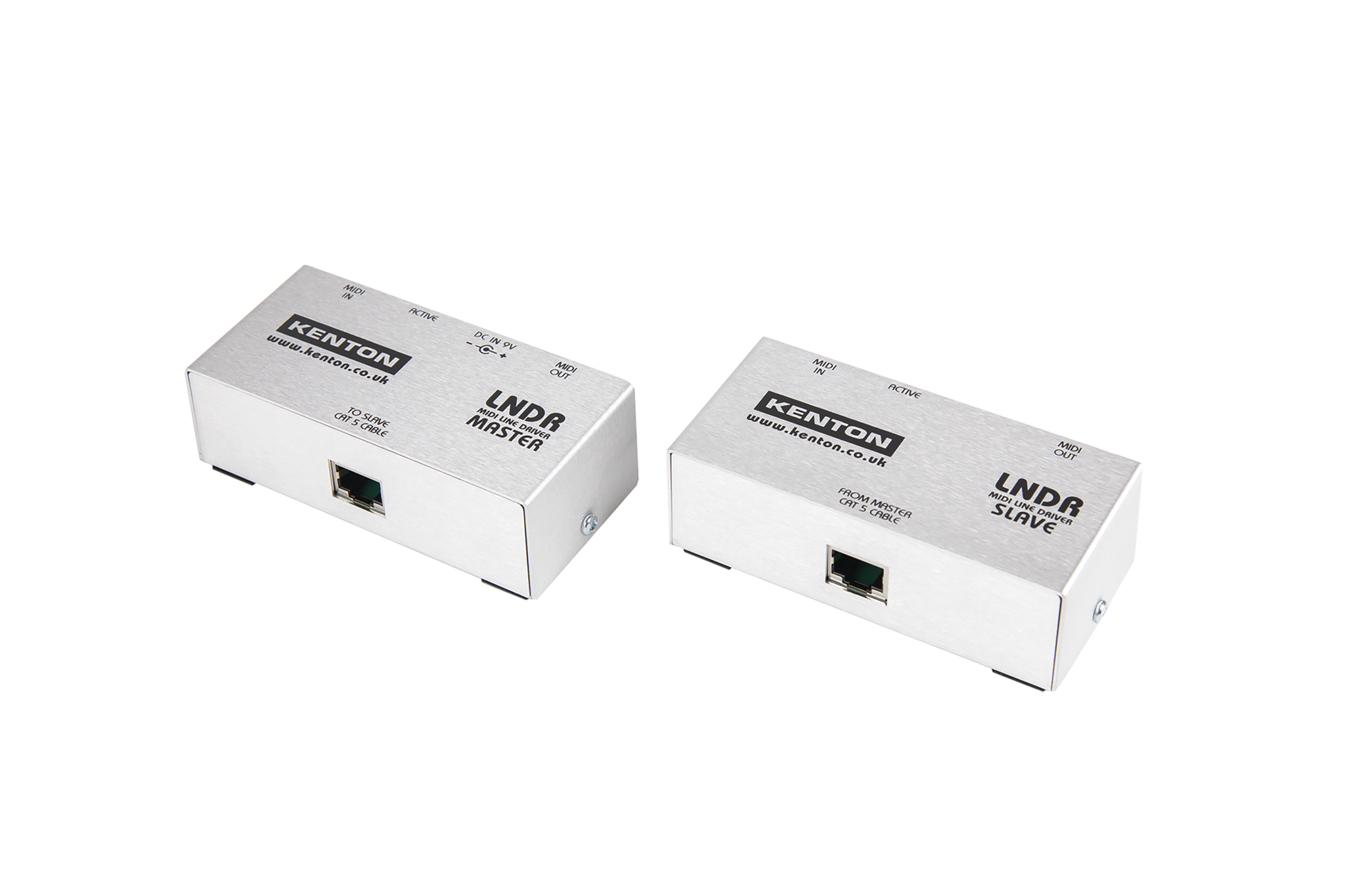

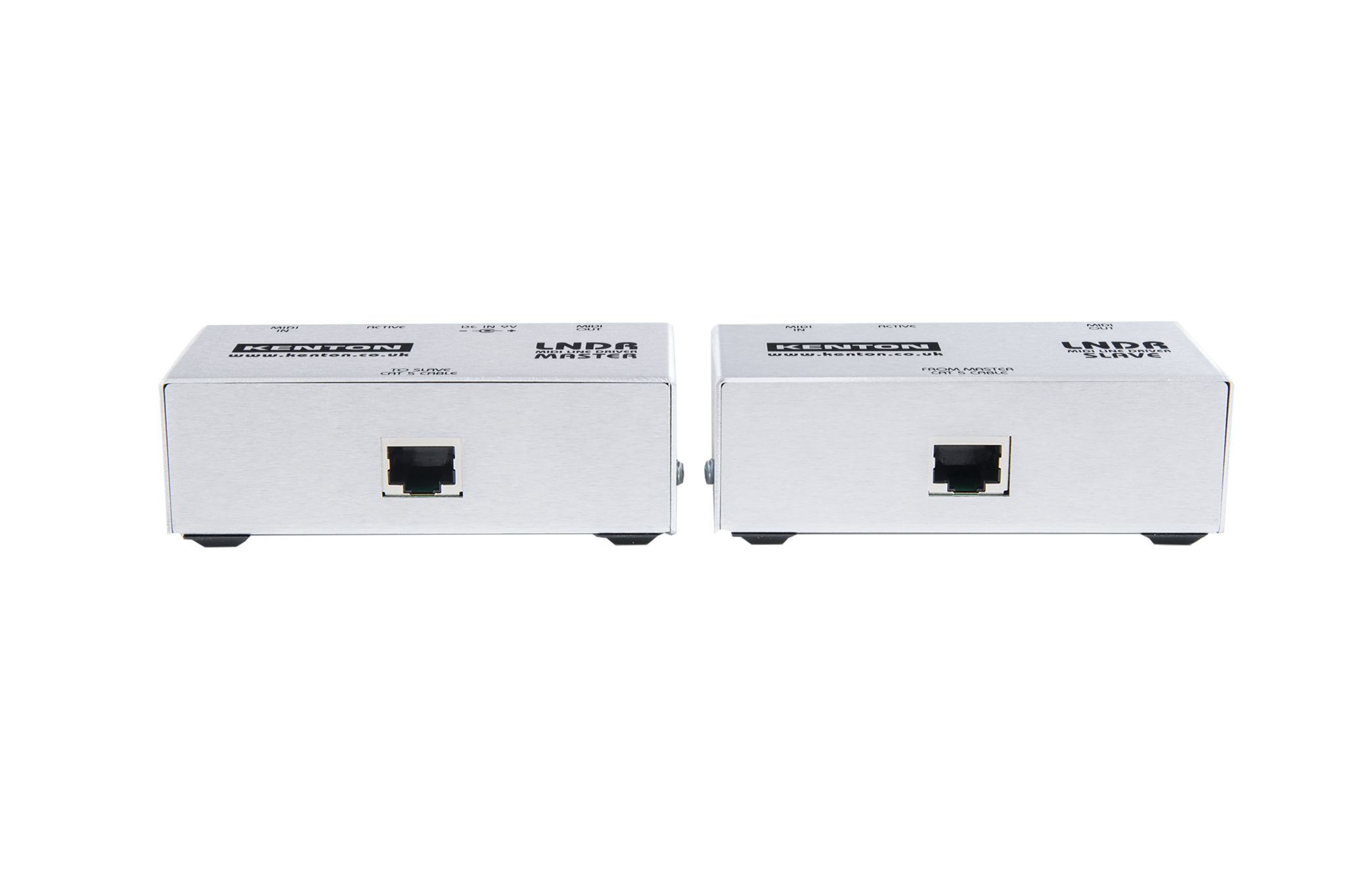

LNDR is a master and slave pair that allows MIDI to be sent accurately in both directions at the same time, across distances of over 500 metres (1640 feet) using a standard CAT5 cable. This is over 33 times the distance achievable using standard MIDI cables. The Master unit is mains powered using the included PSU. CAT5e cable is recommended – CAT6 or CAT7 are also suitable.
CAT5 cable is not included (we don’t know what length you need!) Please see below.
Features
| Power: | 9V to 12V DC (regulated or unregulated). We will include the correct power supply according to the delivery address. |

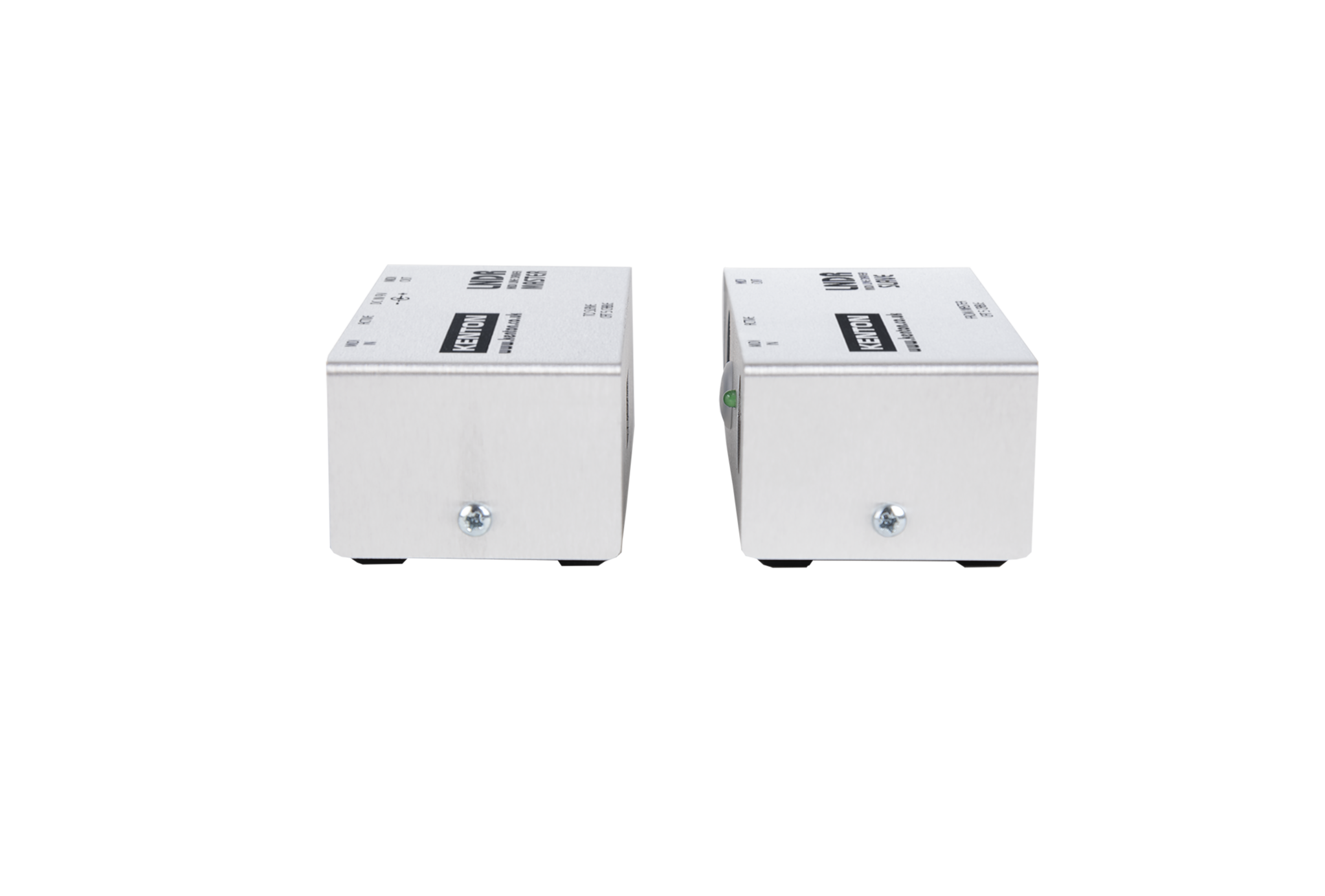

| Dimensions: | 100 x 46 x 32 mm (each unit) |
| Weight: | 110g (each unit, excluding power supply) |

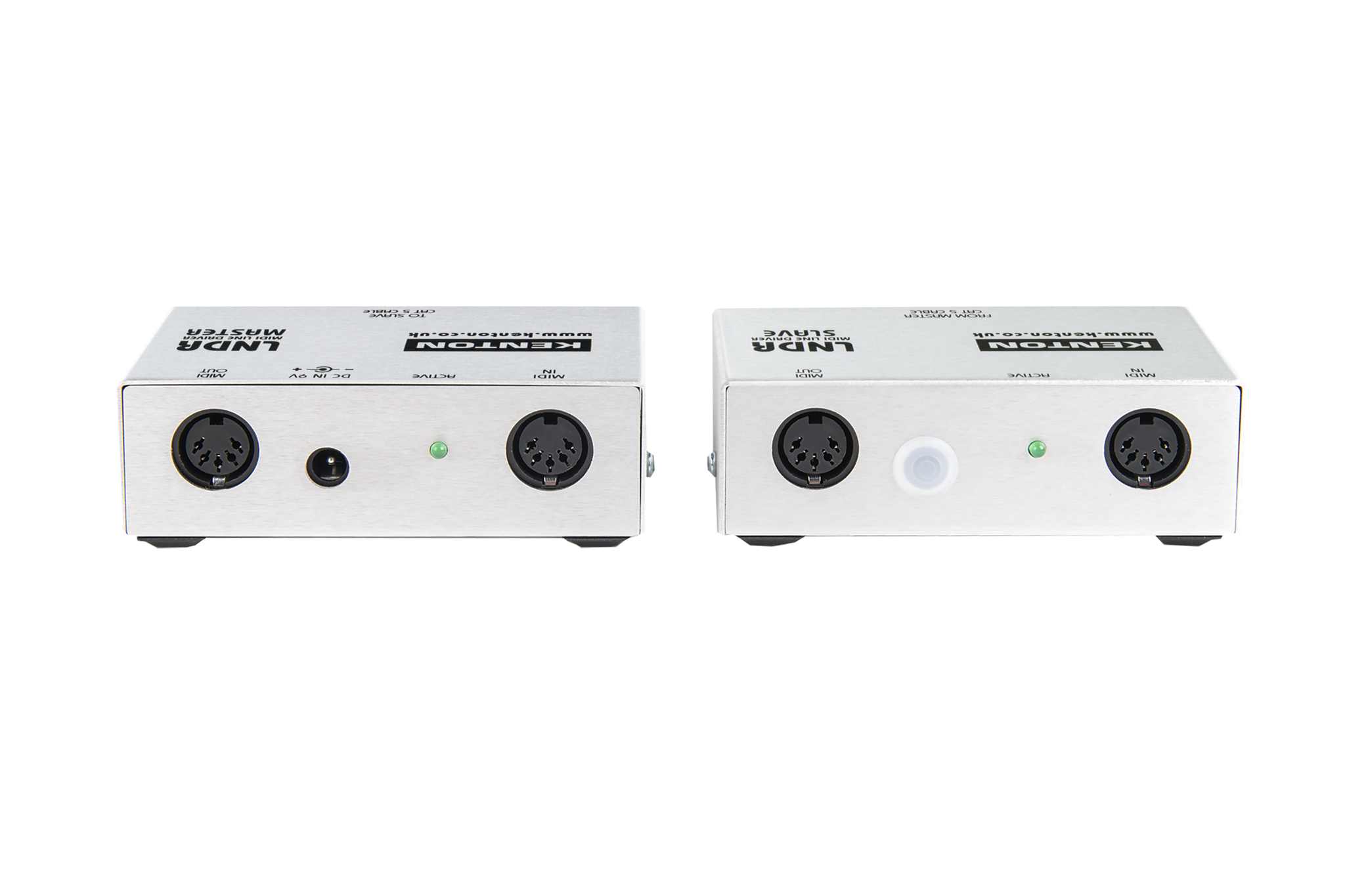

| MIDI: | 1 x In, 1 x Out on each unit (standard 5 pin DIN connectors) |
| Range: | 500 metres between master & slave over CAT5e cable |
| Power Supply | 9V switch mode power supply included. Products bought directly from Kenton are supplied with the appropriate power supply for the delivery address. Four types are available, UK / EU / USA / Australia. |
| Interconnect | CAT5 cable required with RJ45 connectors. Note the LNDR requires exclusive use of the CAT5 cable. |
| Please refer to the manual for more details |
Manual you can find here: Manual
