Description

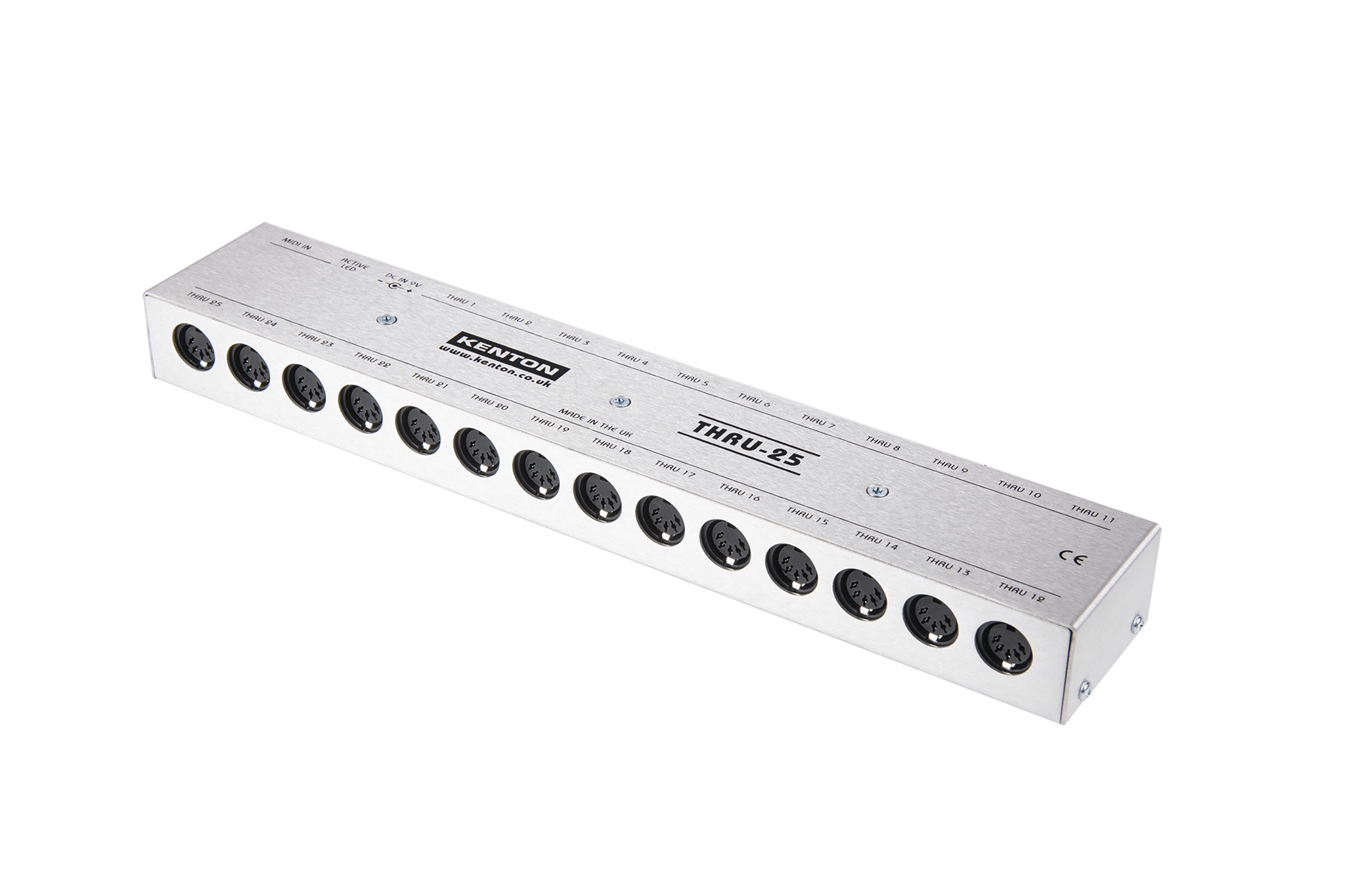

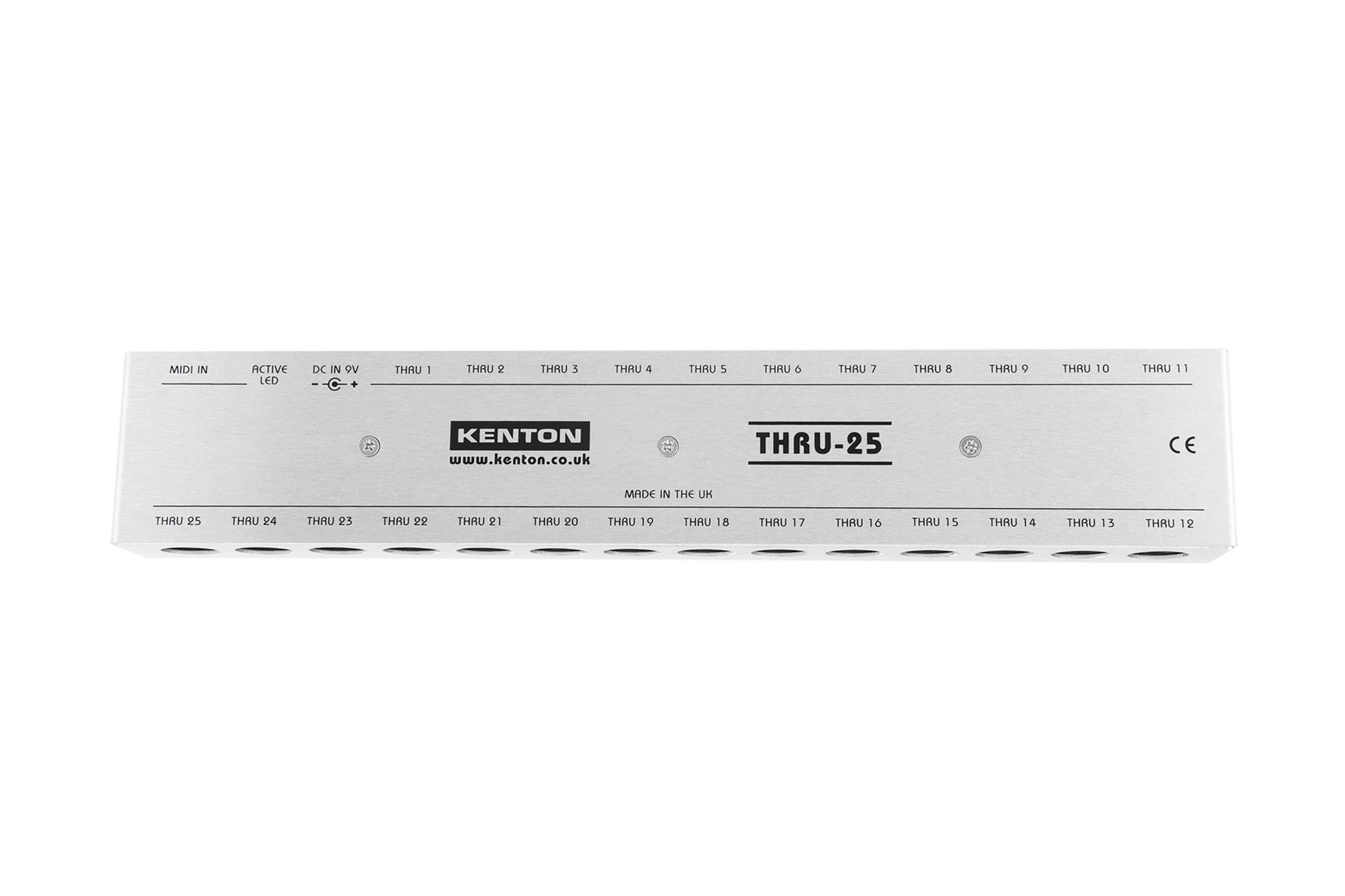

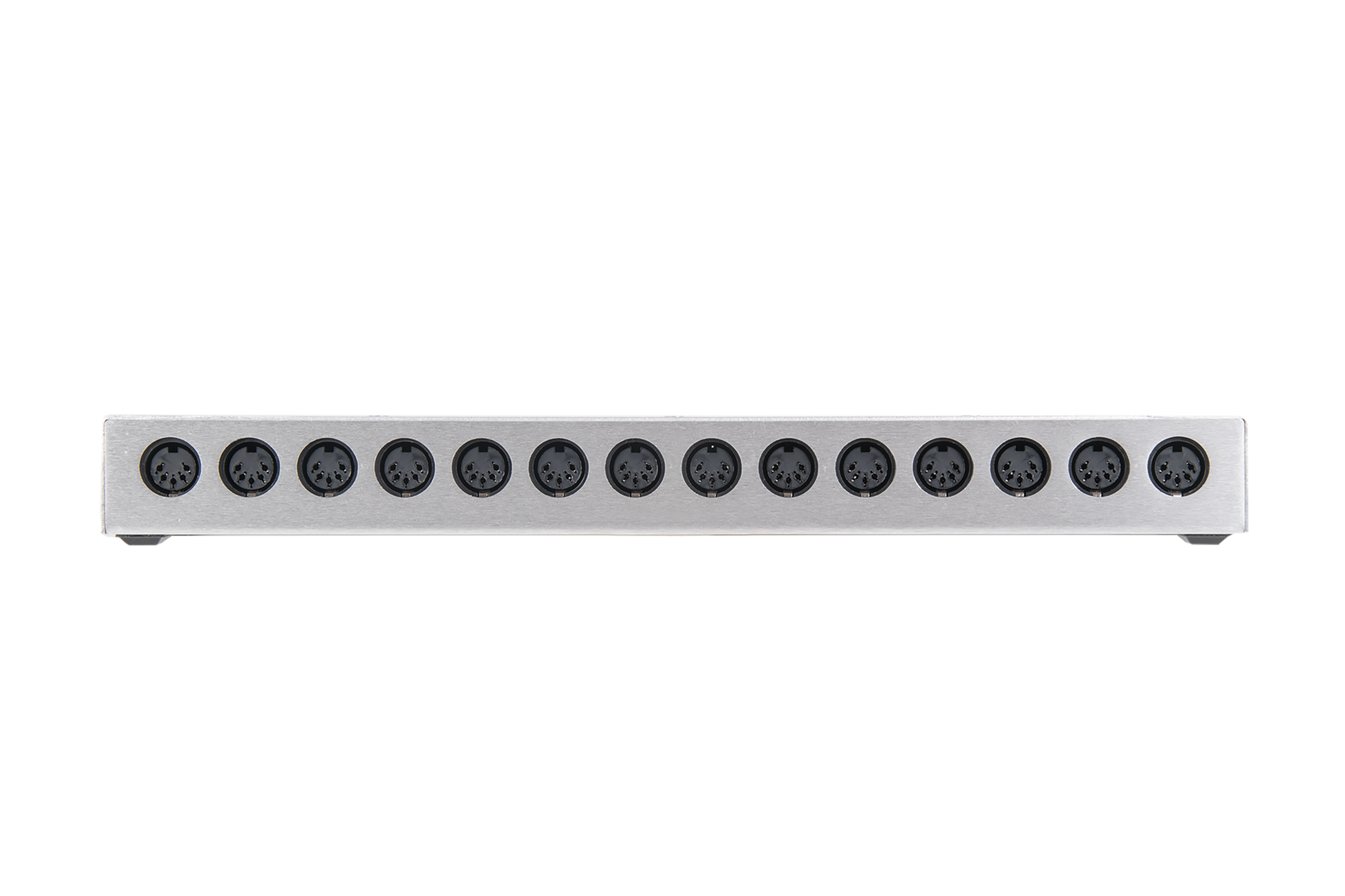

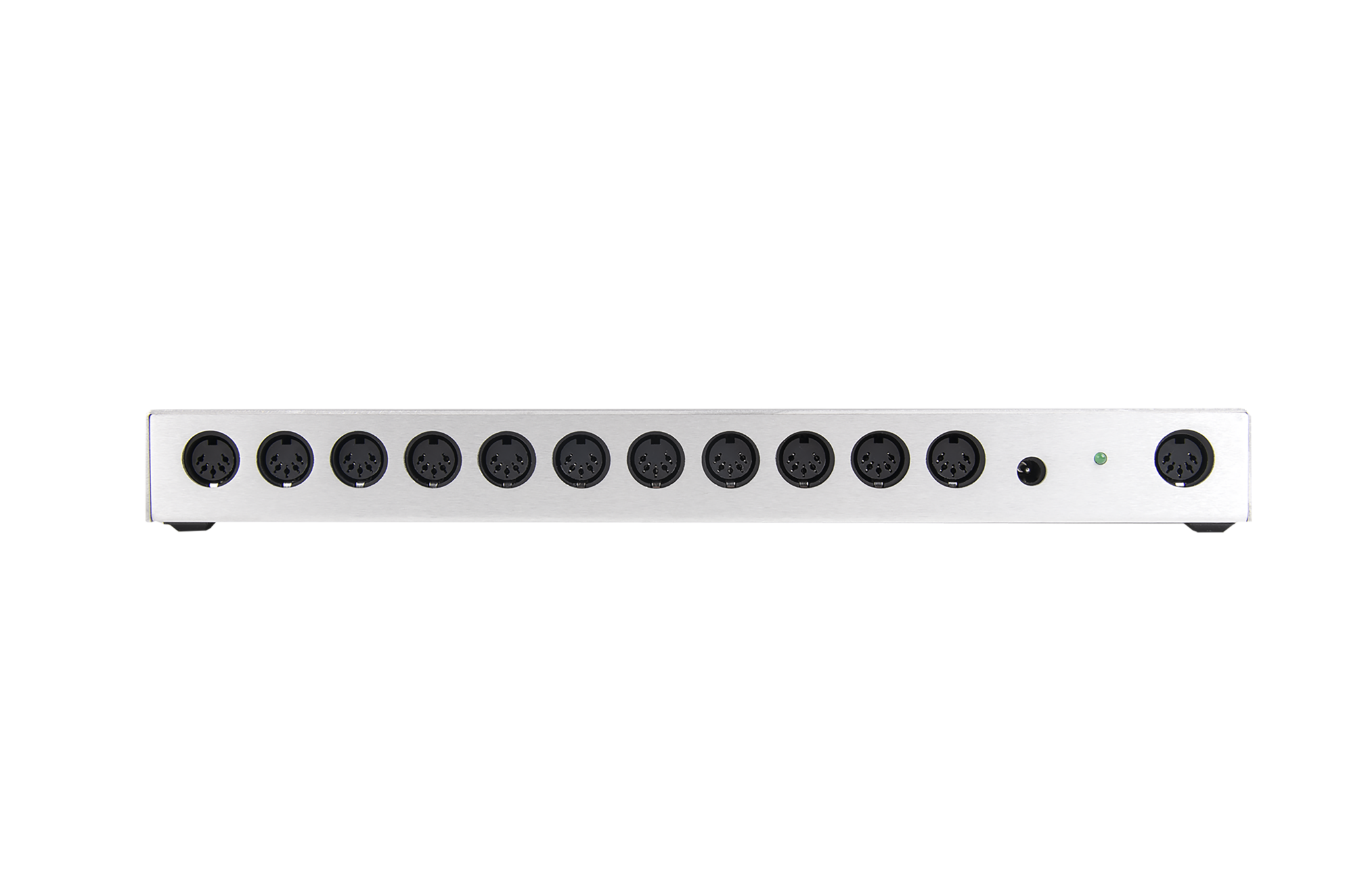

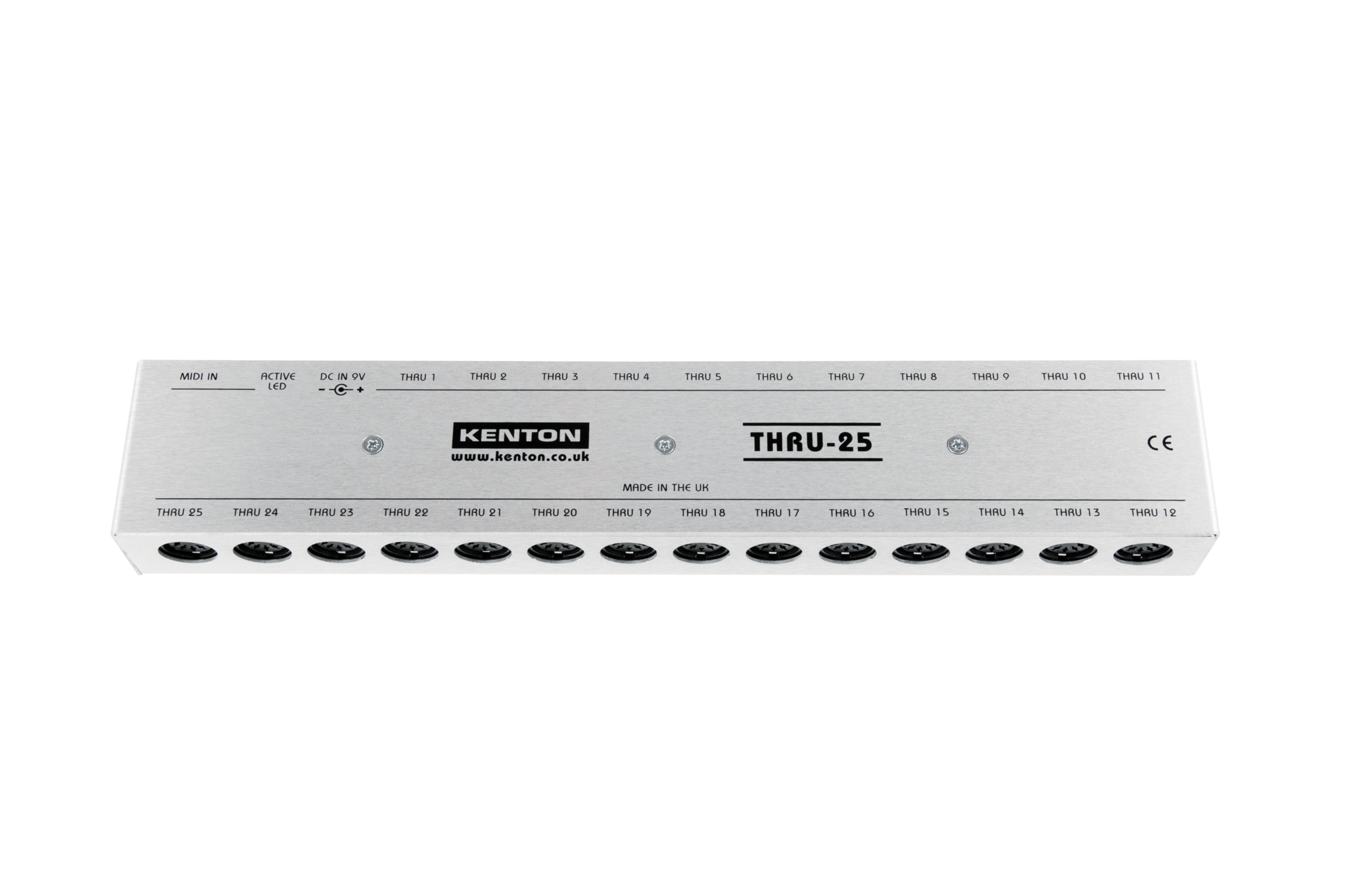

Receives MIDI data from a single MIDI OUT (e.g. sequencer or master keyboard) and produces identical copies at the 25 MIDI THRU sockets. These can then be connected to the MIDI INs of sound modules or other devices which require MIDI signals sent to them.

High quality Kenton MIDI Thru box with opto-isolated MIDI In and separate drive for each MIDI Out. Powered from a mains adaptor (wall wart) so you can fit and forget.

1 MIDI In & 25 MIDI Thrus
Works for ALL MIDI messages including Clock, SysEx, MTC etc.
Includes schmitt trigger logic for signal quality restoration
Less than one microsecond latency
DC power input jack 2.1mm (centre +ve)
Power/Data indicator light

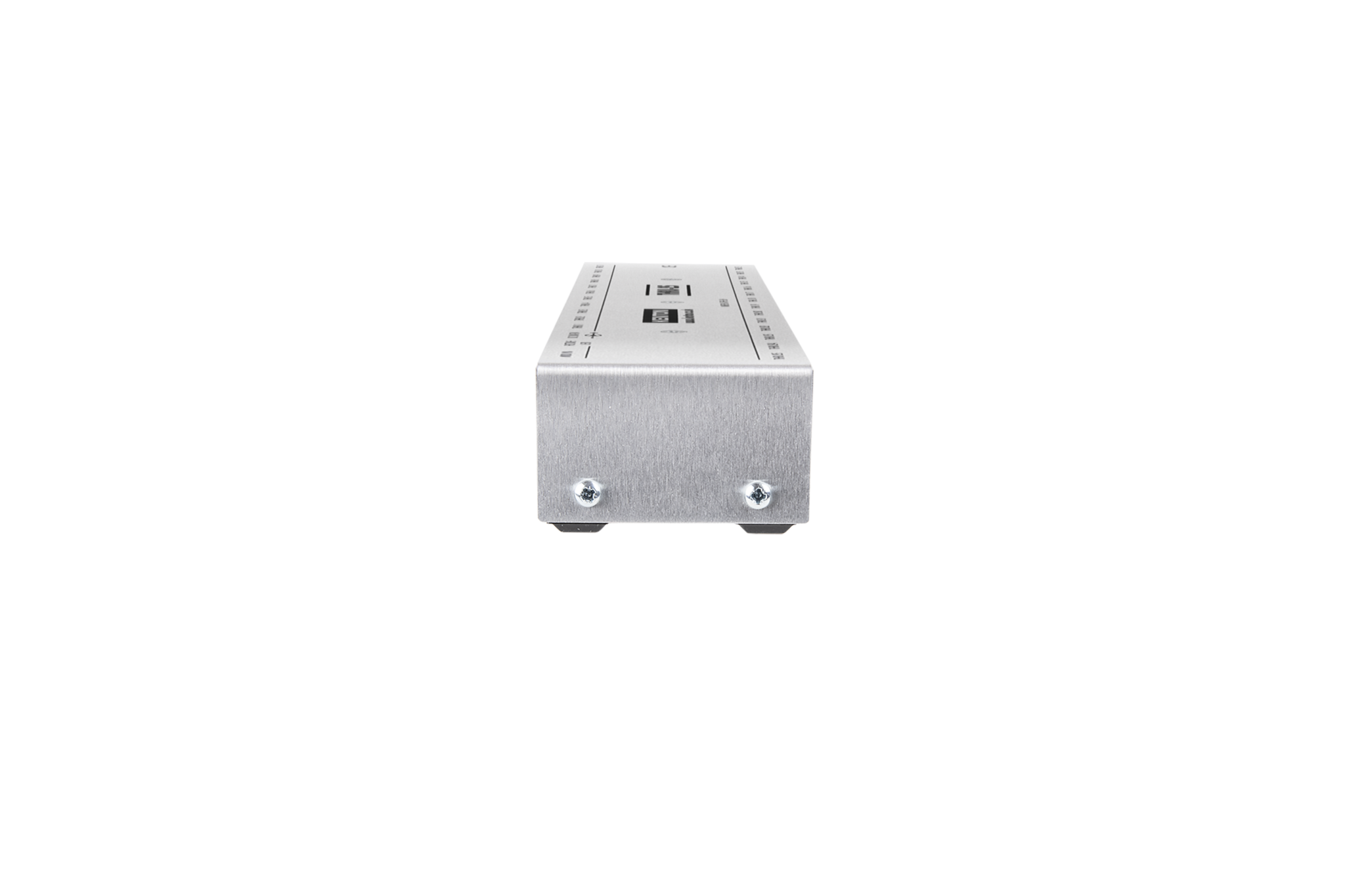

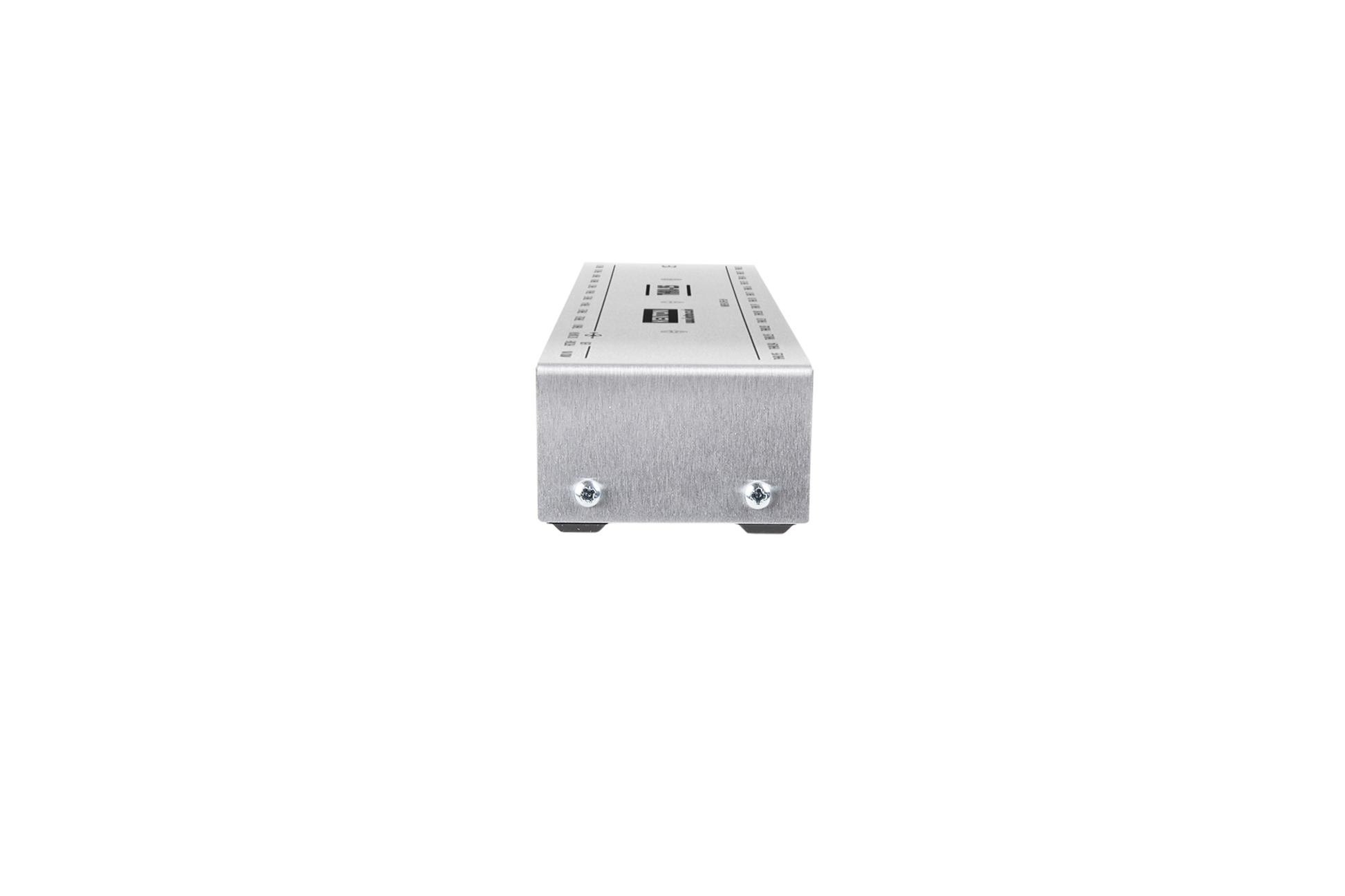

Housed in a metal box so it can withstand the knocks
Attractively finished in brushed aluminium with black screen print

9V switch mode power supply included. Products bought directly from Kenton are supplied with the appropriate power supply for the delivery address. Four types are available, UK / EU / USA / Australia.

Features

Manual you can find here: Manual
