FEATURES

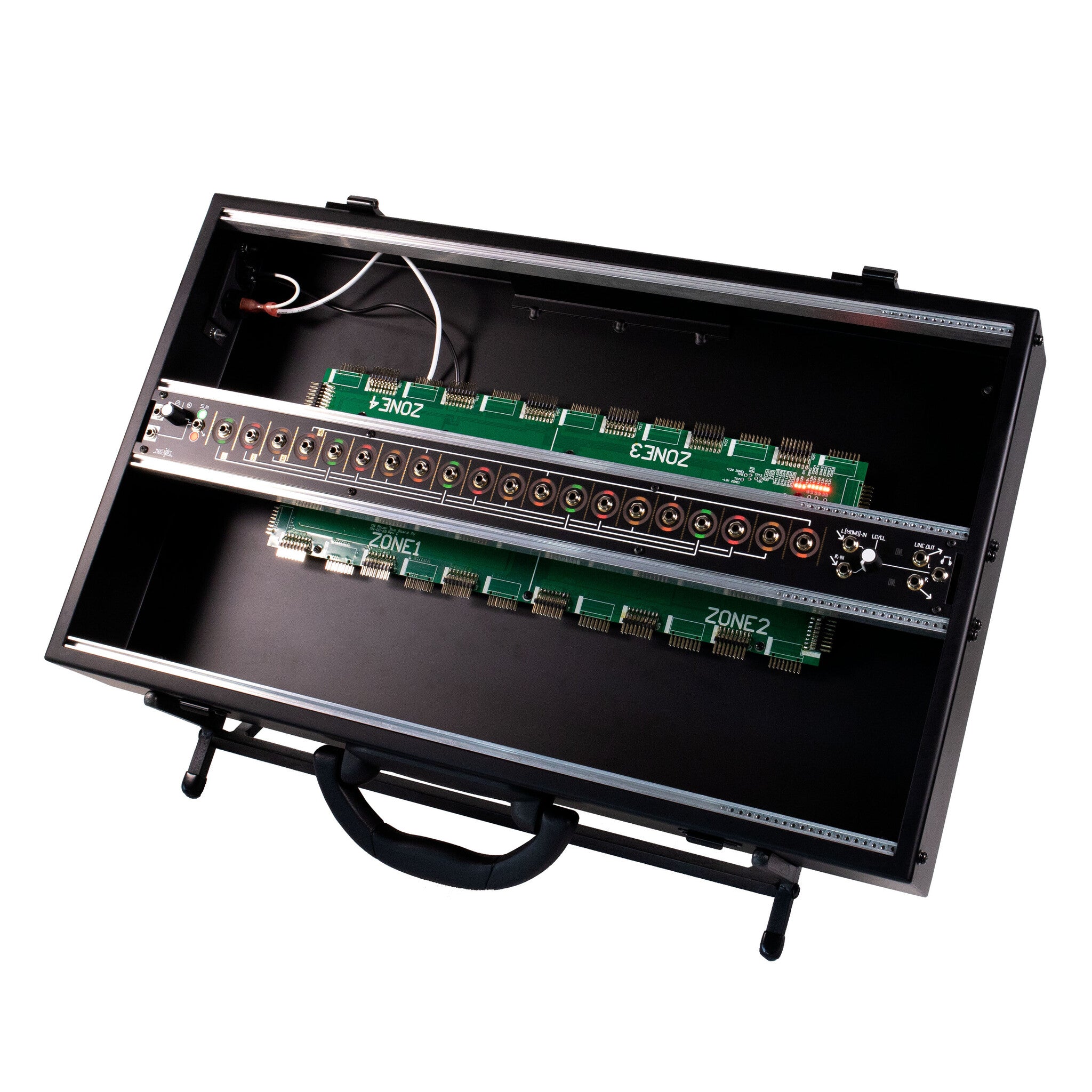

• Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
• Hybrid switched/linear power solution for low noise and excellent load regulation
• Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones

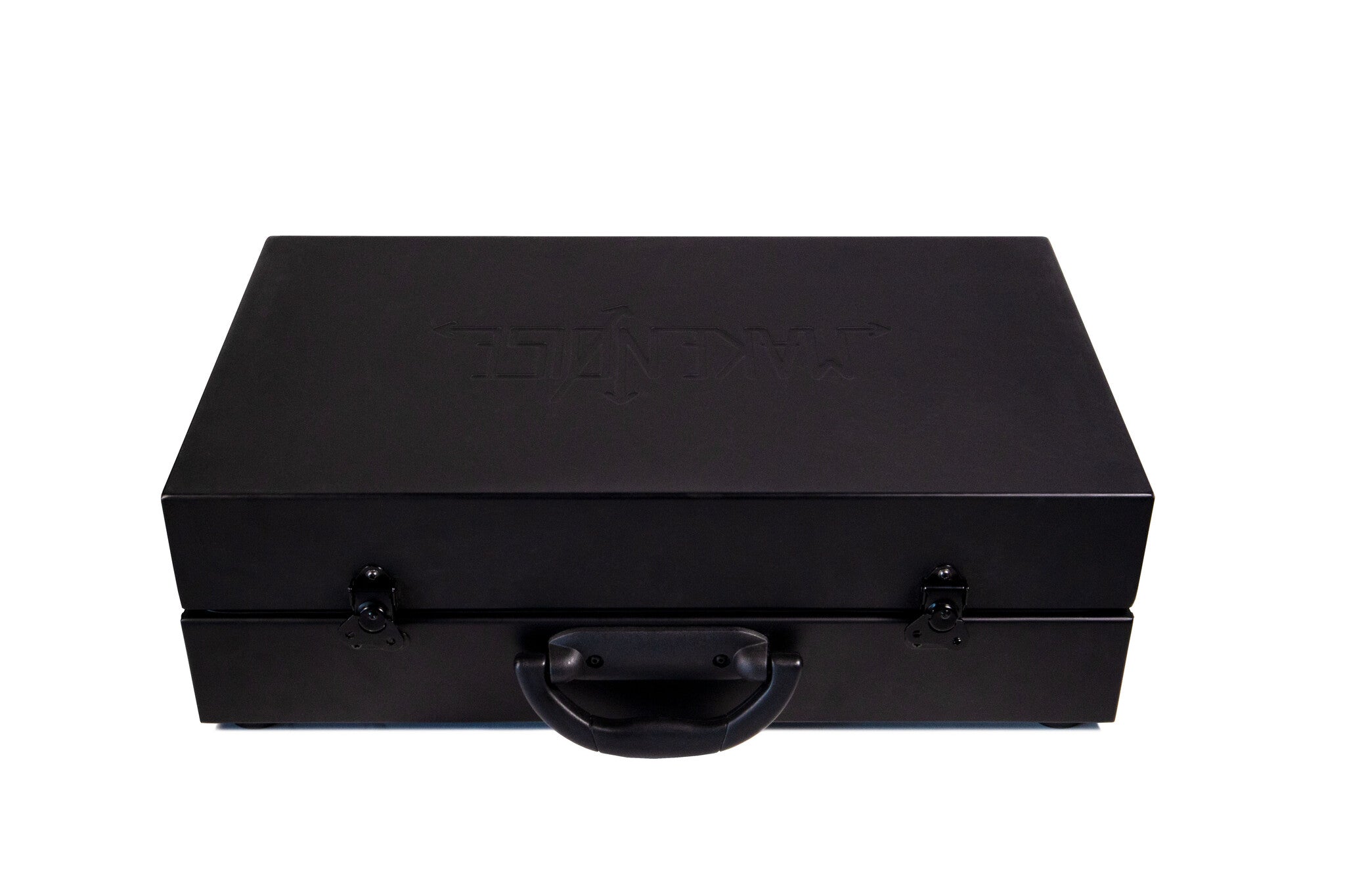

• Black powder coated metal w/ embossed logo on lid
• Sealed to keep dust out during travel or storage
• Lid offers space to close with your system patched
• Recessed side mounted on/off switch and power inlet for safe travel
• Locking power connector helps prevent on-stage power loss accidents
• Solid carrying handle and rubber feet so the case travels w/ ease
• Meets carry-on luggage size requirements for most airlines
• Universal AC power adapter works worldwide (Need IEC Cable for non-US outlets)



Total HP: 7U, 208 @ 3U, 104 @ 1U

Outer Dimensions: 22.25" x 14" x 7.25" w/ lid

Max Module Depth: 2.5"

Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)

Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A

Connectors: 32

Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter



More information yo can find here: INFORMATION
