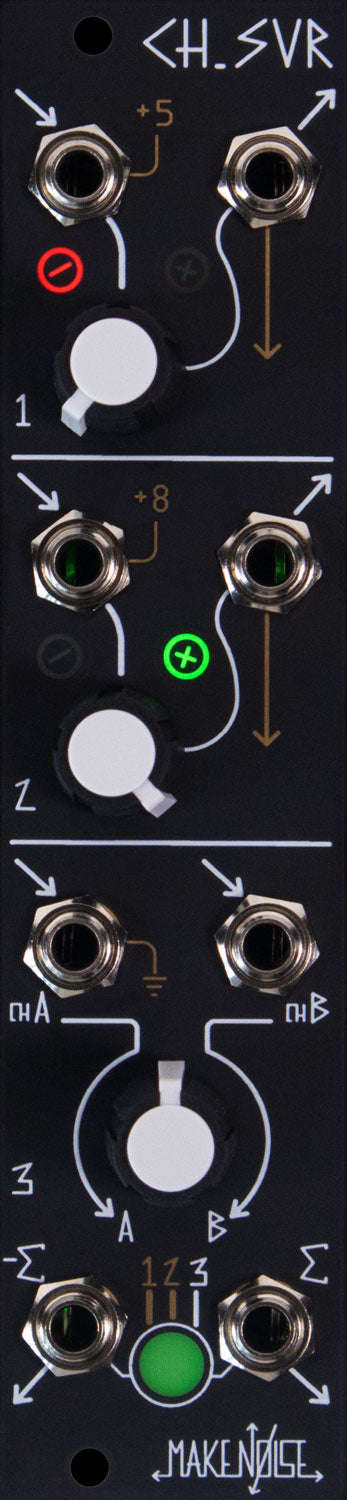

The Channel Saver music synthesizer module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

• Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2

• Generate DC offsets when Channel 1 or 2 is unpatched

• Crossfade between two signals, or attenuate one signal, using Channel 3

• SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.

• Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels

• Anywhere you need more subtle modulation, Ch. Svr is there for you… now all your eurorack slivers may have subtle and intentional modulation they deserve!

Specs:

6hp

20mA @+12V

10mA @-12V

30mm depth (incl. power cable)
