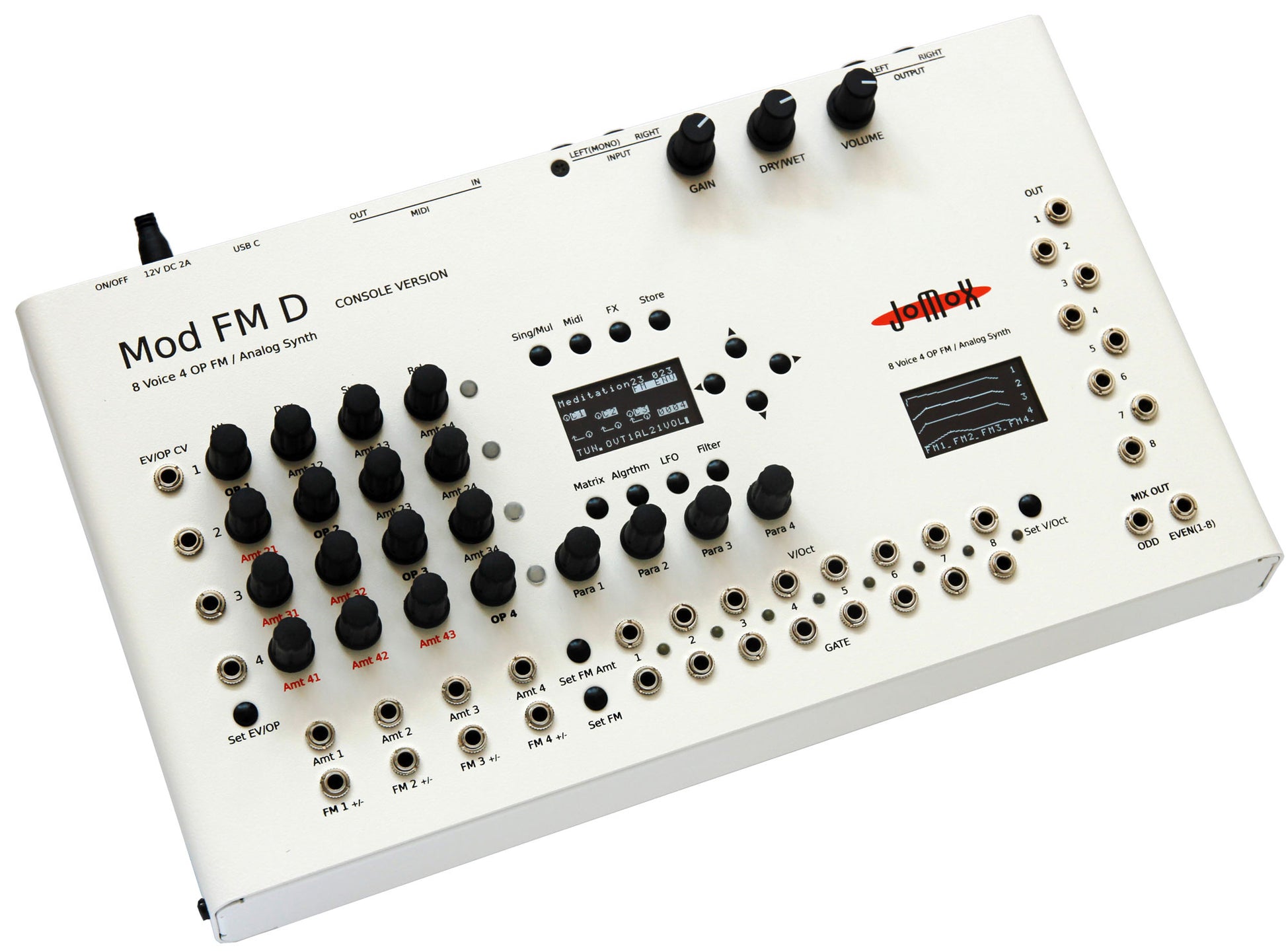

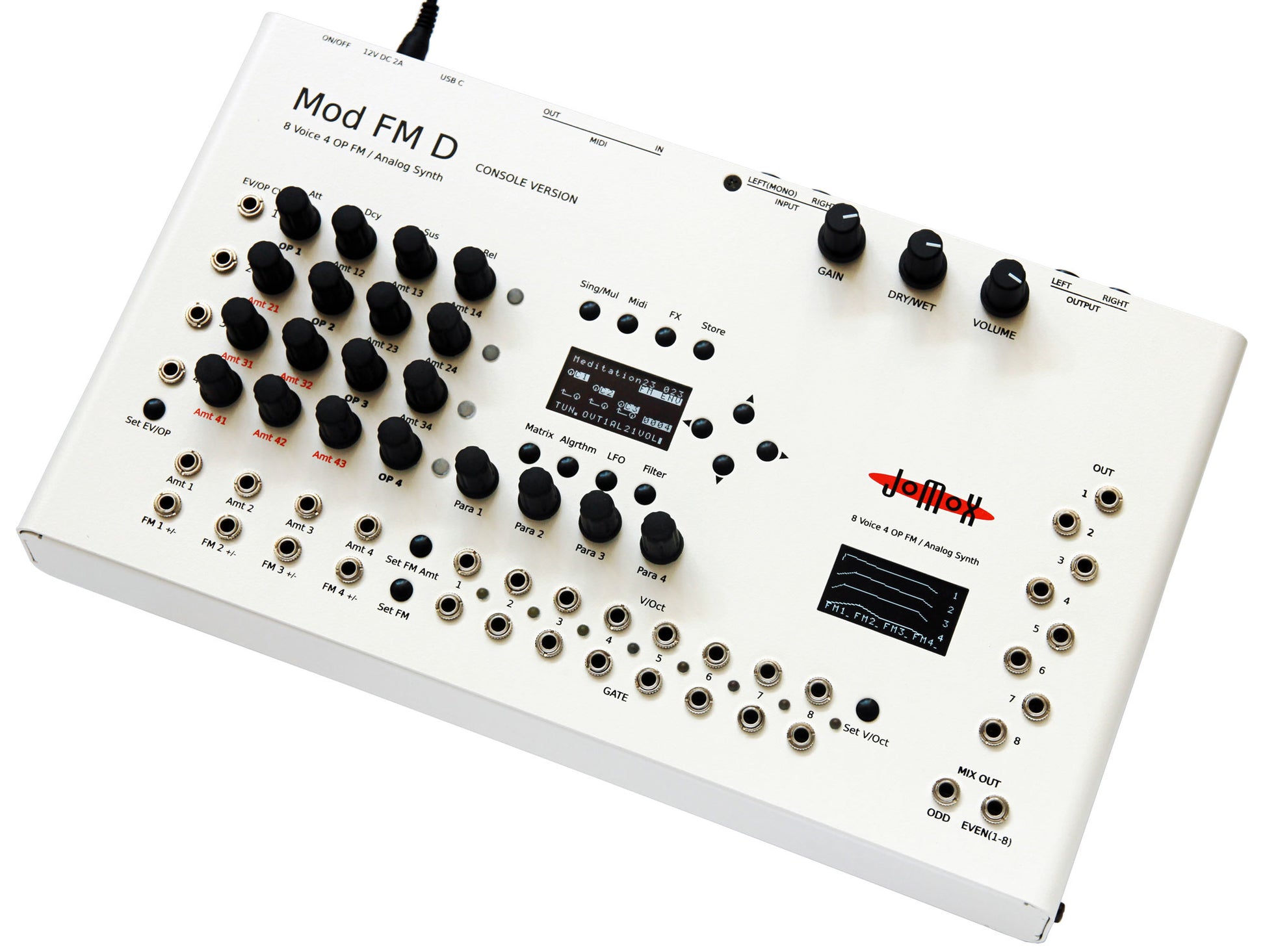

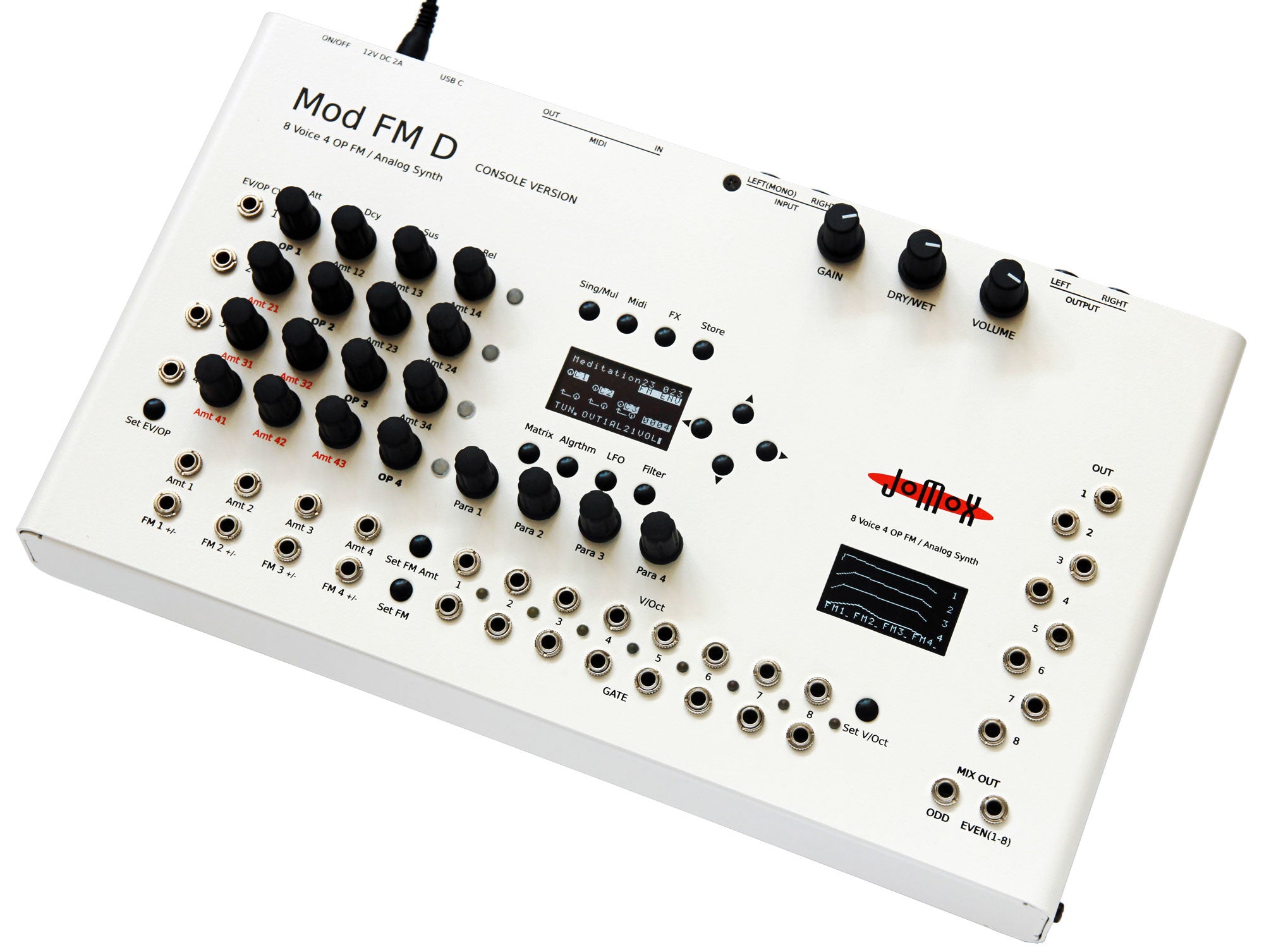

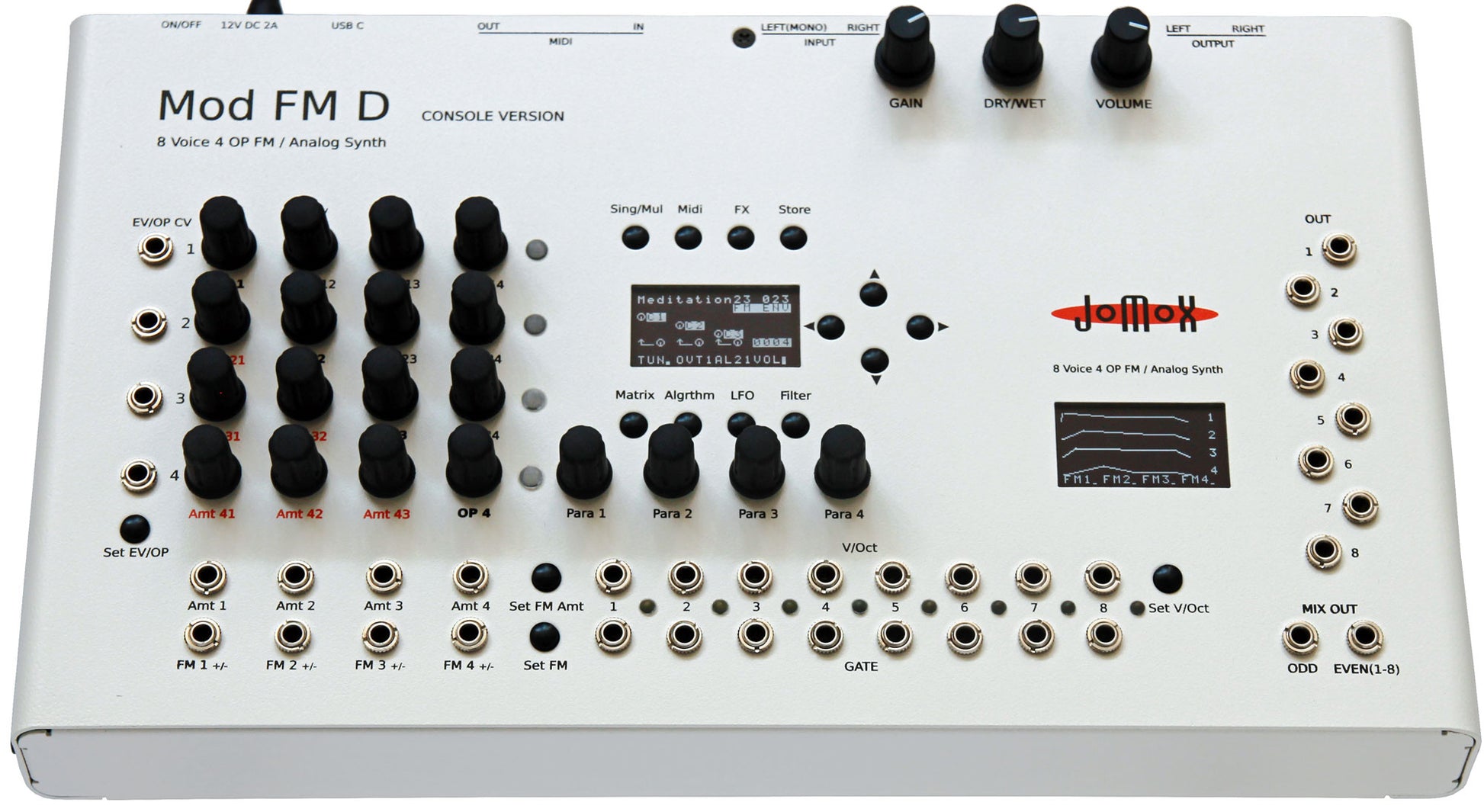

Desktop FM Synthesiser

• 8 Voice FM-Synthesiser
• Per voice: 4 operators and 26 algorithms, ADSR envelope per operator, 2x LFO/VCO, 2 analogue filters and analogue VCA
• 64 LFO waveforms
• 24 dB low-pass filter and 12 dB multimode filter (low-pass, band-pass, high-pass) with ADSR envelope
• Metal noise sound source can be mixed in
• Onboard effects: reverb and 2 x delay
• 8-Voice single mode or 8-voice multi mode selectable
• Convenient operation via 20 encoders and two displays
• Memory locations for 128 single presets and 128 multi presets
• CV/gate inputs for each voice
• 12 CV inputs for external modulation sources
• 8 Voice ouputs and 2 mix outputs
• MIDI In/Out: 5-pin DIN
• USB-C port for USB-MIDI
• Stereo outputs: 2 x 6.3 mm jack
• Stereo inputs: 2 x 6.3 mm jack
• Dimensions (W x D x H): 318 x 180 x 72 mm
• Weight: 1.9 Kg
• Includes external power supply (12 V DC, 2 A)
