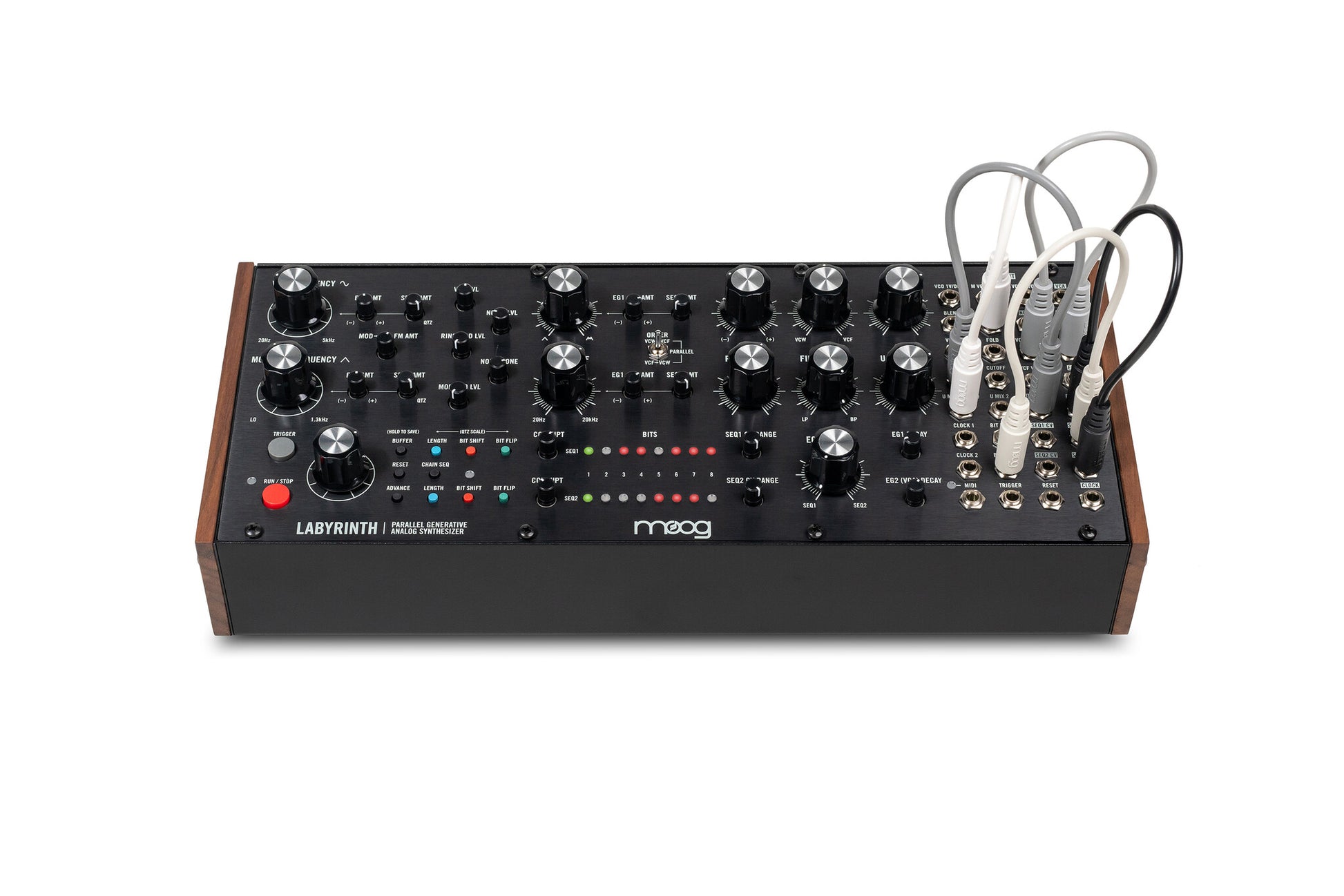

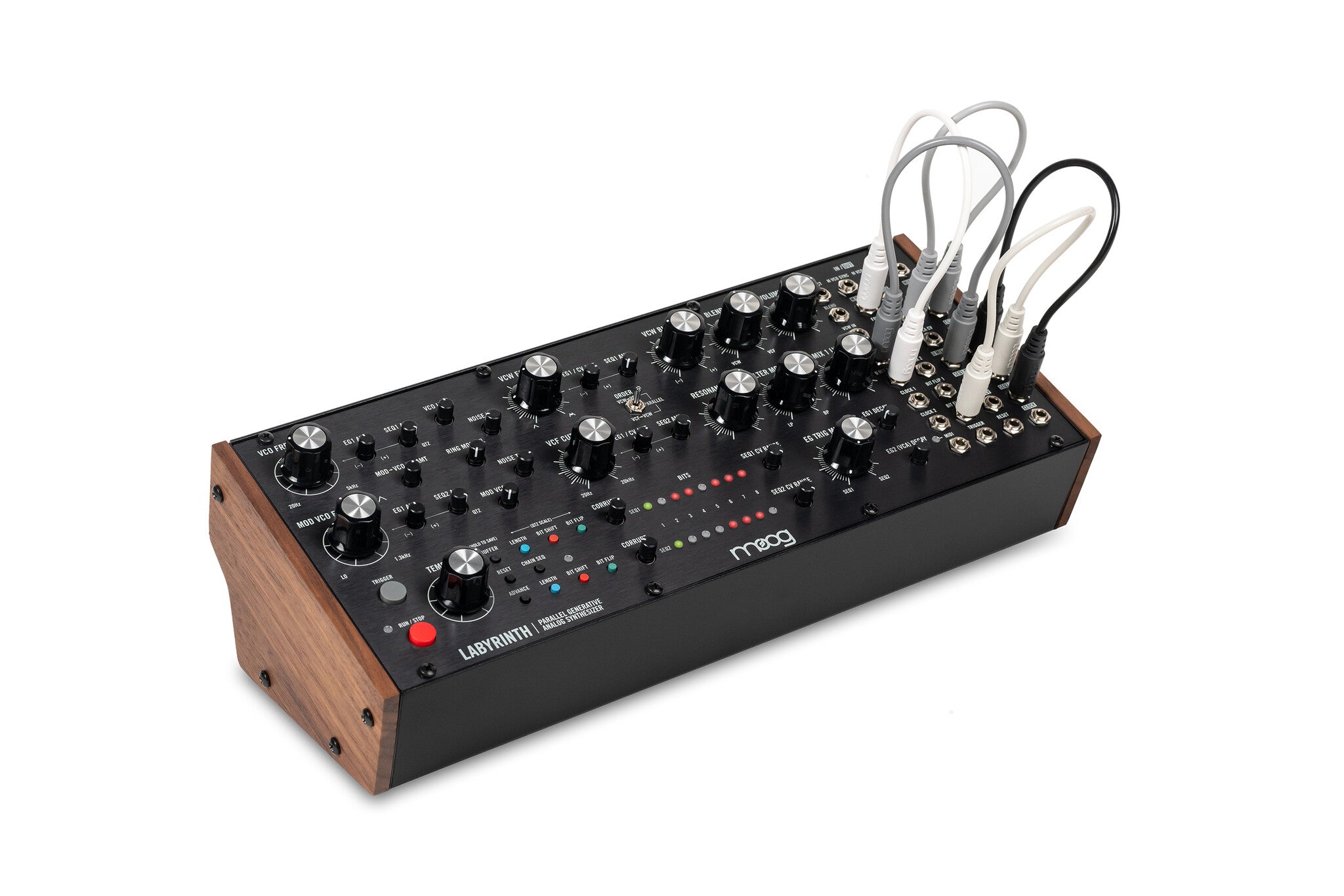

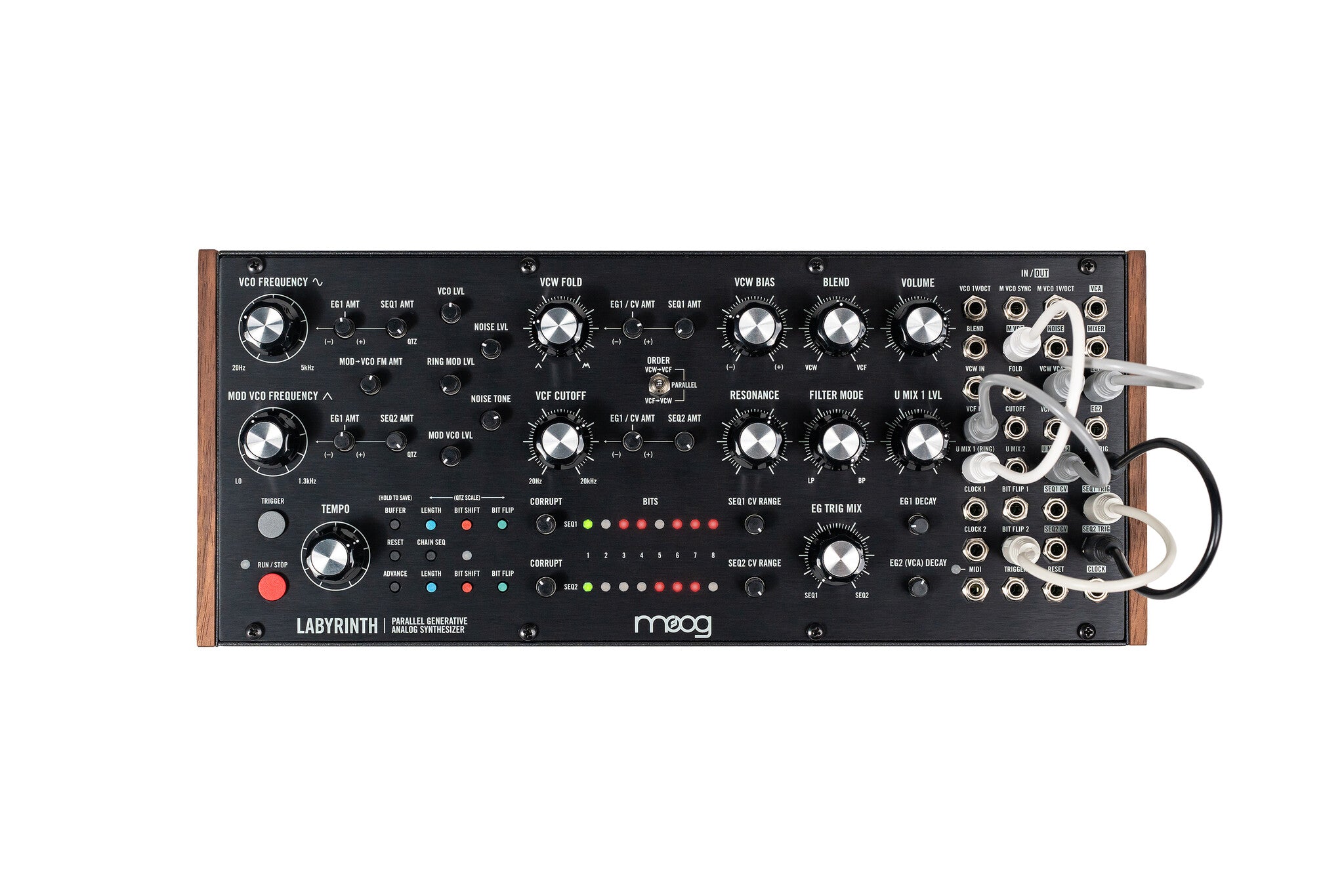

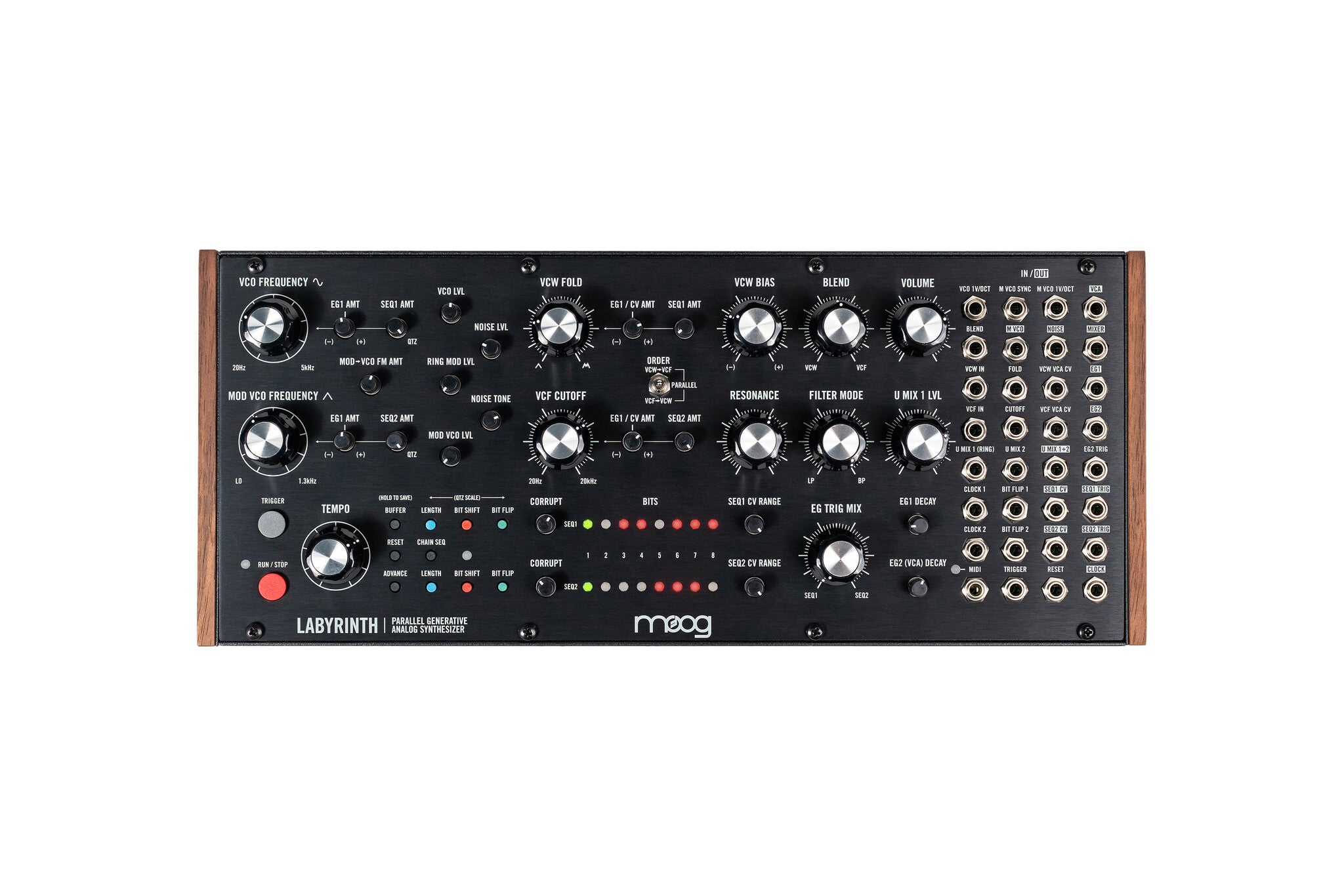

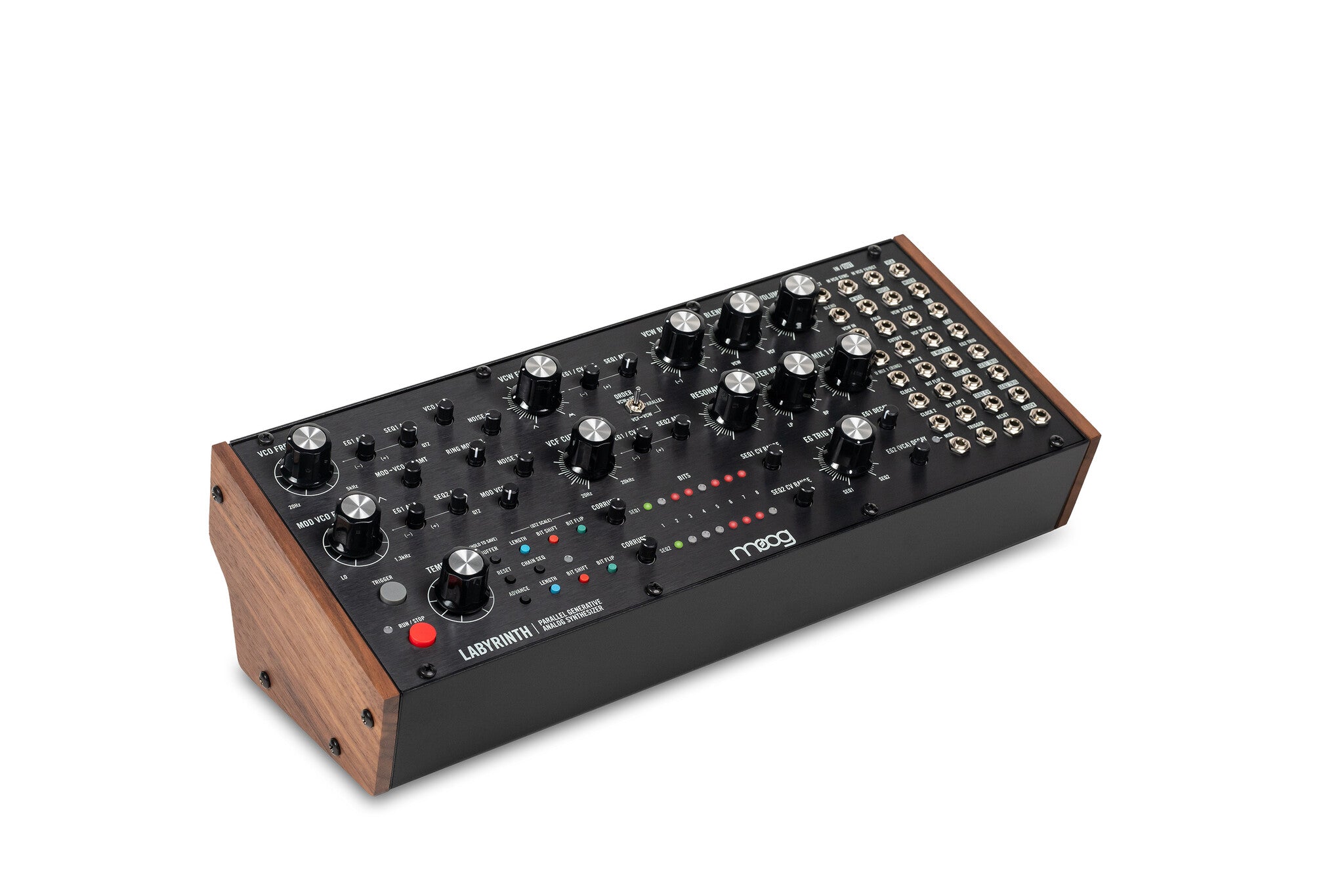

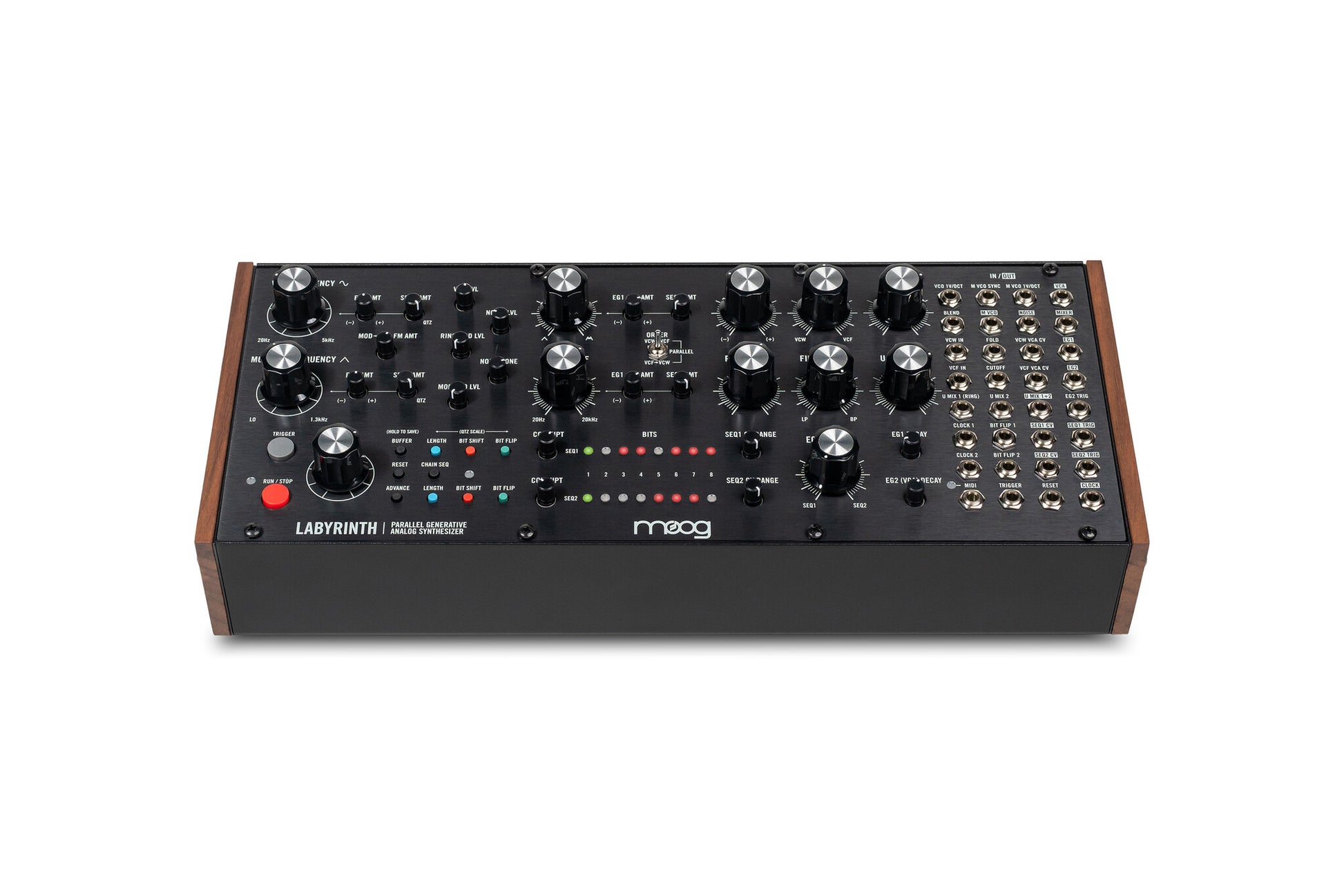

How deep does the rabbit hole go? Meet Labyrinth, an idea machine that aims to answer that very question. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the steady backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding flavor to your existing rack, Labyrinth is the lightning in a bottle that drives your compositions into undiscovered creative caverns

Key Features

- Sine wave oscillators, ring modulators, through-zero FM, and saturating mixers give Labyrinth an unconventional yet classic Moog sound

- A diode-transistor hybrid wavefolder that sounds surprisingly smooth - A state-variable filter provides a new twist on the Moog sound, morphing from lowpass to bandpass

- Creative patching possibilities for performance alongside other instruments

- An infinite spiral of percussive or melodic sequences that bloom over time

LABYRINTH SPECS:

ANALOG SYNTHESIS ENGINE

SOURCES: VCO, MOD VCO, RING MOD, NOISE Generator
SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled StateVariable Filter, 2x Voltage-Controlled Amplifiers
MODULATORS: 2x Decay-only envelope generators

DUAL GENERATIVE SEQUENCER

2x 8-step Generative Digital Sequencers

PATCH BAY

JACKS: 32 x 3.5mm
INPUTS: 20 Input Jacks
OUTPUTS: 12 Output Jacks

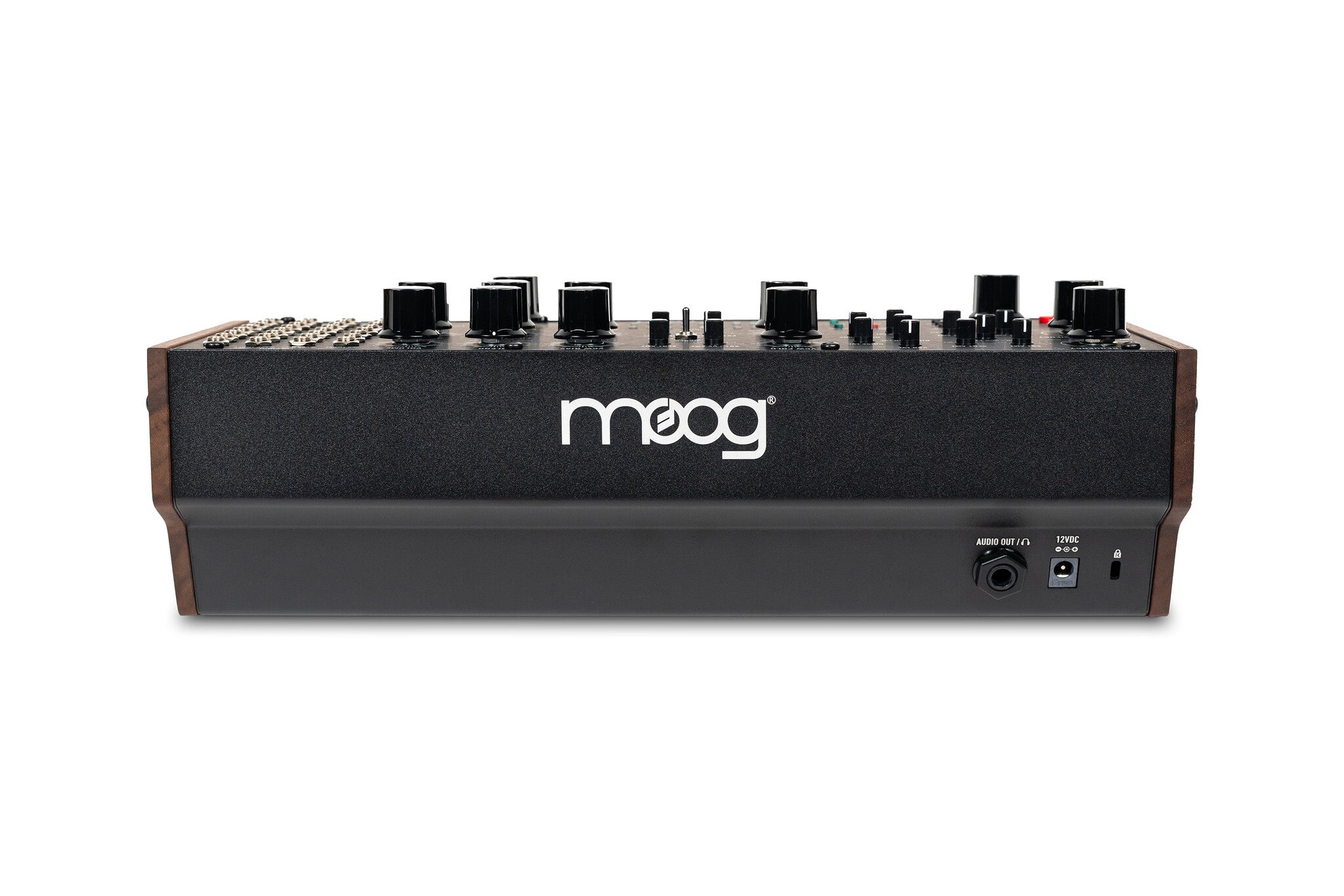

REAR PANEL
AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument

POWER: Power Supply connection
SECURITY: Kensington Lock slot

POWER SUPPLY (INCLUDED)
STYLE: Wall adapter; barrel connection; center-pin positive
INPUT: 100 – 240VAC; 50 Hz – 60 Hz
OUTPUT: +12VDC; 1200mA

POWER CONSUMPTION
TYPICAL: 4.0 W
EURORACK SPECS
CURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header)
MOUNTING DIMS: 60HP (18mm Module Depth)

IN THE BOX

- Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
- Power Supply
- Patch Sheet Overlays
- Patch Cables (5x 12")
- Registration Card
- Quickstart Guide
- Cheat Codes
- Safety & Warranty Manual
