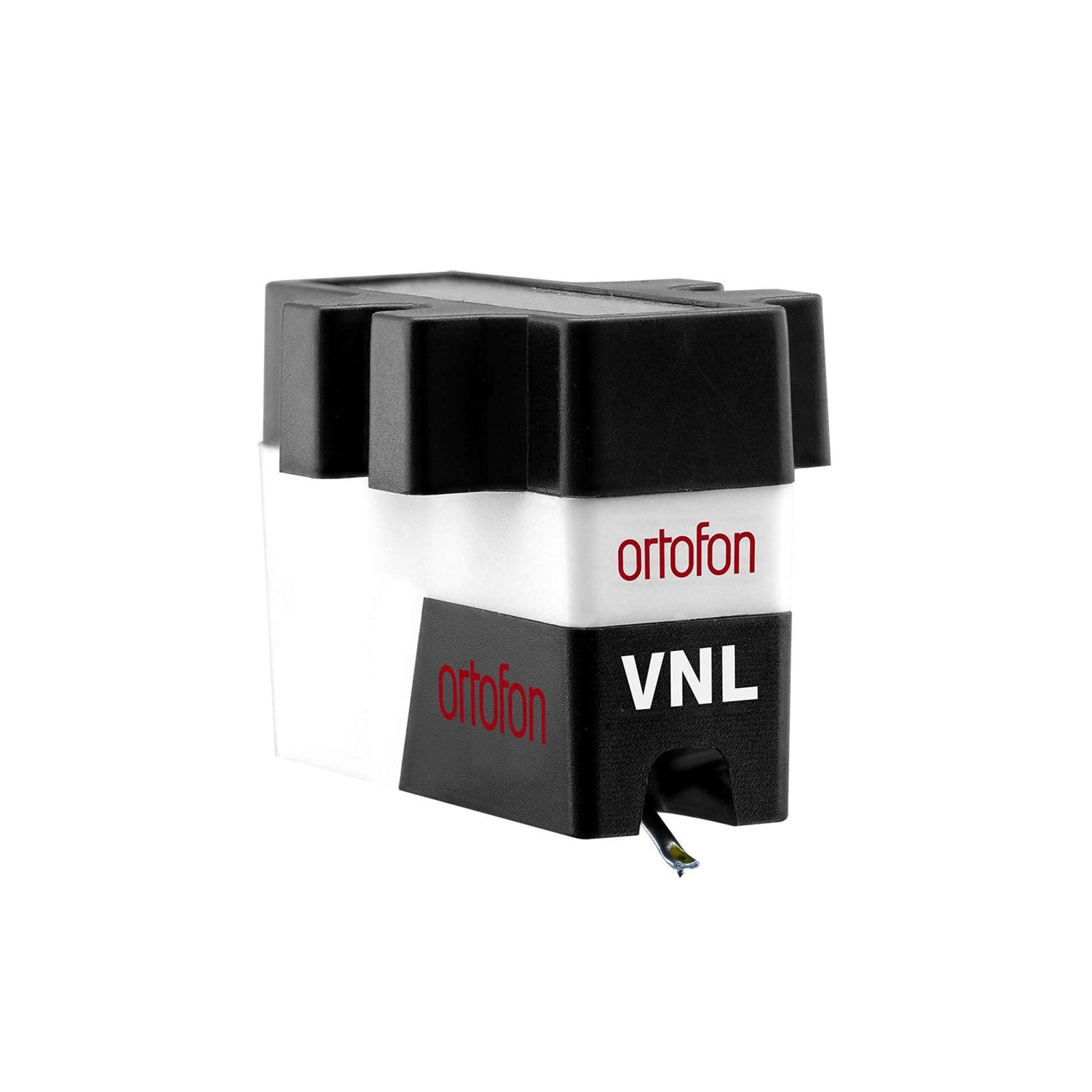

Ortofon VNL
Ortofon VNL
Pieejams pasūtīšanai
Estimated Shipping Widget will be displayed here!
Apraksts / Specifikācija
Apraksts / Specifikācija
Even before the launch of the Concorde MkII, we have always studied the feedback of our customers and how they utilize our products.
Skilled DJs demand specialized tools that can help them push their creativity to the edge – consistently testing the boundaries in the realm of performance.
Understanding this and reflecting our extensive experience in industrial design and technological know-how, we present the new Ortofon VNL cartridge – a model tailored uniquely to the unrelenting demands of modern turntablists and portablists.
The new VNL features and improvements
Extra resistance to hardcore scratching and back spinning
High tracking performance for both DVS usage and real vinyl
Optimal balance of output and of sound quality
Technological improvements have been applied for the benefits of all users:
– Ultrasonic welding of the components ensures high rigidity and freedom from resonances.
– Robotic assembly of stylus assembly offers high precision and uniformity of industrial production.
VNL technical data
- Stylus TypeSpherical
- Tracking Force4.0 g
- Output Voltage6 mV
- Frequency Range20-20.000 Hz
Output voltage at 1000Hz, 5cm/sec. – 6 mV
Channel separation at 1kHz – 20 dB
Frequency response 20 Hz – 20 kHz -2/+4 dB
Tracking ability at 315 Hz at recommended tracking force:
| VNL I | 100 μm |
| VNL II | 90 μm |
| VNL III | 90 μm |
Compliance, dynamic lateral:
| VNL I | 16 μm/m N |
| VNL II | 15 μm/m N |
| VNL III | 14 μm/m N |
Tracking force range – 3 – 5 g
Tracking force recommended – 4 g
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-600 pF
Cartridge weight – 6,5 g
Replacement stylus units: VNL I, VNL II, VNL III
Antiskating: for best backcueing performance use “0”
More information you can find here: Ortofon VNL
