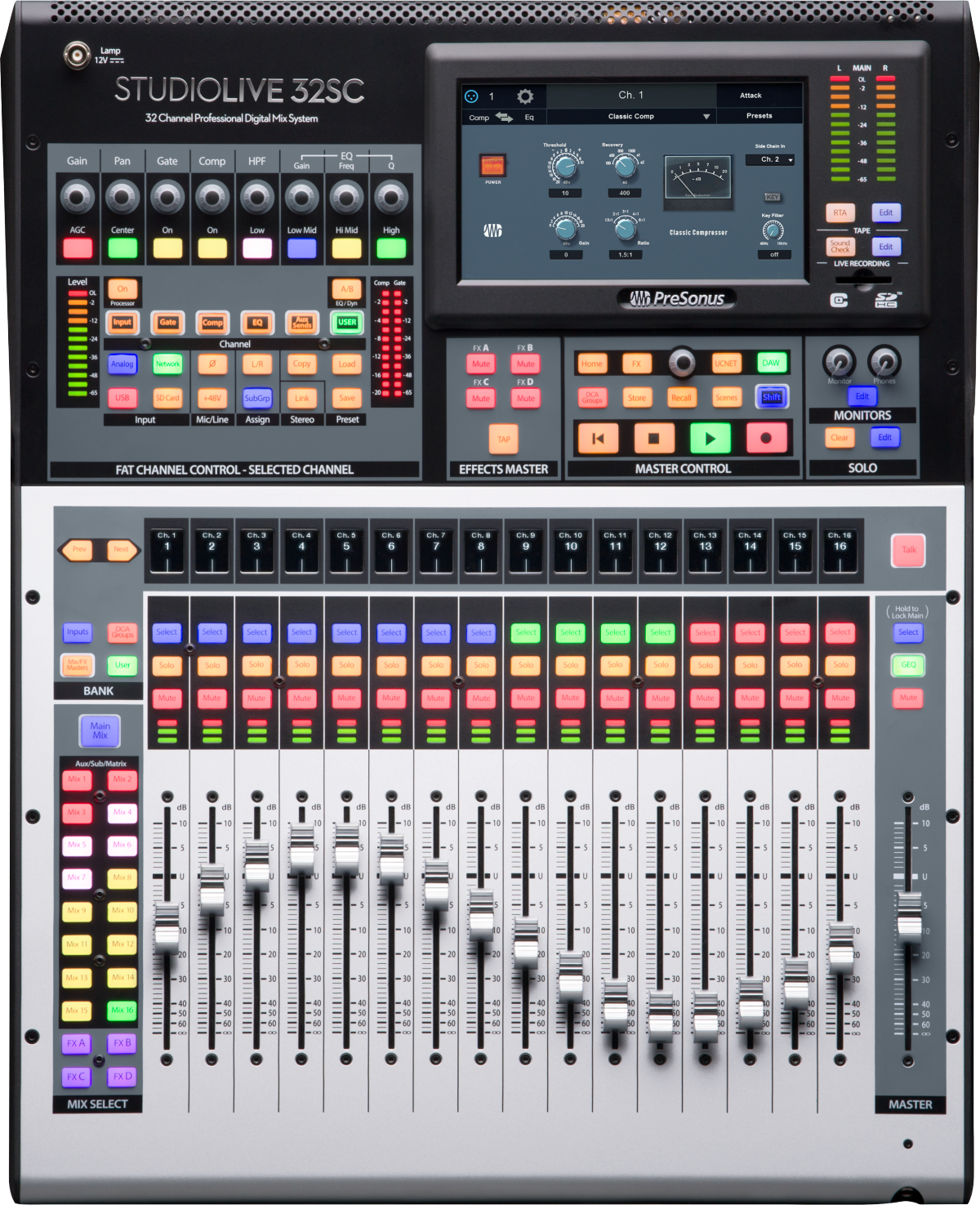

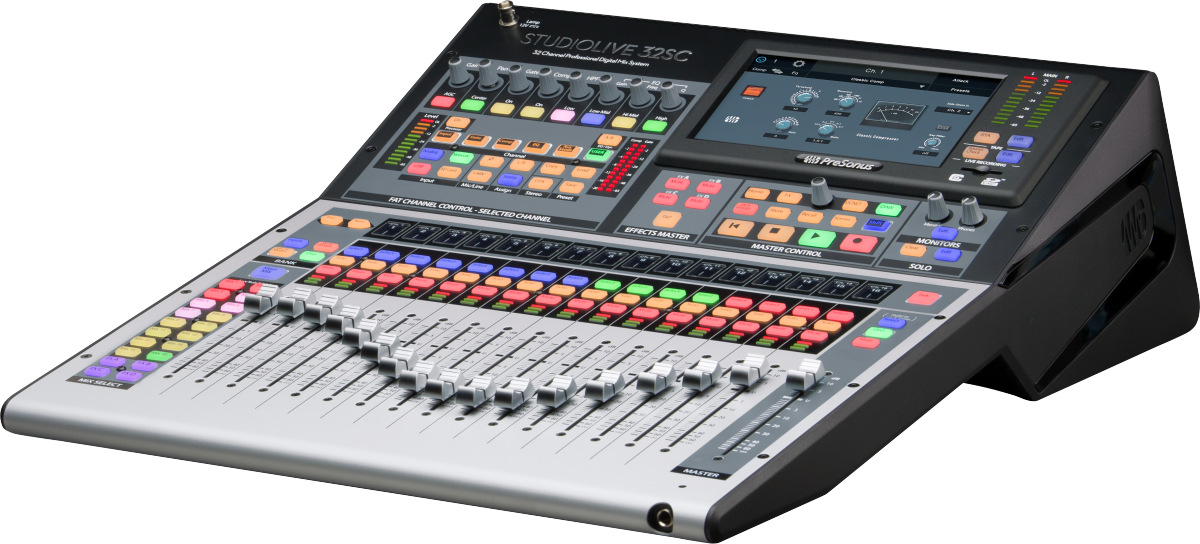

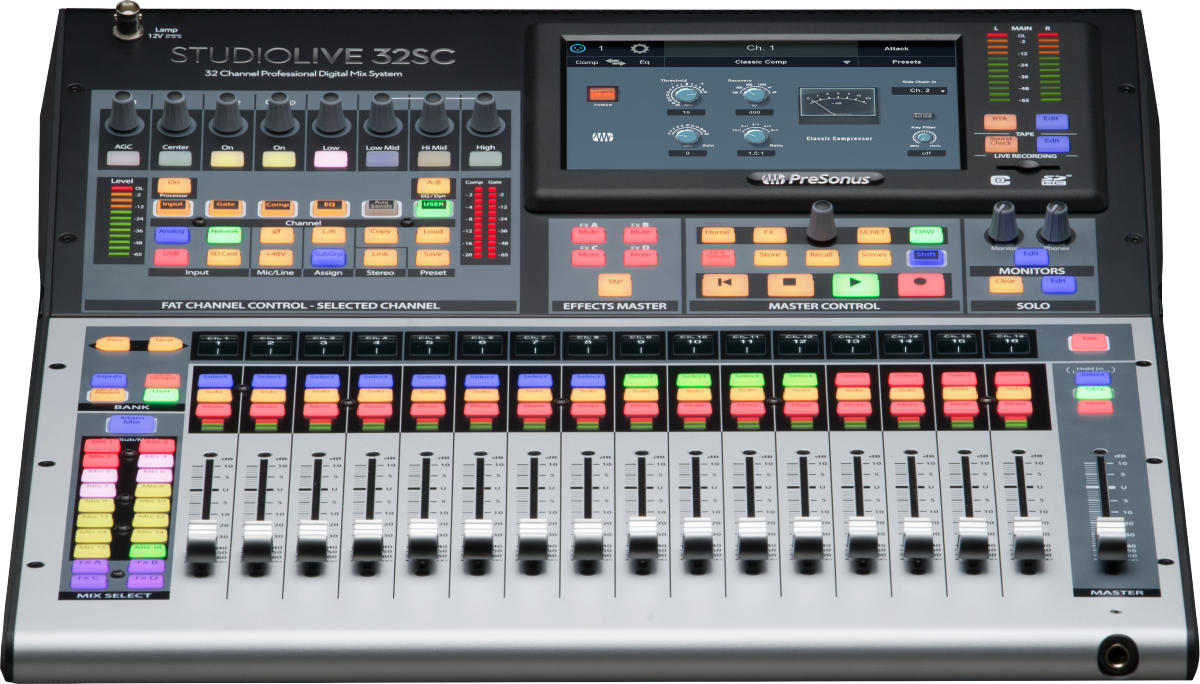

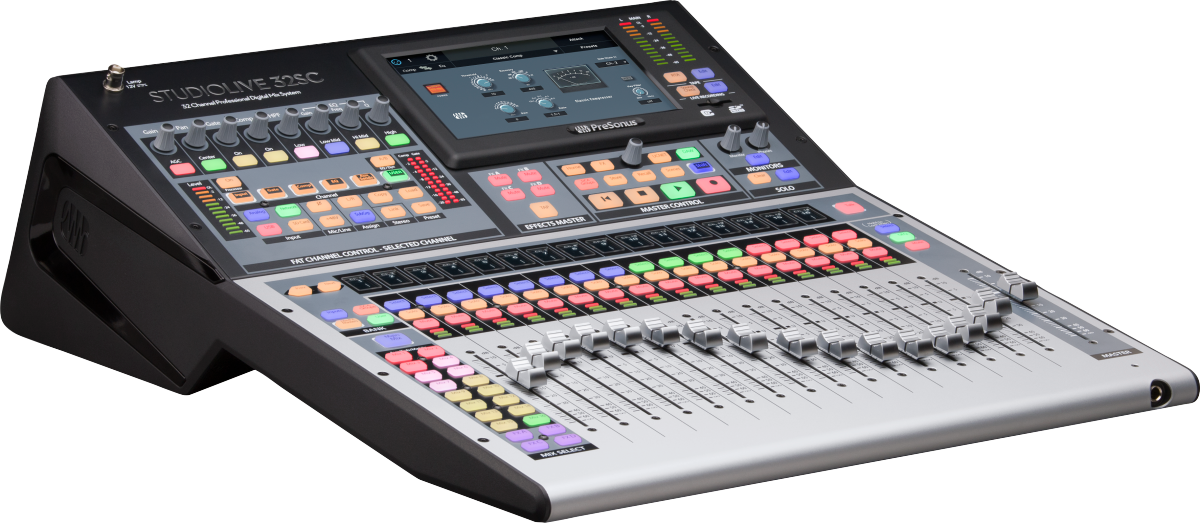

A 32-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive 32SC is a compact digital mixer that can compete with its bigger brothers, particularly when you consider its price. Thanks to AVB, it’s easily expandable—readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for additional inputs. The 32SC’s 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes—your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage-style EQ and classic compression options on every input channel and output bus.
The 32SC also ships with PreSonus Capture recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.
FEATURES
Portable, rack-mountable, and flexible digital console for installed sound, mobile, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
Fully recallable 32-channel digital mixing console
Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
Built-in 128-channel (64x64) USB interface—the most of any mixer
Onboard multitrack SD Card recorder with true Virtual Soundcheck
16 FlexMixes (aux mixes, subgroups, or matrix mixes)
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture
Electronics
1/4" TRS Active Stereo
VOLTAGE
220-240V EU
POWER REQUIREMENTS
85W (Continuous)
PHANTOM POWER
48 VDC, Switchable Per Channel (±2 VDC)
Performance
24
DIGITAL AUDIO DYNAMIC RANGE
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS=+18 dBu
DIGITAL AUDIO TOTAL SYSTEM LATENCY 1.9 ms (local routing, analog in-analog out, all processing active)

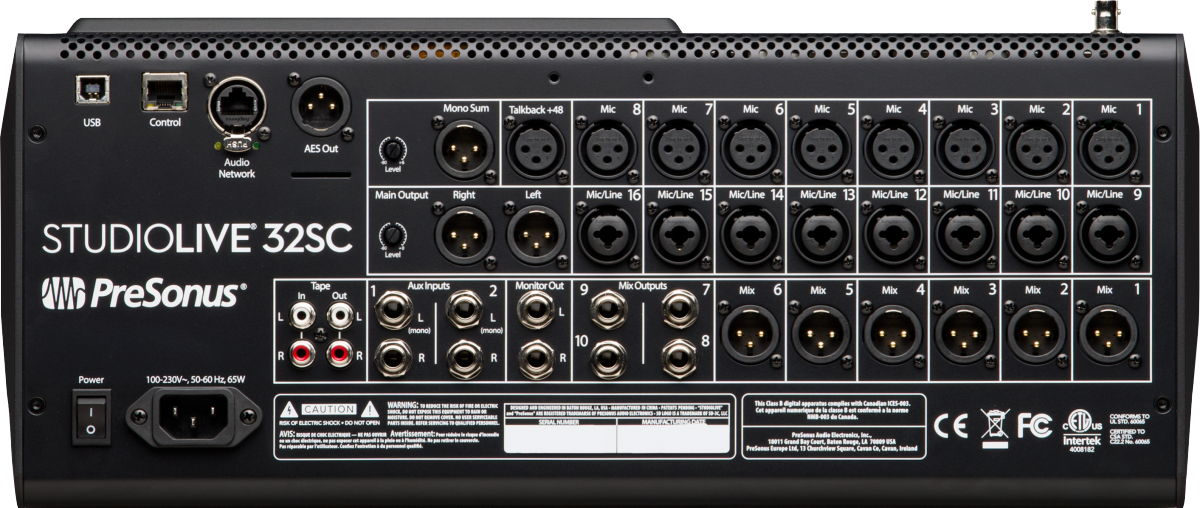

Hardware
XLR Male
DIGITAL AUDIO AVB AUDIO NETWORK PORTS
Locking XLR Ethernet
DIGITAL AUDIO NETWORK CONTROL PORT
RJ-45
DIGITAL AUDIO USB RECORDING PORT
USB 2.0, Type-B
TAPE CONNECTION TYPE
RCA Female, Unbalanced (Stereo Pair)
Inputs
1/4" TRS Female, Balanced
LINE INPUTS FREQUENCY RESPONSE20-20 kHz (±0.5 dBu at Unity Gain)
LINE INPUTS IMPEDANCE 10 kΩ
LINE INPUTS MAXIMUM LEVEL=+18 dBu
LINE INPUTS SIGNAL TO NOISE RATIO94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
LINE INPUTS TOTAL HARMONIC DISTORTION<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain)
MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB)
1 kΩ
MICROPHONE PREAMP MAXIMUM INPUT LEVEL =+12 dBu (Unity Gain)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
A 32-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive 32SC is a compact digital mixer that can compete with its bigger brothers, particularly when you consider its price. Thanks to AVB, it’s easily expandable—readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for additional inputs. The 32SC’s 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes—your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage-style EQ and classic compression options on every input channel and output bus.
The 32SC also ships with PreSonus Capture recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.
FEATURES
Portable, rack-mountable, and flexible digital console for installed sound, mobile, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
Fully recallable 32-channel digital mixing console
Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
Built-in 128-channel (64x64) USB interface—the most of any mixer
Onboard multitrack SD Card recorder with true Virtual Soundcheck
16 FlexMixes (aux mixes, subgroups, or matrix mixes)
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture
Electronics
1/4" TRS Active Stereo
VOLTAGE
220-240V EU
POWER REQUIREMENTS
85W (Continuous)
PHANTOM POWER
48 VDC, Switchable Per Channel (±2 VDC)
Performance
24
DIGITAL AUDIO DYNAMIC RANGE
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS=+18 dBu
DIGITAL AUDIO TOTAL SYSTEM LATENCY 1.9 ms (local routing, analog in-analog out, all processing active)
Hardware
XLR Male
DIGITAL AUDIO AVB AUDIO NETWORK PORTS
Locking XLR Ethernet
DIGITAL AUDIO NETWORK CONTROL PORT
RJ-45
DIGITAL AUDIO USB RECORDING PORT
USB 2.0, Type-B
TAPE CONNECTION TYPE
RCA Female, Unbalanced (Stereo Pair)
Inputs
1/4" TRS Female, Balanced
LINE INPUTS FREQUENCY RESPONSE20-20 kHz (±0.5 dBu at Unity Gain)
LINE INPUTS IMPEDANCE 10 kΩ
LINE INPUTS MAXIMUM LEVEL=+18 dBu
LINE INPUTS SIGNAL TO NOISE RATIO94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
LINE INPUTS TOTAL HARMONIC DISTORTION<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain)
MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB)
1 kΩ
MICROPHONE PREAMP MAXIMUM INPUT LEVEL =+12 dBu (Unity Gain)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
TAPE MAXIMUM INPUT LEVEL +12 dBu, ±0.5 dBu
Outputs
20 Hz to 20 kHz, +/-0.5 dB
100 mW/ch. @ 60Ω load
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
1/4" TRS Female, Balanced
=+18 dBu, ±0.5 dBu
100 Ohms
+18 dBu, ±0.5 dBu
100 Ohms
Hardware
XLR Male
Locking XLR Ethernet
RJ-45
USB 2.0, Type-B
RCA Female, Unbalanced (Stereo Pair)
Presonus StudioLive 32SC
€1.979,00
€1.979,00
€2.699,00
/
