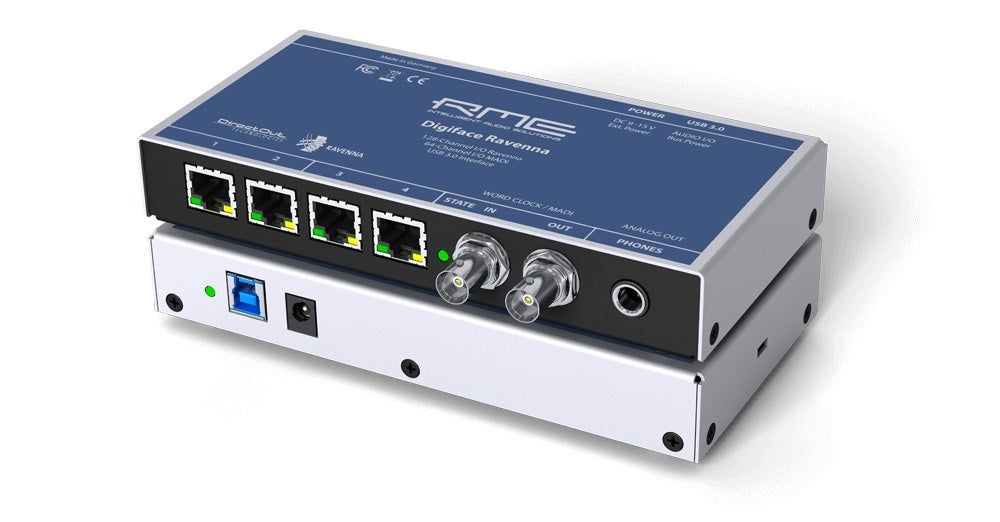

Mobile RAVENNA Solution via USB

The combination of RME’s renowned drivers (Mac/Windows) and DirectOut’s RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RAVENNA & MADI

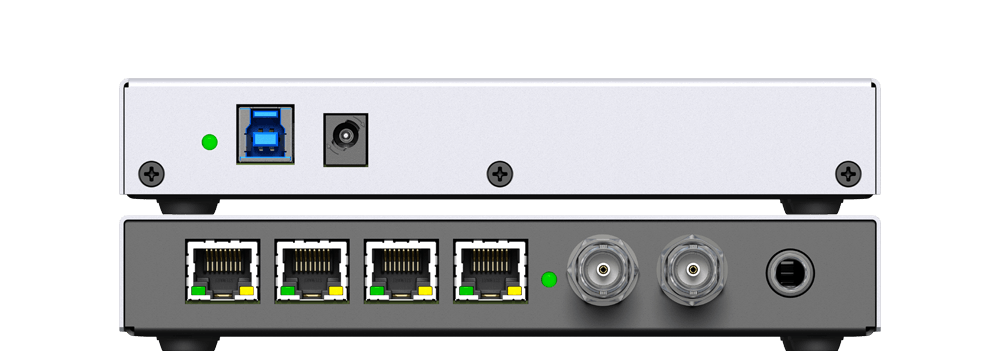

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

More information you can find here: RME Digiface Ravenna
