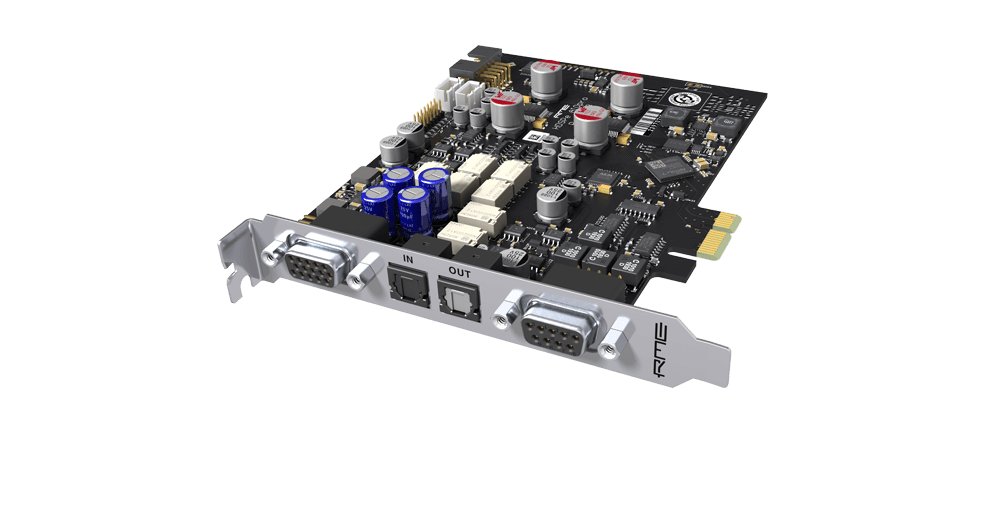

RME HDSPe AIO Pro
RME HDSPe AIO Pro
Pieejams pasūtīšanai
Estimated Shipping Widget will be displayed here!



        Apraksts / Specifikācija


  Apraksts / Specifikācija
Utilizing technology from RME's top-shelf ADI-2 Pro AD/DA converter, the HDSPe AIO Pro delivers significant gains in signal-to-noise ratio performance while offering selectable reference levels and ultralow latency.

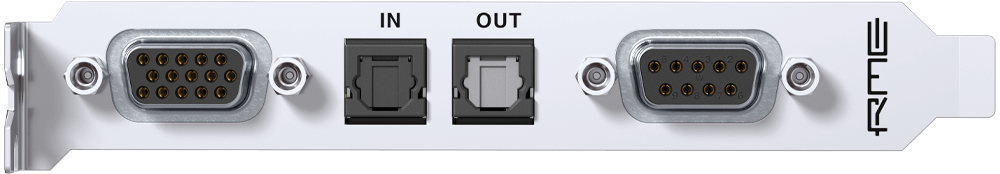

Between the card and its included breakout cables, there are eight channels of ADAT I/O, stereo AES/EBU and S/PDIF I/O, unbalanced stereo analog I/O, DIN 5-pin MIDI I/O, and a high-power headphone output, all simultaneously operational. The SteadyClock FS clock section ensures maximum jitter suppression of external clock signals along with low inherent jitter. Plus, optional modules can be used to add timecode and word clock connections for tight synchronization.
- Stereo analog input and output with four selectable reference levels
- All analog I/Os capable of 24-bit / 192 kHz with a constant number of available channels
- ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- S/PDIF stereo digital I/O, capable of 192 kHz
- AES/EBU stereo digital I/O, capable of 192 kHz
- High-power headphone output with a separate D/A converter
- MIDI I/O with 16 channels of high-speed MIDI
- DIGICheck, RME's unique metering and analyzing tool
- TotalMix FX, a 760-channel mixer with 42-bit internal resolution
- Native PCI Express uses no PCI to PCI Express bridge
More information - RME
