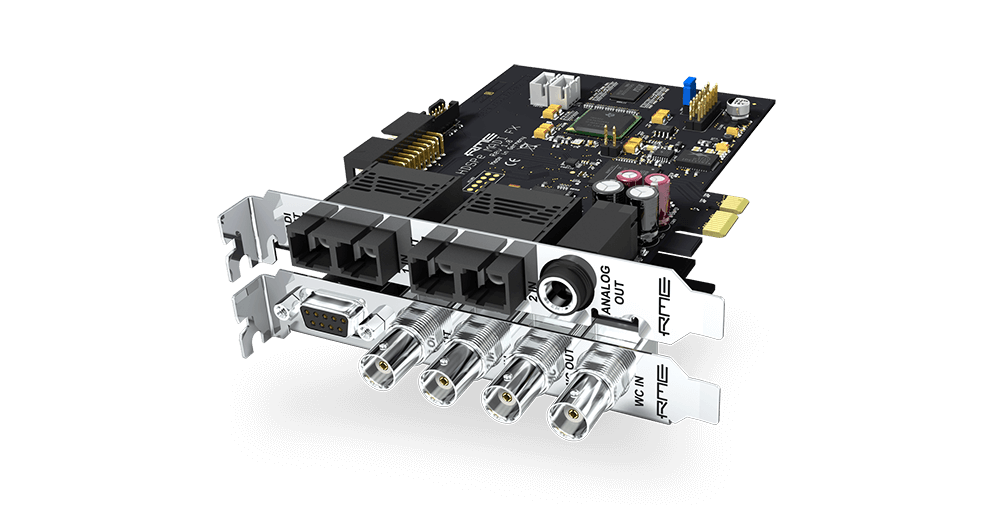

• Two-card PCIe solution for transmitting a huge number of audio channels using the MADI protocol
• 194 input and 196 output channels when used in conjunction with the two-channel AES/EBU I/O and the analog monitor output
• Wordclock connection and four MIDI I/Os
• Only a single PCIe slot is required on the motherboard, plus one free slot opening on the case
• Efficiency technology automatically deactivates currently unused channels, so that they require no processing power or bandwidth
• Special version of TotalMix FX allows using the enormous channel count in an efficient and practical manner and ensures that the 4,096-channel mixer of the MADI FX responds just as smoothly as its 1,800-channel counterpart in the Fireface UFX
• Faster DSP allows for a greater number of EQs and compressors
• To enable ergonomic handling of the enormous number of channels, an option makes it possible to visually hide unused channels
• Complete "Hide setups" can be saved at any time, and switched with a simple mouse click
• The 192 kHz RME effects engine allows latency-free monitoring with numerous effects like EQs, compressors, reverb, and echo, rendered directly on the hardware of the card and independent of the DAW software being used
• TotalMix matrix allows for using the card as powerful MADI router, with the ability to route each channel individually, even with separate level settings for each routing
• Seamless Redundancy Operation utilizes the three MADI receivers to provide state-of-the-art fail safe operation with seamless switching in the event of failure
• Includes SteadyClock active jitter suppression, and DIGICheck meter and analysis toolbox (including EBU R128 metering)
• Nearly identical operation of the card under Windows and Mac OS
