Roland TR-1000
Roland TR-1000
Apraksts / Specifikācija
Apraksts / Specifikācija
Tomorrow Returns

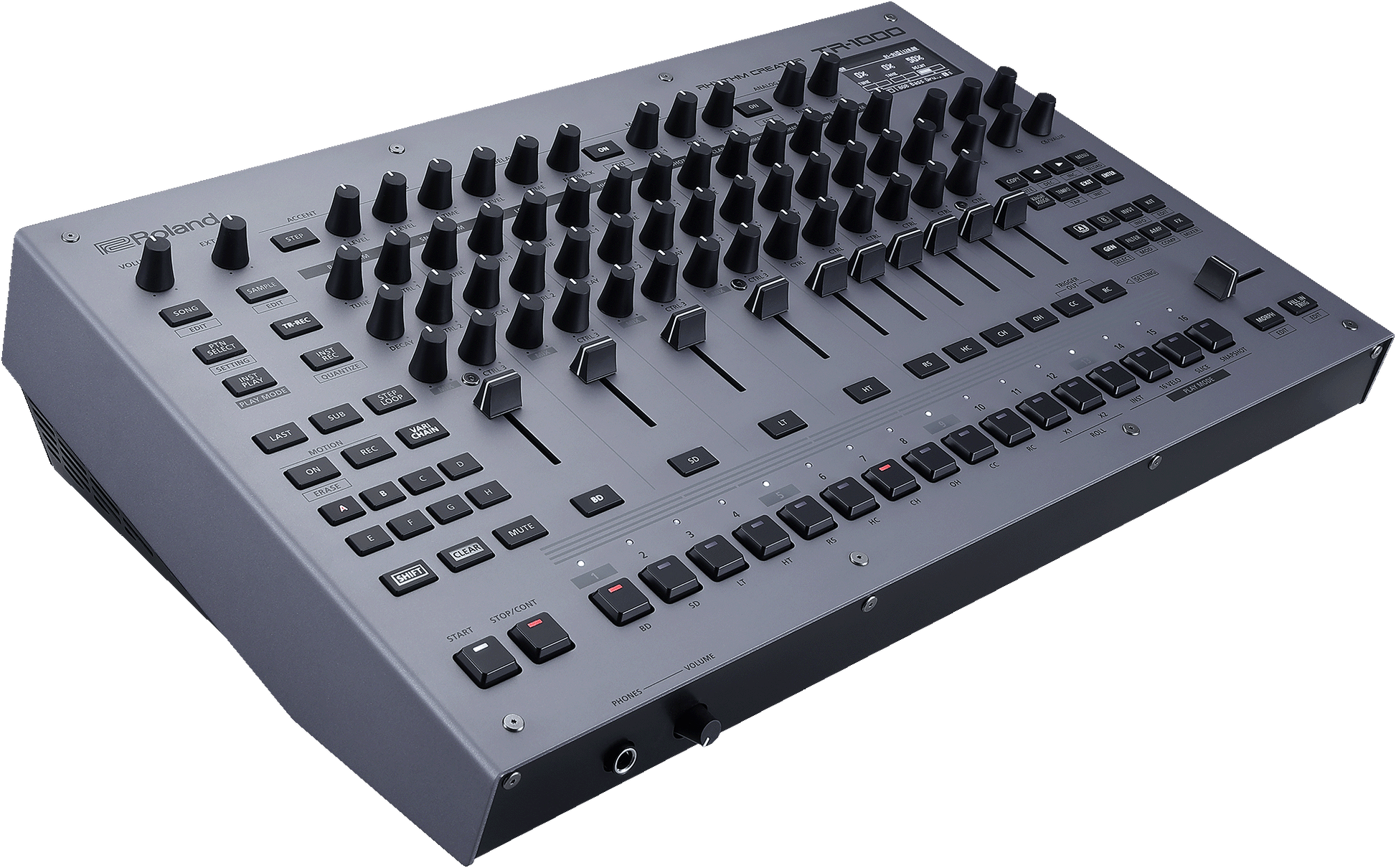

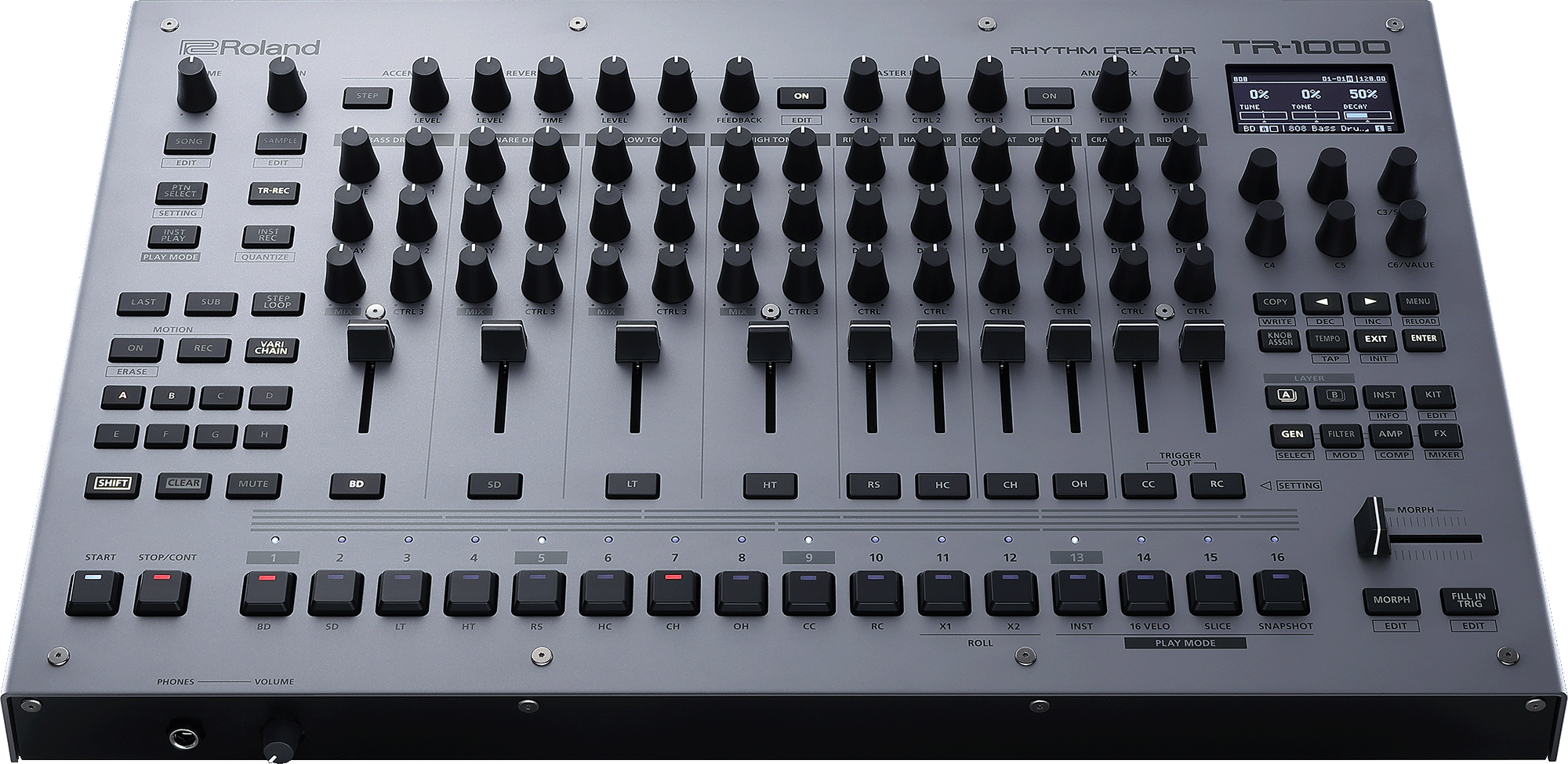

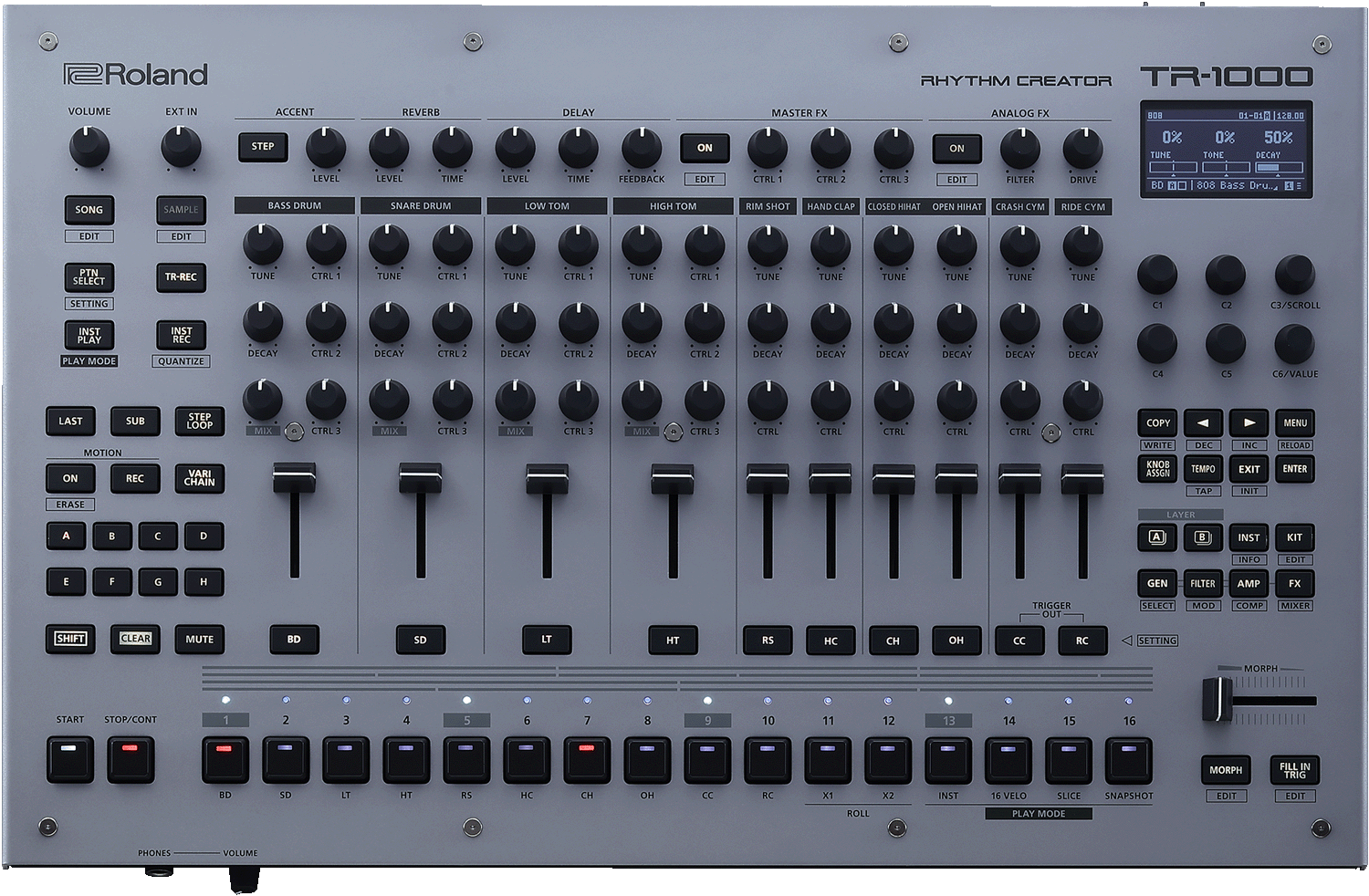

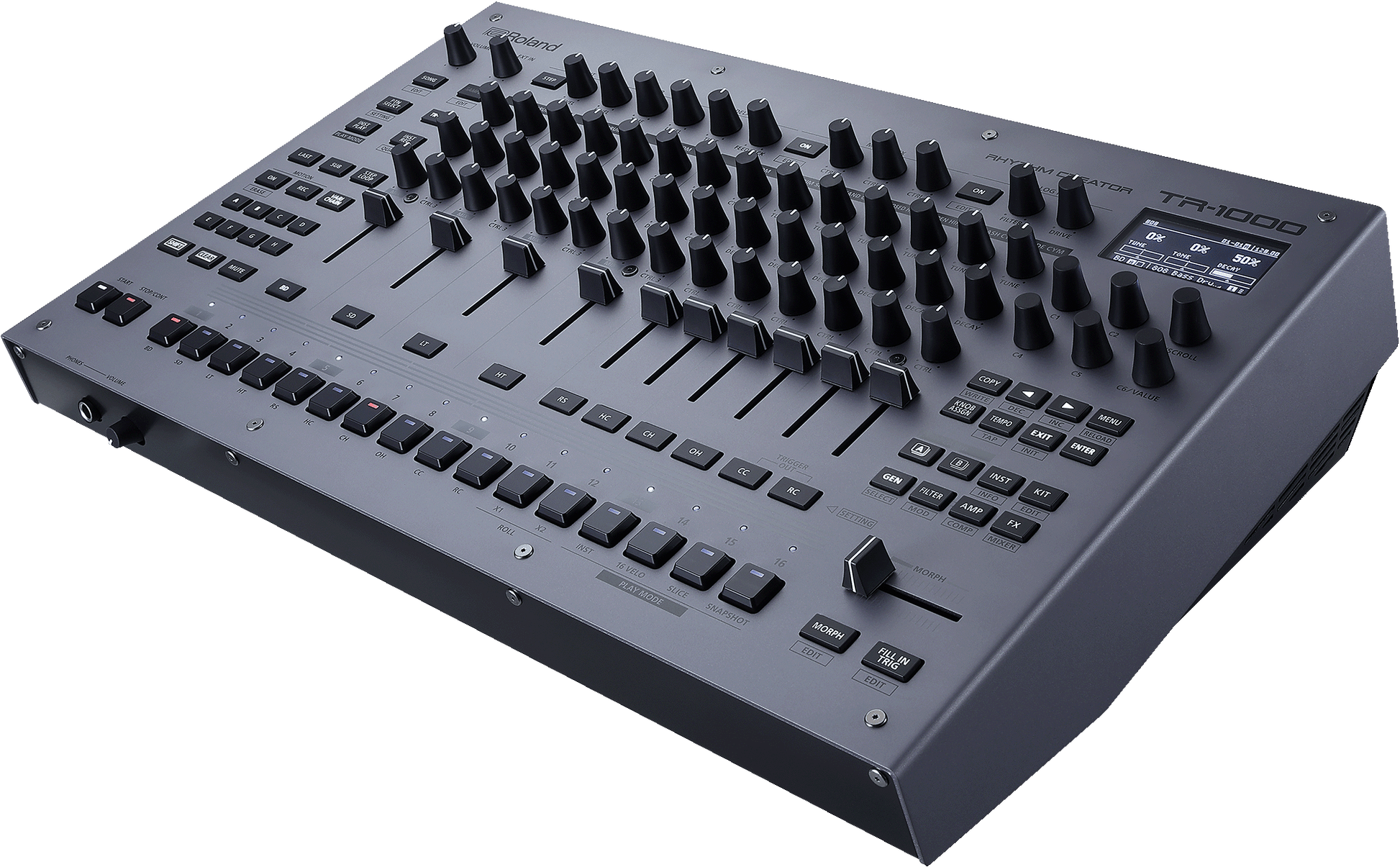

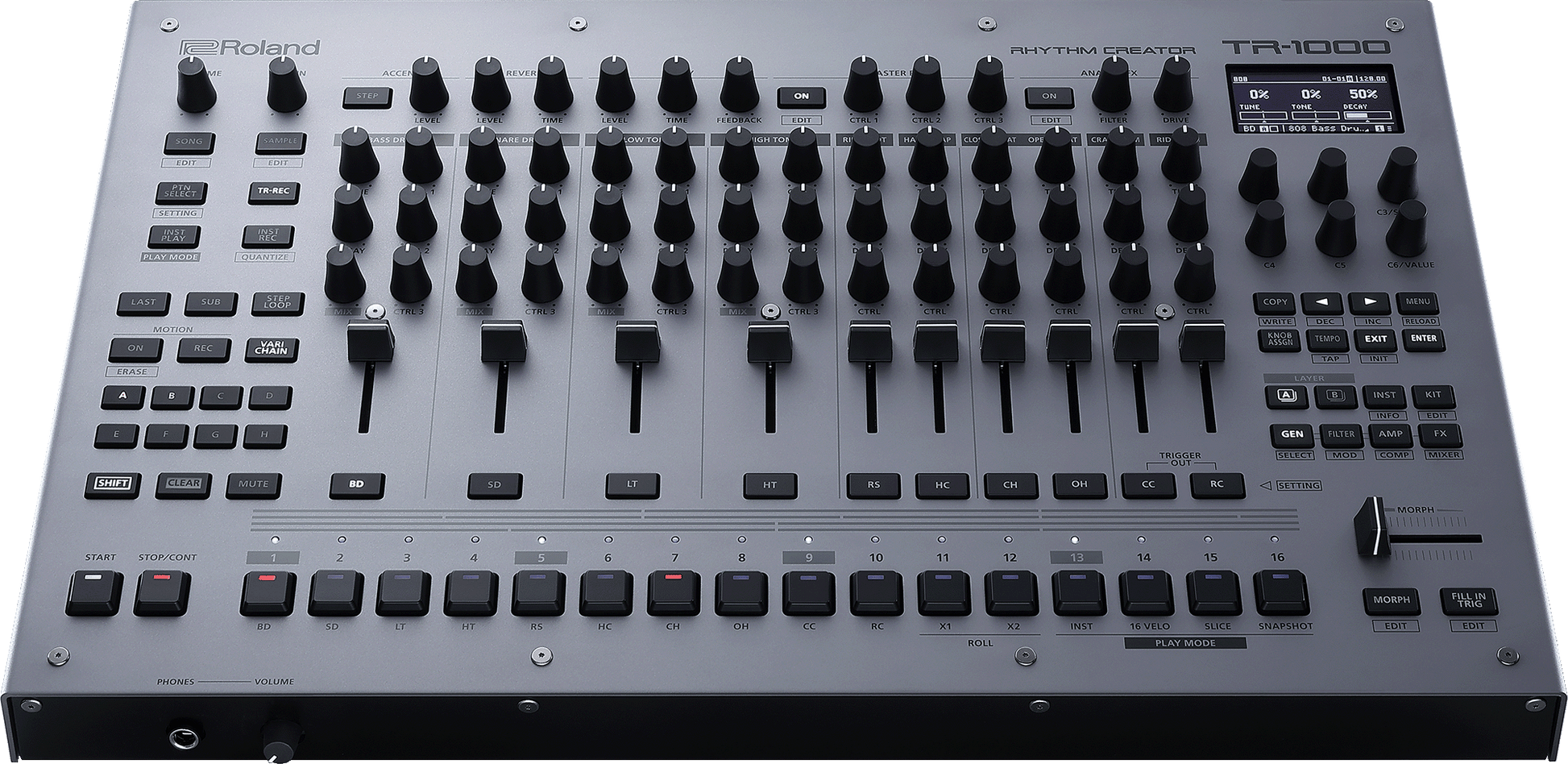

Meet the TR-1000 Rhythm Creator, Roland’s most advanced drum machine ever. Built from the ground up with input from influential artists and the community, the TR-1000 combines analog warmth, digital precision, stereo sampling, and deep sequencing in a single modern instrument. Whether you're a producer, performer, or sound designer, this is the rhythm machine you've been waiting for.
-
Specifications:
- User Drum Kits
- 2,048 (128 Kit x 16 Project)
- User Patterns
- 2,048 (128 Pattern x 16 Project)
- Step Sequencer
- Layer Track x 4
Single Track x 6
1 exclusive part for trigger out
16 steps per 1 variation
8 (A - H) variations per 1 pattern
4 Fill-in patterns per 1 pattern - Generator
- Analog: 16 tones
ACB: 75 tones
FM: 7 tones
PCM: 340 tones
Sample: 2,121 tones - Sampler
- Internal Data Format: 16-bit linear
Import Format: WAV, AIFF, MP3
* Dedicated software supports WAV, AIFF, MP3, FLAC, M4A.
Sample Rate: 48 kHz
Sampling Time: The maximum is 16 minutes (1 Sample). - Effects
- FILTER: 2 types
AMP: 2 types
COMP: 2 types
INST FX: 17 types
REVERB: 6 types
DELAY: 4 types
MASTER FX: 14 types
ANALOG FX: FILTER, DRIVE - Internal Storage
- Size: 46 GB (USER Area)
- Display
- Graphic OLED display
- External Storage
- USB flash drive (sold separately) for backup, restore, import, and export functions

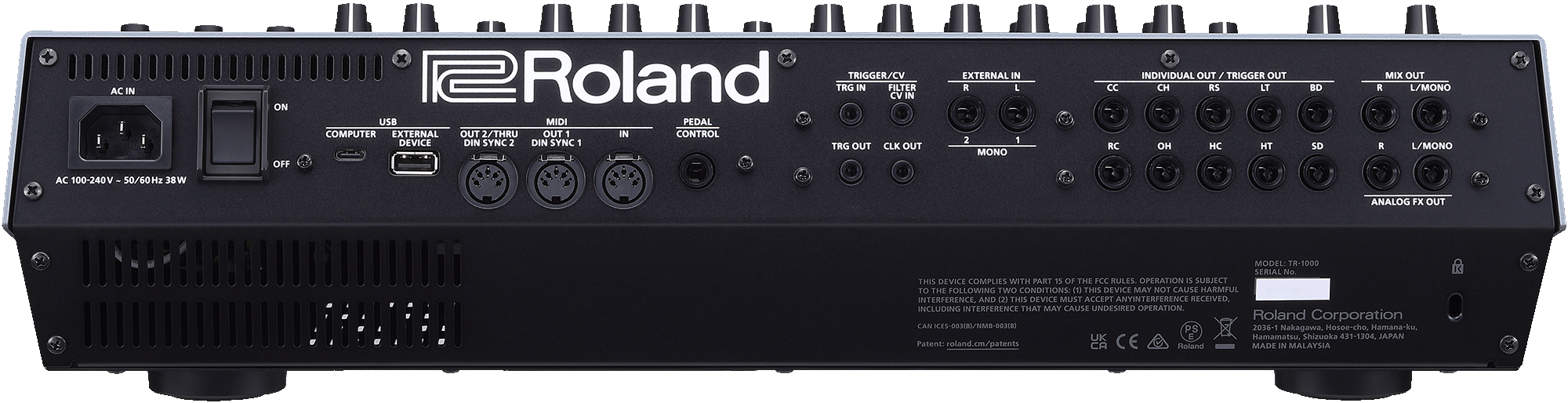

- Connectors
- PHONES jack: Stereo 1/4-inch phone type
MIX OUT (L/MONO,R) jacks: 1/4-inch phone type
ANALOG FX OUT (L/MONO, R ) jacks: 1/4-inch phone type
INDIVIDUAL OUT/TRIGGER OUT (BD--RC) jacks: 1/4-inch phone type
EXTERNAL IN (L/MONO 1, R/MONO 2) jacks: 1/4-inch phone type
TRIGGER/CV (TRG IN, TRG OUT, FILTER CV IN, CLK OUT) jacks: Miniature phone type
PEDAL (CONTROL) jack
MIDI (IN, OUT1 DIN SYNC1, OUT2/THRU DIN SYNC2) jack
USB (COMPUTER) port: USB Type-C(R) (Audio/MIDI)
USB (EXTERNAL DEVICE) port: USB A
AC IN jack - Power Supply
- AC 117--240 V 50/60 Hz
- Power Consumption
- 38 W
*Power consumption when in OFF mode (when the power automatically turns off): 0.2 W - Accessories
- Power cord
Owner's manual
USB Type-C to USB Type-C cable (with ferrite core) - Options (sold separately)
- Pedal Switch: FS-5U, FS-6
Expression Pedal: EV-5
USB flash drive (up to 64 GB)
More info: TR-1000
