Apraksts / Specifikācija

This series of direct boxes features an original input stage built on field-effect transistors (FET), with a bandwidth of 200kHz and an overload margin of 12 dBu. Why do I need so much, you’ll ask? – It gives a wider sound, softness, micro and macro dynamics.

This device can reveal the entire dynamic range of any, even the most sensitive instrument. J2 has increased resistance to ground loop interference. (ground-related noise arising from ground loops)

J series is created with a focus on musical instruments such as – bass guitar, electric guitar, double bass or keys.Thanks to the J-fet input, the J series has a large overload capacity, that makes the instrument sound full and lively.

Analog circuit made on discrete semiconductor elements operating in class A,
without the use of general negative feedbacks;
input resistance - not less than 4.7 MΩ;
input impedance at on. PAD functions - 47 kOhm;
attenuation PAD - 20dB;
noise level unweighted (10-20 kHz) - less than -110 dBu;
non-linear distortion at an input level of -20 dBu (guitar) - less than 0.001%;
THD at input level 0 dBu, 1 kHz - less than 0.0009% (typ. 0.001%);
THD at 0 dBu input level, 100 Hz - less than 0.0009% (typ. 0.001%);
maximum input level (distortion less than 3%) - more than +14 dBu; 4.35 volts (RMS); 12.32 volts (p-p).
maximum input level at on. PAD (distortion less than 3%) - more than +34 dBu;
balanced output impedance (XLR) - less than 33 ohms;

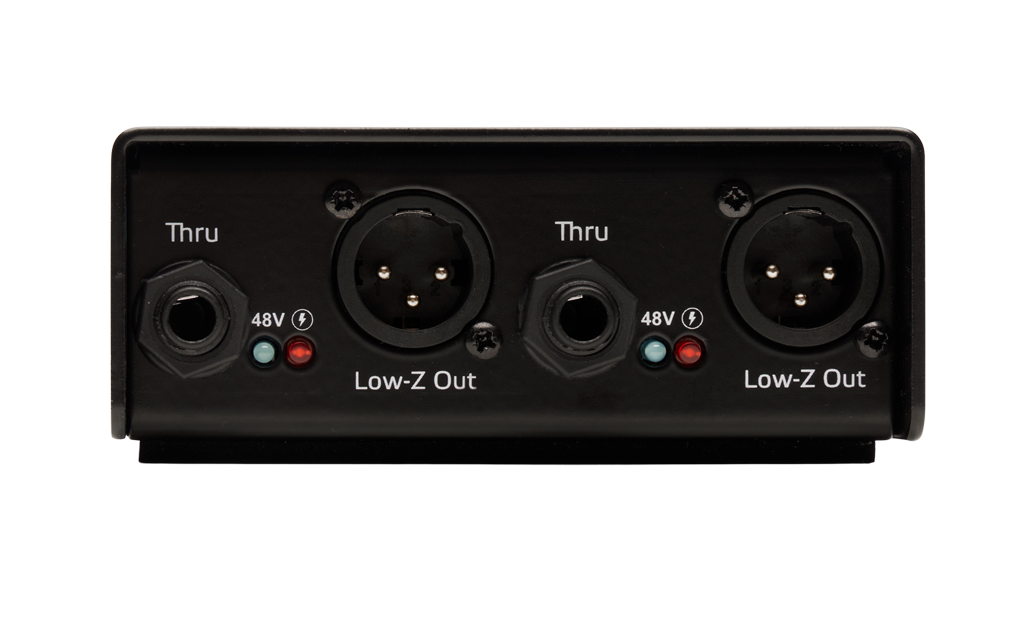

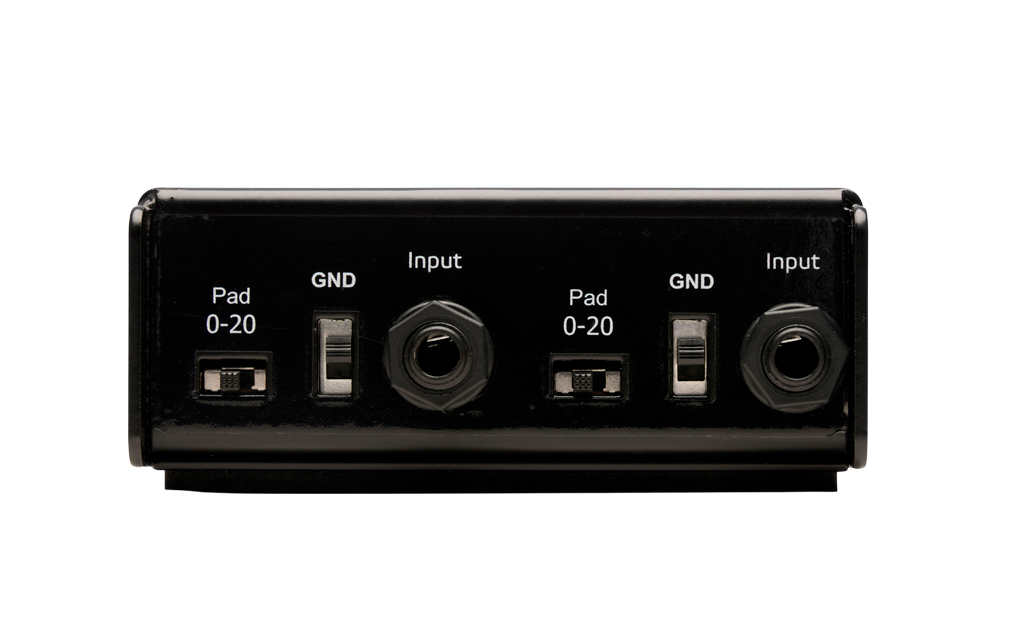

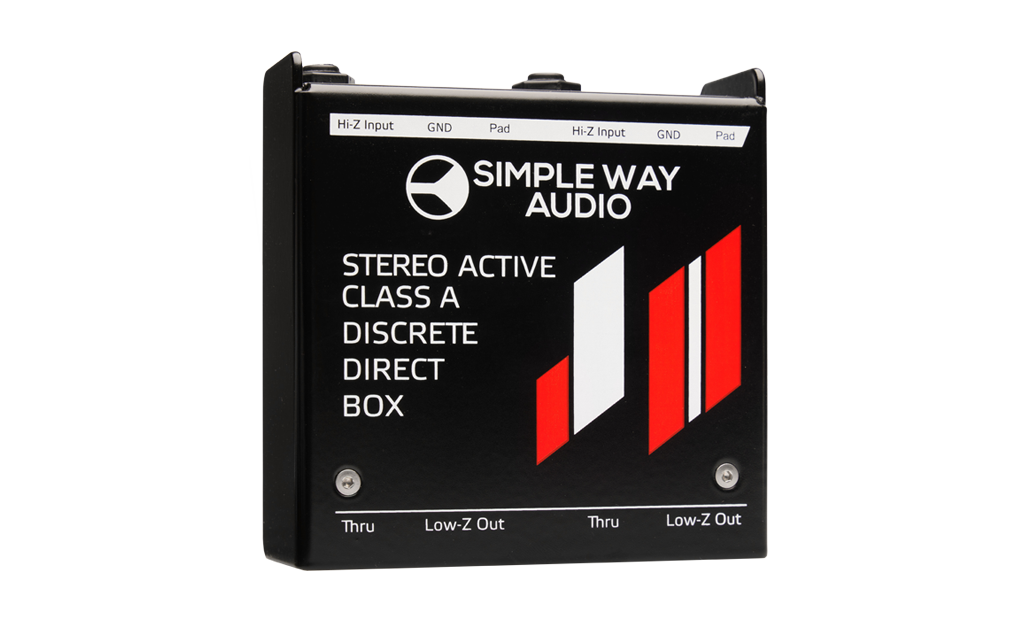

Simple Way Audio Audio Series J2

Name: Simple Way Audio Audio Series J2
Brand: Simple Way Audio
SKU: 1012408
Price: 339.00 EUR
Availability: InStock

Ražotājs: Simple Way Audio

Kategorija: DI Boxes

€339,00

Ieskaitot PVN

Pieejams pasūtīšanai

Estimated Shipping Widget will be displayed here!

2 gadu garantija
14 dienu atgriešanas tiesības
Iegādājies uzreiz vai nomaksā.

Apraksts / Specifikācija

This device can reveal the entire dynamic range of any, even the most sensitive instrument. J2 has increased resistance to ground loop interference. (ground-related noise arising from ground loops)

Analog circuit made on discrete semiconductor elements operating in class A,
without the use of general negative feedbacks;
input resistance - not less than 4.7 MΩ;
input impedance at on. PAD functions - 47 kOhm;
attenuation PAD - 20dB;
noise level unweighted (10-20 kHz) - less than -110 dBu;
non-linear distortion at an input level of -20 dBu (guitar) - less than 0.001%;
THD at input level 0 dBu, 1 kHz - less than 0.0009% (typ. 0.001%);
THD at 0 dBu input level, 100 Hz - less than 0.0009% (typ. 0.001%);
maximum input level (distortion less than 3%) - more than +14 dBu; 4.35 volts (RMS); 12.32 volts (p-p).
maximum input level at on. PAD (distortion less than 3%) - more than +34 dBu;
balanced output impedance (XLR) - less than 33 ohms;
