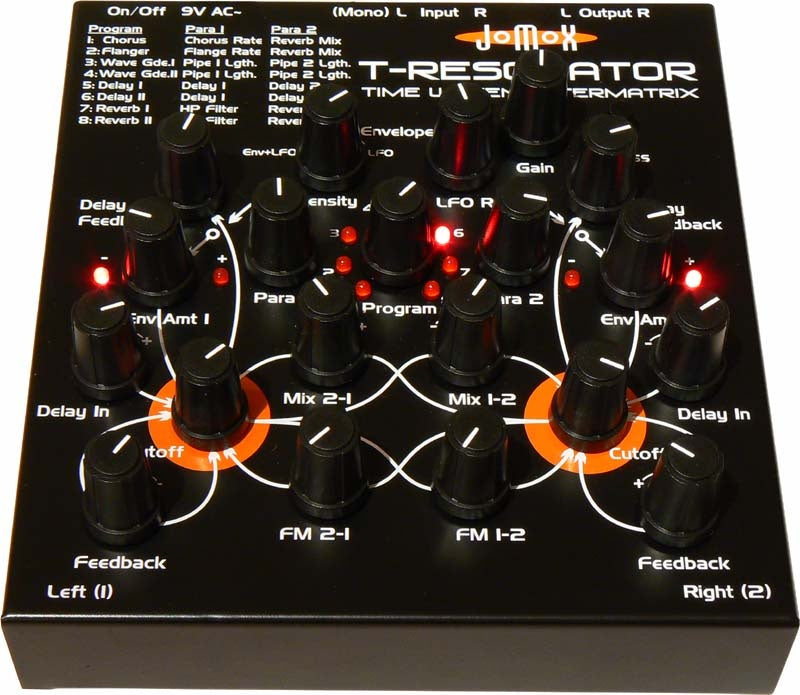

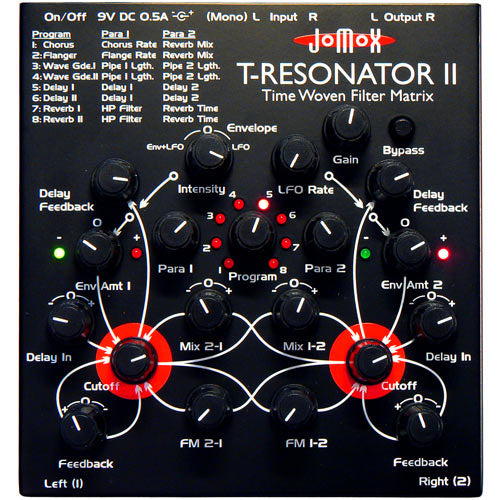

T-Resonator – Analog Feedback Filter Network with Delay

The T-Resonator is a unique fusion of analog and digital sound design. "T" stands for Time – and this device transforms time-based events into a powerful analog feedback filter network.

Think of it as an M-Resonator + Digital Delay, but with much more flexibility:

• Choose from 8 delay algorithms, each with different time ranges, feedback structures, and modulation options.

• Delays range from <1 ms up to 1 second, depending on the selected algorithm.

• Feedback paths run directly through the analog 24 dB low-pass filters, creating rich, organic tones.

From evolving echoes to chaotic resonant feedback, the T-Resonator is designed for creative analog sound design:

• Generate analog tape-style echoes, extreme resonant “waveguide” effects, or screaming distortion.

• Create organic, evolving patterns as feedback loops fold back into themselves.

• Add dynamics with the built-in envelope-following sine LFO, which can be shaped by the incoming audio or run independently.

• Each mix control is neutral in the center position and can be turned left for negative feedback or right for positive feedback.

With its discreet analog filters, digital delay lines, and versatile feedback routing, the T-Resonator is a sound designer’s playground — capable of delivering subtle spatial effects, monstrous bass, or wild, chaotic textures.

Specifications:

• Stereo input / Stereo output

• Envelope follower with LFO

• 2 analog low-pass filters (24 dB)

• 2 delay lines / chorus / reverb

• 8 selectable algorithms

• Positive and cross-feedback options

• FM feedback (bidirectional)

• Adjustable input gain with Hi-Z input (suitable for guitar, mono, or stereo line signals)

• Power: 9V DC, 0.5A
