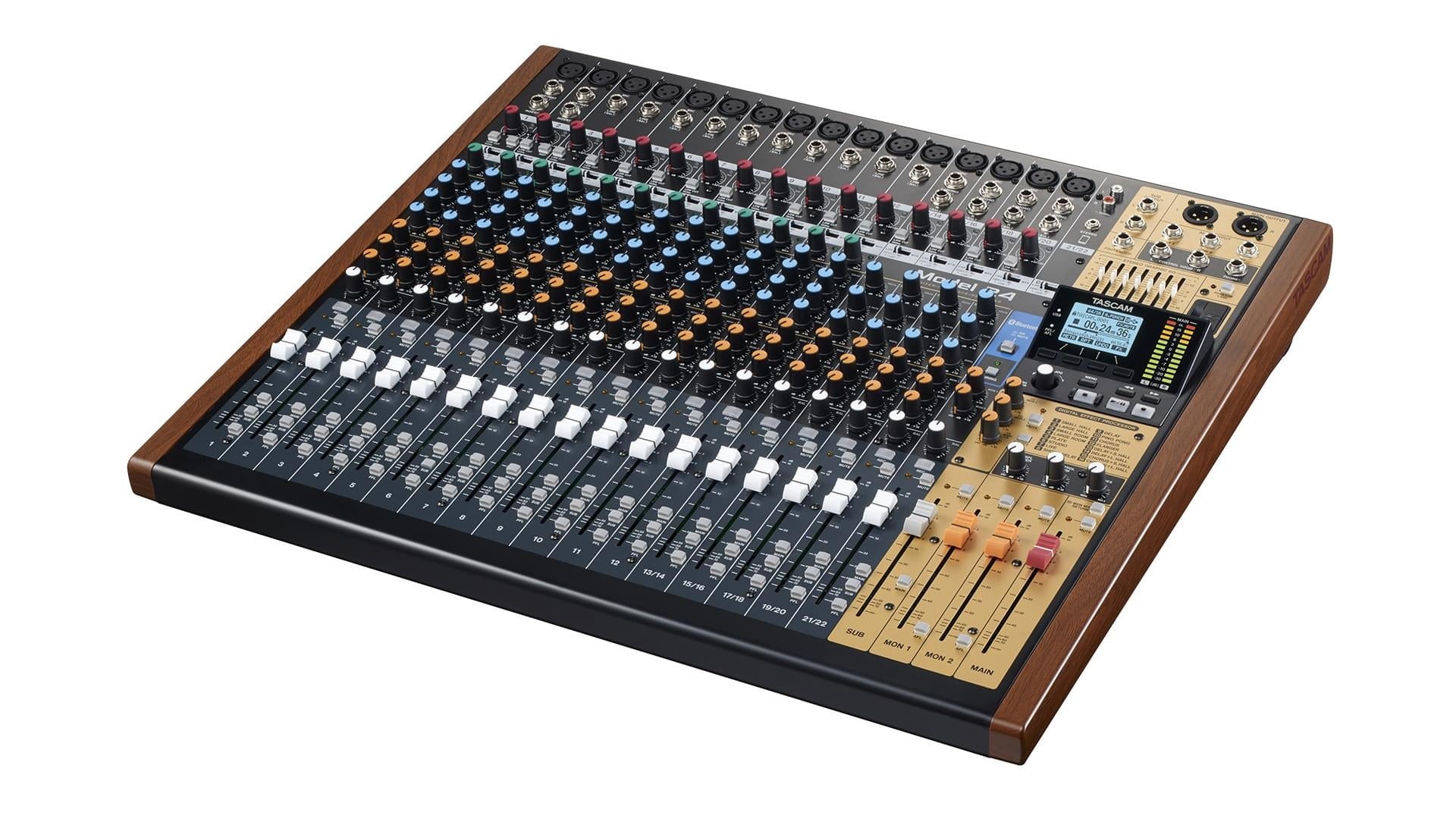

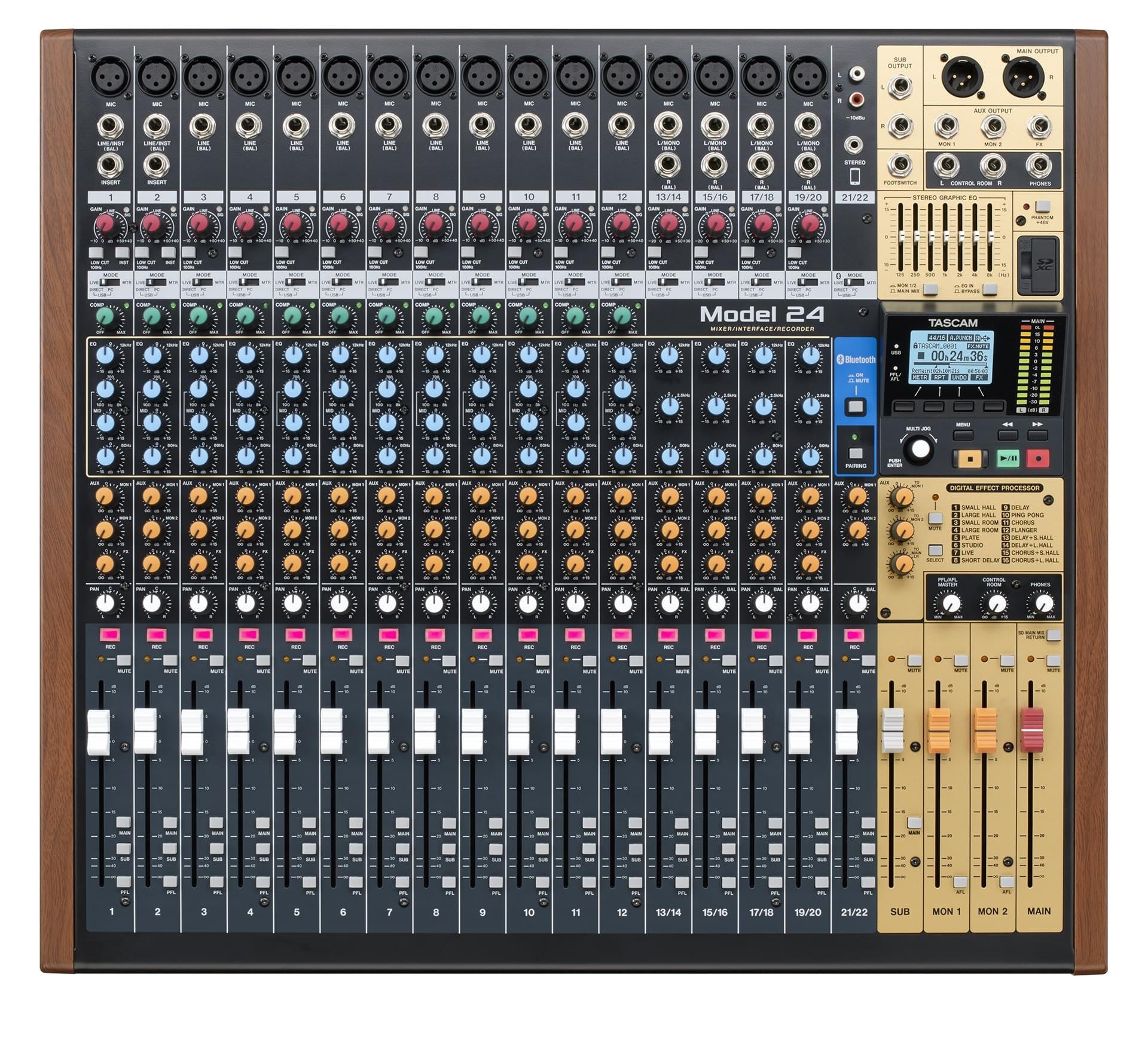

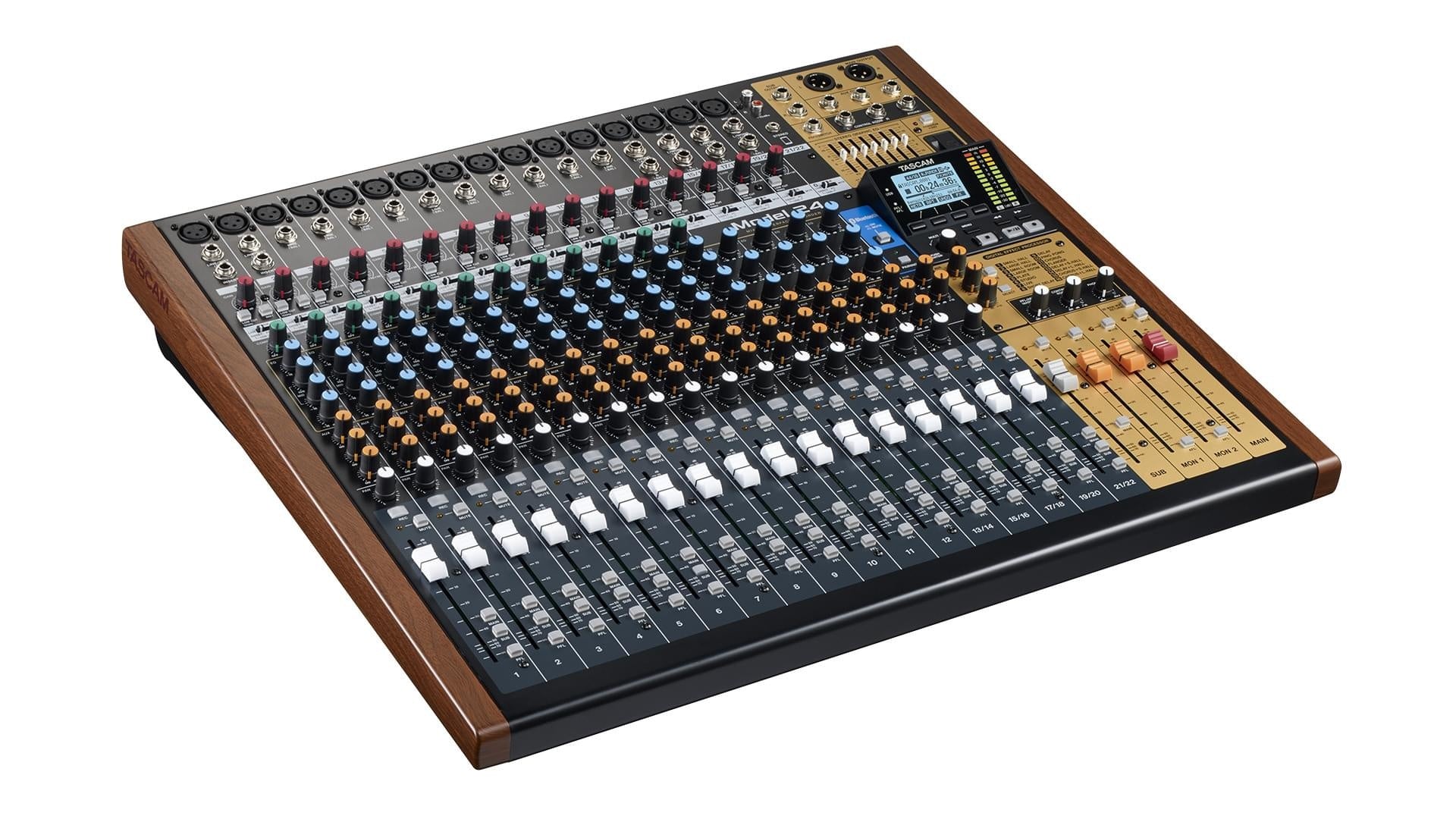

• 22-channel analogue mixing console with built-in 24-track recorder and USB audio interface

Mixer features

• 22 analogue inputs
  • 12 TASCAM Ultra-HDDA microphone preamps with switchable phantom power (48 V) on 12 mono and 4 stereo channels
  • Two high-impedance instrument inputs (channels 1 and 2)
  • 20 balanced line inputs (12 mono, 4 stereo)
  • One multi-purpose stereo channel for input from Bluetooth, RCA connectors or stereo mini-jack connector
  • Inserts on input channels 1 and 2
• Main stereo bus, sub stereo bus, two aux/monitor buses, effects bus
• 1-knob compressor for channels 1–12
• 3-band equalizer with sweepable mids for 12 mono channels, fixed mids on 4 stereo channels
• Switchable low-cut filter for 12 mono and 4 stereo channels
• 7-band graphic stereo equalizer – can be used for main stereo bus or aux/monitor bus
• Built-in Bluetooth receiver for wireless playback
• On-board effects processor
  • 16 preset effects types
  • Can be used on 12 mono and 4 stereo channel sends to sub bus and main stereo bus
  • Can be turned on/off by an optional footswitch (Tascam RC-1F)
• Large 100-mm faders for precise level adjustments

• XLR balanced outputs for main stereo bus
• TRS balanced outputs for sub, control room, aux 1 /2 and effects send
• Headphones output with level control (80 mW + 80 mW)

Recorder features

• Tascam multi-track recording engine
• Uses SD cards as recording media (up to 512 GB)
• Up to 24 tracks (22 input channels + stereo mix) can be recorded without the need for a computer
• Recording format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)
• Playback format: WAV
• Overdubbing, punch in/out recording (eight channels maximum)
• Multi-track playback for advanced live performance

Audio interface features

• USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
• Transfer to computer: 24 channels (all 22 inputs + stereo mix)
• Transfer from computer: 22 channels, assignable to each channel input
• Audio resolution 44.1/48 kHz, 16/24 bit
