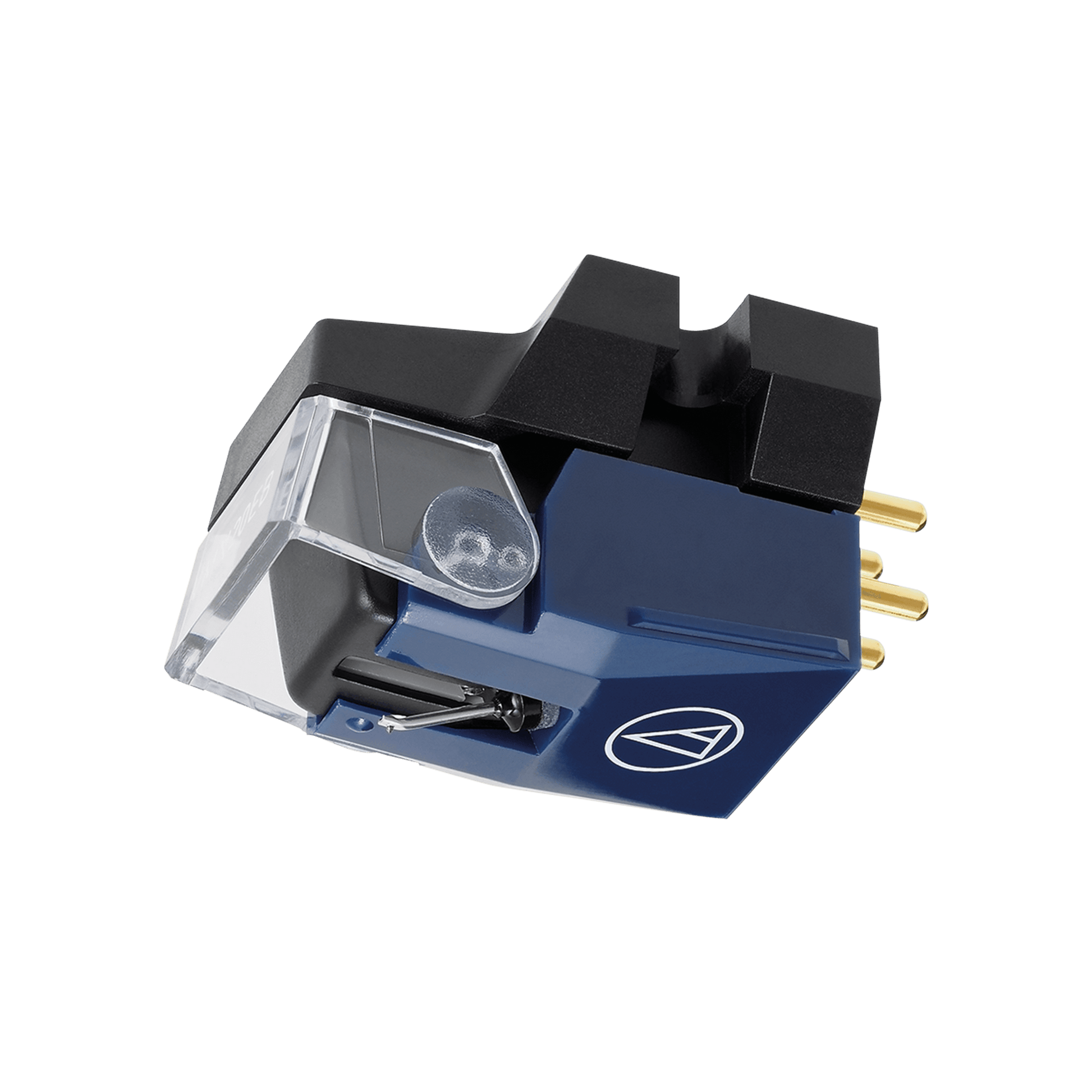

Audio-Technica VM520EB: Dual Moving Magnet Stereo Cartridge with Elliptical Bonded Stylus

The Audio-Technica VM520EB is part of the 500 Series, featuring a 0.3 x 0.7 mil elliptical bonded stylus. This design allows for more precise tracking of the record groove, resulting in improved audio reproduction and reduced distortion.

Key Features:

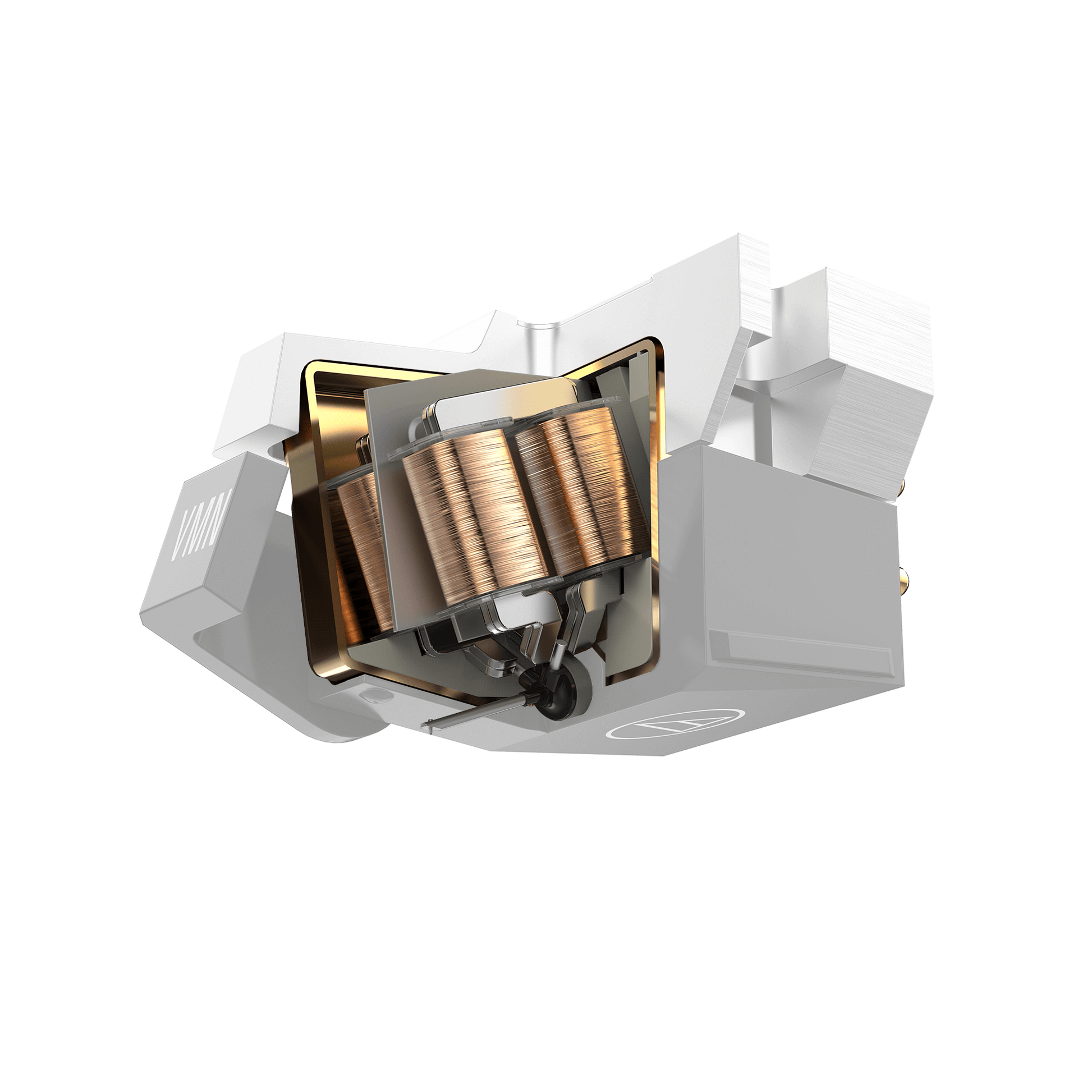

• Dual Magnet Design: Ensures outstanding channel separation and extended frequency response.
• Center Shield Plate: Reduces crosstalk between channels for enhanced sound clarity.
• Elliptical Bonded Stylus: Provides accurate tracking and improved high-frequency response.

Technical Specifications:

• Frequency Response: 20 – 23,000 Hz
• Output Voltage: 4.5 mV (1 kHz, 5 cm/sec.)
• Channel Separation: 27 dB (1 kHz)
• Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Stylus Construction: Bonded Round Shank
• Mount: Half-inch

The VM520EB is suitable for listeners seeking enhanced audio fidelity and precise tracking capabilities.
