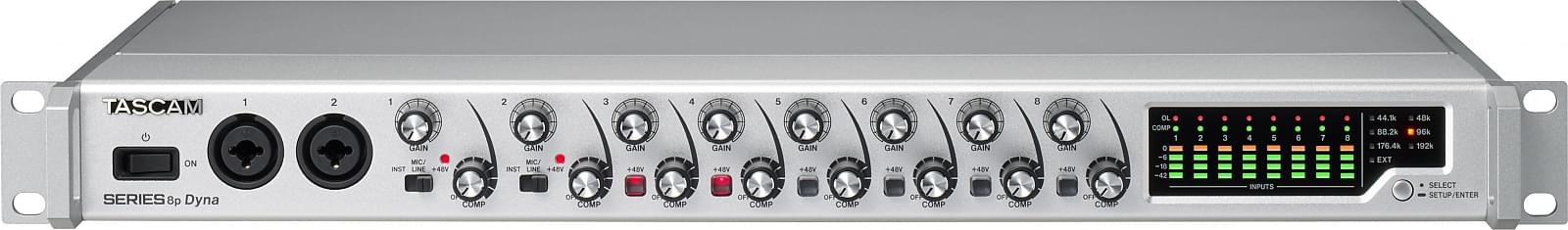

With superb audio specifications and connectivity and featuring an outstanding microphone preamp, the Tascam SERIES 8p Dyna is a great choice for both studio and stage. Housed in a rugged 1U rack-mount casing, its dual S/MUX optical ports make it a perfect expansion unit for a Tascam SERIES 102i or 208i or other S/MUX-equipped audio interfaces including ADAT, or use it as a stand-alone front end. In addition to eight separate TRS outputs, the SERIES 8p Dyna also has a multi-channel balanced analogue output that connects to an BO-16DX/OUT XLR breakout box, for example. And wordclock I/O ensures perfect synchronisation when using multiple units in parallel or operating with other professional equipment.
Each microphone channel features individually switched +48V phantom power for use with condenser mics, and an easy-to-use, single-control analogue compressor with true bypass. A comprehensive display informs about signal levels, compression, overload and the current sampling rate.
Features
- Eight-channel microphone preamp with eight analogue outputs and multi-channel optical outputs
- Can be used as a standalone analogue mic preamp to expand any mixer or recording device
- Ideal to add studio-ready audio inputs to a Tascam SERIES 102i/208i or US-20×20 via a single cable
- Two S/MUX optical ports can output all eight channels up to a sampling rate of 96 kHz
- 8 outputs at 44.1/48 kHz
- 8 outputs at 88.2/96 kHz
- 4 outputs at 176.4/192 kHz
- Tascam HDIA mic preamps use instrumentation amplifiers and have outstanding specifications, enabling them to provide clear, natural sound with super-low noise
- Eight balanced XLR/TRS combo input jacks
- Channels 1–2 on the front can be used for guitars, basses and other instruments with high-impedance output
- 48V phantom power can be provided to each input channel independently
- Each input channel has its own single-knob analogue compressor with true bypass
- 25-pin D-sub and eight separate TRS analogue balanced outputs support a variety of connections with other analogue equipment
- Indicators for analogue overload, compressor and digital signals as well as level meters on the front panel
- Wordclock input and output (with THRU switch) for flexible audio clock synchronisation with other equipment
- AC adapter included (Tascam PS-P1230, with four exchangeable plug inserts)
Options
- BO-16DX/OUT can be used to provide 16 XLR balanced outputs (for up to two SERIES 8p Dyna units)
For full specifications & more information visit the manufacturer’s website
