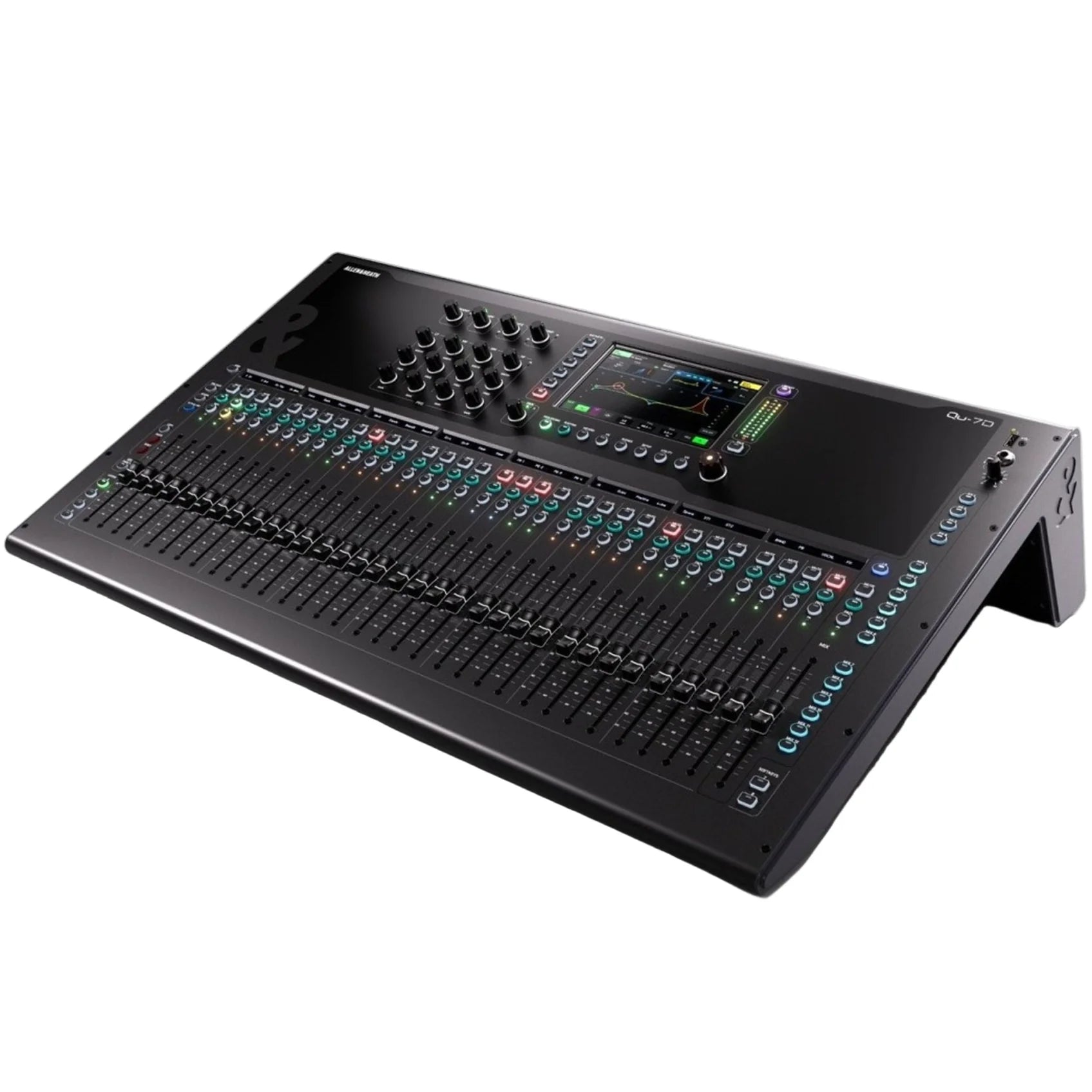

Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.

All New Hardware.

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Audio

Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control

Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

Dante Enabled

The Qu-7D provides a 16×16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.

SPECIFICATIONS:

Processing & FX

• 96kHz XCVI Core

• 6 Multi-FX Engines with dedicated Stereo Returns

• DEEP Processing Ready


Mix Architecture

• 38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)

• 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)

• 4 Mono/Linkable Matrix

• Stereo Main LR Output


I/O

• 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets

• 2 Stereo Line Input Sockets (each 2x TRS)

• 20 XLR Output Sockets

• 1 XLR Talkback Socket

• 2 TRS Output Sockets

• 1 AES3 Stereo Digital Output Socket

• 128×128 Intelligent SLink Port for Everything I/O expansion and system connections

• 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-7D only)

• Stereo Headphone Output


Control

• 7” Capacitive Touchscreen

• 33 100mm Motorised Faders

• 4 Channel Strip Layers

• Remote control via free apps – Windows/MacOS/iOS/Android

• 8 SoftKeys

• Configurable single/dual Footswitch Connection


Recording & Playback

• USB-A For stereo audio record/playback and data transfer

• USB-C Audio interface for multichannel record/playback (32×32)

• SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)


Misc

• 12V Lamp Socket

• Configurable Chromatic Channel Meter LED’s
