DESCRIPTION

Compact and lightweight, the PreSonus AIR15 2-way active PA loudspeaker’s 15-inch woofer and 1.35-inch HF driver deliver a rich, extended low-end and natural high-frequency extension in an enclosure that fits in the back of a small car. Backed by 1,200W (peak) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR15 gives you all the power and tools you need for both mobile and installed sound. A choice of inputs enables use with a variety of sources.

An easy-to-use signal processor with presets makes it simple to customize the AIR15’s response for use as front-of-house mains, as monitor wedges, for music playback, for improved speech intelligibility and for enhanced low end and a warmer sound. Treble and bass controls boost or cut by 10 dB to compensate for room anomalies. Location presets optimize performance for stand and bracket mounting as well as flown installations.

The AIR15’s multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and on one side for stage monitor applications. Rig it using M10 fly points or ground-stack for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. An integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt. And the AIR15 is easy to transport, thanks to its top-mounted handle.

FEATURES

1.35-inch, high-frequency compression driver and 15-inch woofer with a 2.5-inch voice coil
900W (peak) Class D power amplifier for LF driver and 300W (peak) Class A/B amplifier for HF driver
Maximum SPL 124 dB peak with 47 Hz to 20 kHz frequency response
90° x 60° (horizontal x vertical) dispersion pattern
Onboard mixer with two combo XLR and ¼-inch inputs and one summed balanced output
Easy-to-use DSP performance presets: DJ (music playback), FOH (normal front-of-house), Monitor (floor wedge), Speech (intelligibility)
Additional presets and controls: Stand (pole or tripod mounting), Bracket (wall mounting), Suspend (flown applications)
Rugged, plastic, multi-angle enclosure for mains or monitor-wedge applications, with comfortable ergonomic handle and tour-grade, 1.2 mm steel grille
35 mm pole socket with 7.5˚ downward tilt
M10 rigging points for suspended installation

Electronics

INPUTS

Three - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8” TRS Stereo)

AUXILIARY INPUT

1/8 in (3.5 mm) Stereo

LINE OUT

One - 1 x XLR Mix Out

CHANNELS

Three

VOLTAGE

220-240V EU

POWER CONSUMPTION

3.5A (230V-50 Hz), 7A (120V)

Performance

PEAK SPL

124 dB

Speakers

TOTAL IMPEDANCE

CROSSOVER FREQUENCY

1.6 kHz

SPEAKER TYPE

Active 2-Way

COVERAGE PATTERN

90 degree (H) x 60 degree (V)

Hardware

CABINET MATERIAL

H-PP Molded

HANDLE

1 Top, 1 Side

GRILLE MATERIAL

1.2 mm Steel

POLE SOCKET

Dual Position (0˚, 7.5˚)

Language

Collection: PA Systems

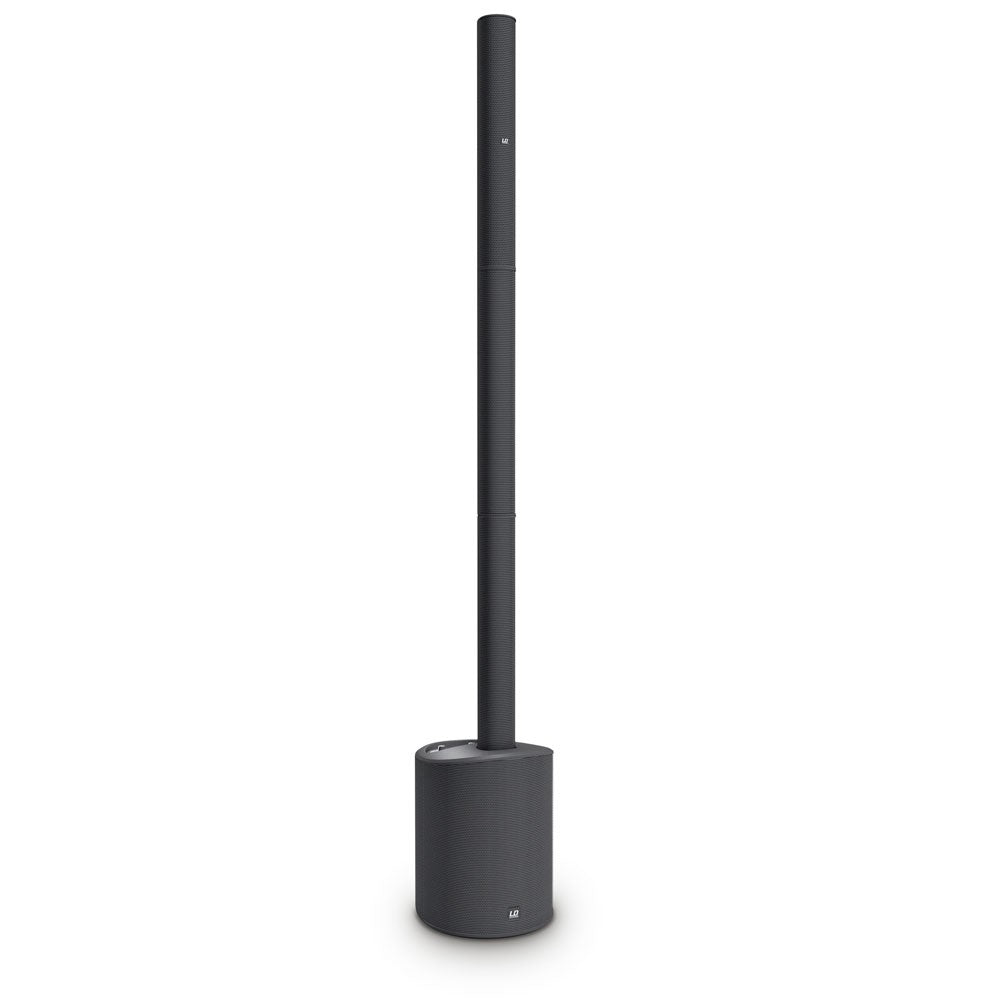

LD Systems MAUI 5 GO Noma
