All knobs and no menus, an FM synth engine with hands-on control

ALGO's four oscillators can be configured in series or parallel combinations, to create Complex FM or additive sound textures.

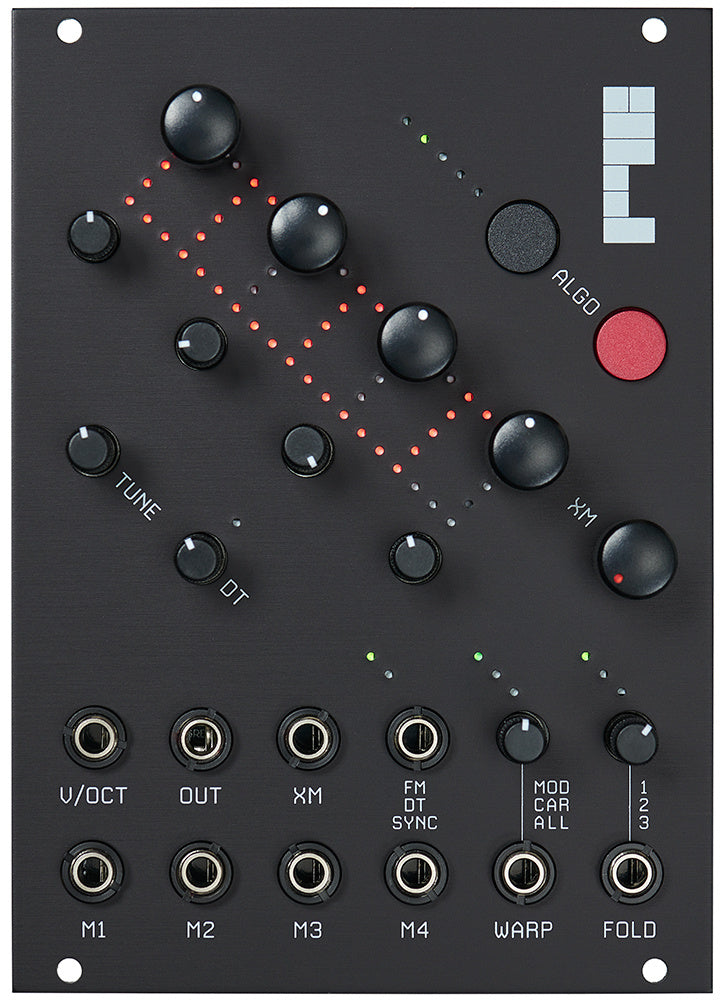

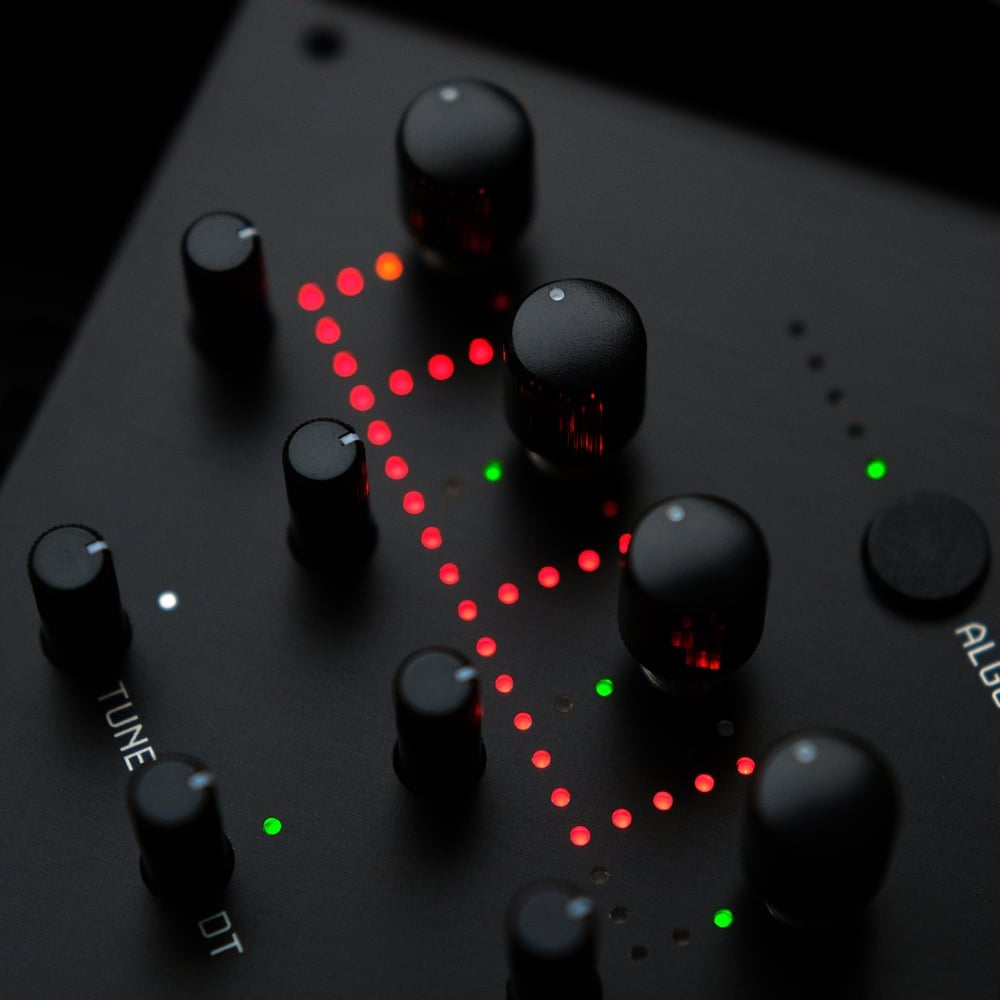

A unique Algorithm Display indicates the signal flow from one oscillator to another - easy to understand FM with pretty twinkly lights!

Each oscillator has controls for Level and Frequency, allowing easy adjustment of FM timbres, no menu diving snorkels needed.

Modulation inputs for Frequency or Level for each oscillator - patch in a couple of Envelopes, and you have an instant FM synth voice.

Bored of Sine waves? A generous Wave Warp control bends things through Triangle to Pulse wave and back again.
Wave Warp can be applied to Carrier, Modulator or both types of oscillator.

For the more discerning mangler, Wave Folding is also available in three delicious flavors: Symmetric, Asymmetric, and Soft Clip!

A Global Detune spread control with CV input is great for creating Netflix apocalypse drones that descend into the abyss.

Lastly, an onboard Stereo Chorus can add a vivacious 1980's shimmer to all your FM creations.

Oh, nearly forgot. It's Stereo!

TECHNICAL SPECIFICATIONS:

Frequency range
8 Hz - 35 kHz

Sampling frequency
85 kHz @ 2x oversampled (170 kHz)

DIMENSIONS
18 HP wide
25 mm deep

POWER CONSUMPTION
+12 V 70 mA
-12 V 6 mA

FEATURES:
Four through-zero oscillators
Harmonic intervals, Fine tune, or Fixed frequency options for each oscillator
Amplitude OR Frequency/V/OCT CV inputs for each oscillator

9 FM algorithm combinations

Wave Shaping and three types of Wave folding

Multi-stage variable speed high-quality chorus effect

Stereo output, with Pan control for each oscillator in the stereo field

Pretty lights!
