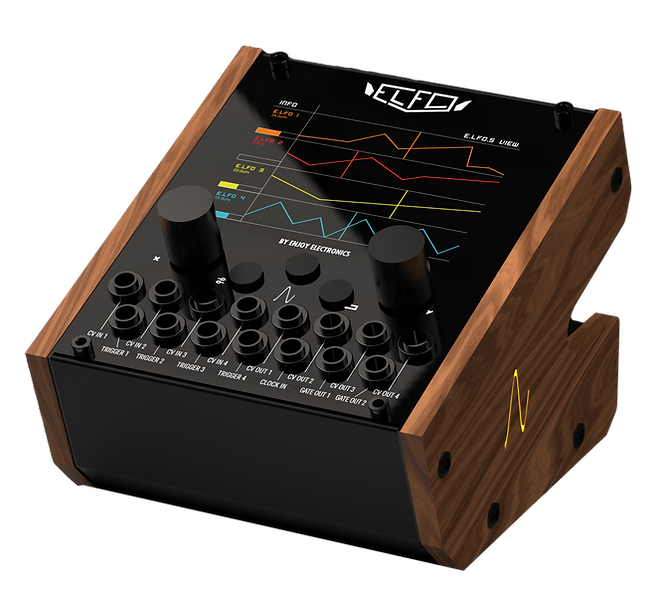

Enjoy Electronics ELFO
Enjoy Electronics ELFO
€439,00
€439,00
€489,00
Tax included.
Available in warehouse
Estimated Shipping Widget will be displayed here!
Description / Specs
Description / Specs
The Elfo rewrites the rules and transforms modulation into pure, unpredictable magic.
Draw and sculpt custom waveforms - Add, move, or remove points with natural finger gestures for instant customization.
Generate sophisticated organic modulations - Create complex multi-segment curves
From 10 Hz to one cycle every 60 minutes - ideal for subtle textures, evolving modulations, and precise rhythmic movement.
Save custom waveforms for instant recall
CORE FEATURES
- Four independent/interconnected LFOs
- Intuitive 4.3" multi-touch interface
- Modulation Matrix
- Magic Crystal Function for random routing
- Internal/External clock
- Oscilloscope view
- Full parameter preset storage
- Single point modulation via the customizable internal LFO
- 2 Independent Gate outputs (Threshold | Phase)
LFO SETTINGS
- Presets or custom drawn vector line
- Time / Rate
- Sync / No Sync
- Forward or Reverse
- Voltage Range (Min -5V / Max +10V)
- Voltage Offset
- Trigger Functions (Play/Pause | One shot | Reset | Gate | Trigger Step | Sample and Hold | Ping Pong | Random Phase)
MODULATION & CONTROL
- Complex matrix modulation (Internal / External CVs)
- Source / Destination
- Parameter types (Rate | Phase | Range)
- Amount
- Mode (Unipolar / Bipolar)
CONNECTIVITY
- 4 CV inputs
- 4 CV outputs
- 4 Trigger inputs
- 2 Gate outputs
- 1 Clock input
POWER REQUIREMENTS
- +12V: 25mA
- -12V: 25mA
- +5V: 250mA
More info: ELFO
