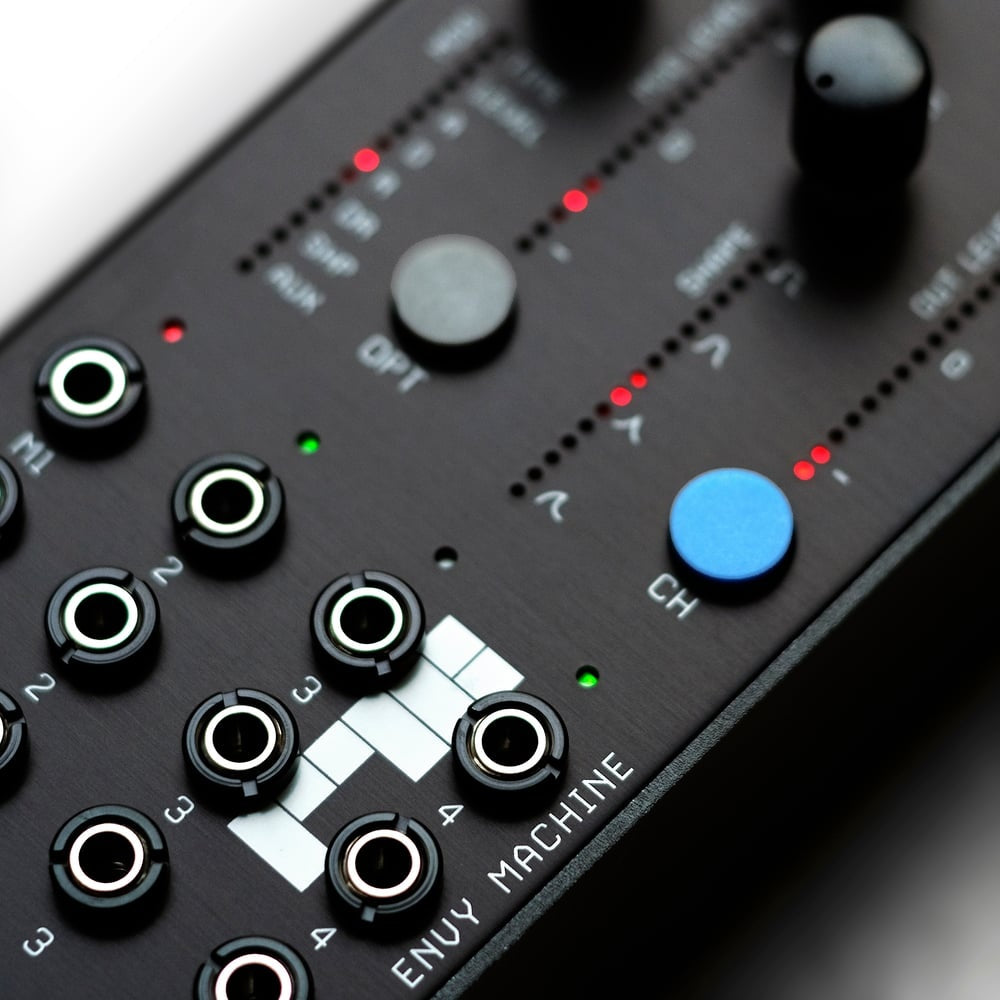

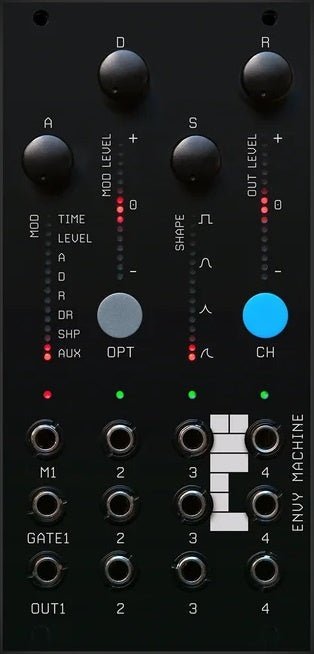

RYK Modular ENVY MACHINE
RYK Modular ENVY MACHINE
In stock
Estimated Shipping Widget will be displayed here!
Description / Specs
Description / Specs
A compact quad-channel modulation machine
Welcome to the Envy Machine!
A compact quad-channel modulation machine, with an impressive array of Envelopes, LFOs, random voltages, and even Knob Recording.
With four channels of modulation, ENVY MACHINE is an ideal companion to the RYK ALGO module.
Each of the four channels on the ENVY MACHINE can be set to one of five super-flexible modulation modes:
- ADSR Envelope
- AD Envelope
- AD LFO
- Random Voltage
- Recordable Knob Voltage Control
Ghost hand - Parameters can be animated using KNOB RECORDING to create timed variations in your patch.
Oh, and with the dedicated MOD input per channel, you can use an external CV to control anything - TIME, LEVEL, WAVESHAPE, the color of your hair, etc...
Polarity paradox - Modulation inputs AND channel outputs come with bipolar attenuverters, so you can choose either bipolar or unipolar, with continuously variable level control.
Slippery slopes - WAVESHAPES are continuously variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE!
TECHNICAL SPECIFICATIONS
TIME
- Envelopes: 1.5ms – 4min
- LFO: 88Hz – 7min
- Random: 2kHz - 2min
OUTPUT VOLTAGE RANGE
- Envelopes: 0/8V (inverted: 8V/0V)
LFO/Random: 0/8V (Unipolar) or -5V/+5V (Bipolar) - INPUT VOLTAGE RANGE
-5V/+5V
DIMENSIONS
- 12 HP wide
- 25 mm deep
POWER CONSUMPTION
- -12V 5mA
- +12V 70mA
