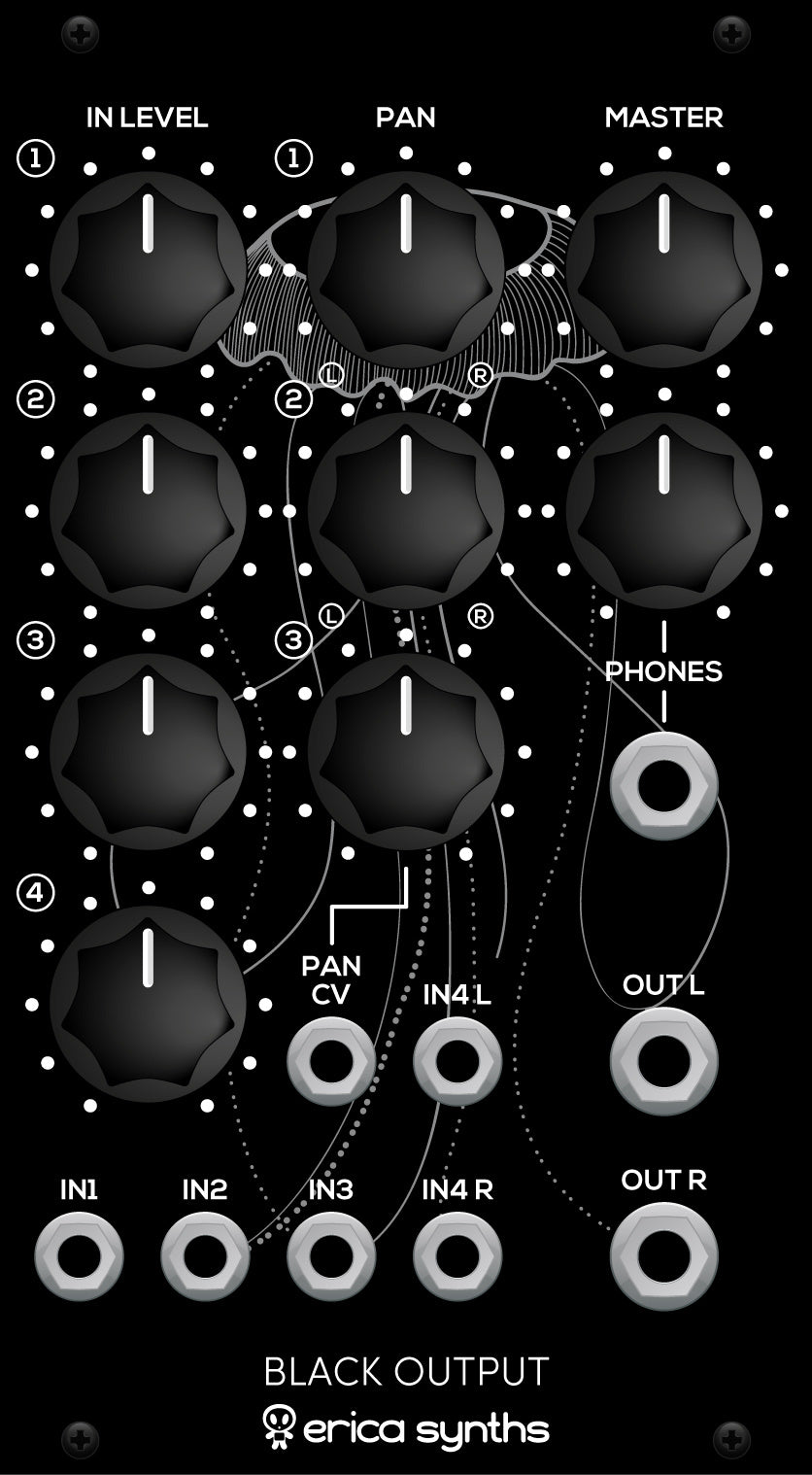

All inputs are buffered, and we use stereo potentiometers (similar to those used in high-quality studio mixers) for panning. IN4 is a stereo input with simultaneous level adjustment for both channels, and IN3 features a CV-controlled autopan function. There is also a 6.3mm jack for balanced outputs and headphones.

Technical specifications:

Input signal level - -10V, +10V

Pan CV input signal level - -10V, +10V

Phone amp output power - 100mW

Power consumption - +52mA, -43mA

Module width - 14HP

Module depth - 35mm

More information - Erica Synths
