In stock
Tape, digital and ping-pong modes of delay, hold with overdub and delicate delay time and feedback control in combination with CV and trigger control over various parameters make this module not only a great effects unit in your modular system but also an instrument on its own.

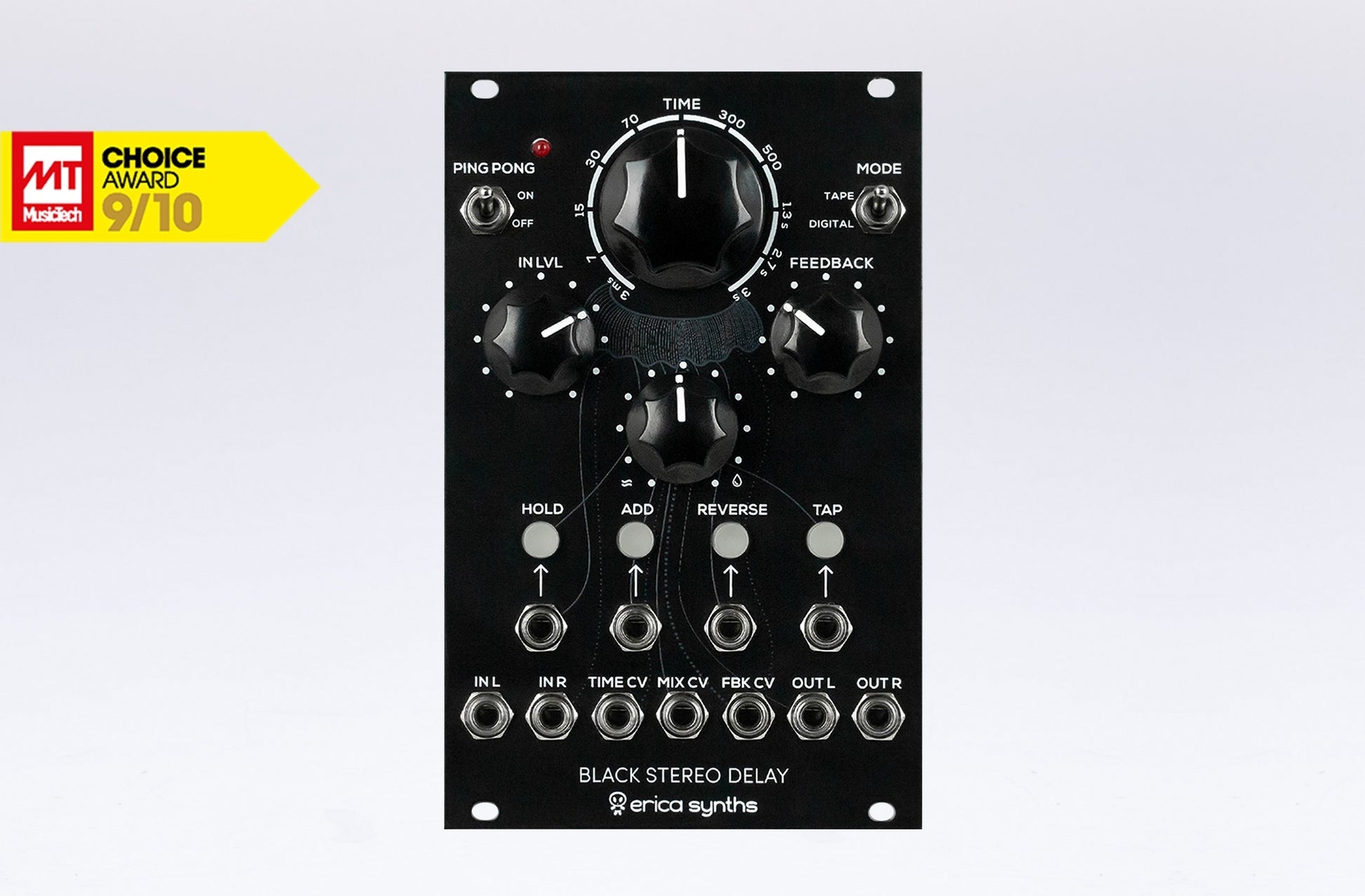

The Black Stereo Delay is a convincing sounding delay with many practical benefits - a straightforward interface and unmistakable functions. Therefore it is to be considered less of a complex sound generator but rather an efficient tool to upgrade sounds of all kinds. It is practice-oriented, great for improvisation and use on stage. - Keys
Technical specifications:
| Max audio input level before clipping | 16Vptp |
| Trigger inputs | 0-8V (min 2V for high level) |
| CV input range (full span) | -5V - +5V |
| Frequency range | 5Hz..24kHz |
| Sampling frequency | 48kHz, 24bit |
| Delay time | 3..3000 ms |
| Audio codecs | -108 dynamic range, -98dB THD+N |
| Power consumption | +162mA, -62mA |
| Module width | 16HP |
| Module depth | 37mm |
| Description |
| Vendor |
| Type |
| Tape, digital and ping-pong modes of delay, hold with overdub and delicate delay time and feedback control in combination with CV and trigger control over various parameters make this module not only a great effects unit in your modular system but also an instrument on its own. Features
The Black Stereo Delay is a convincing sounding delay with many practical benefits - a straightforward interface and unmistakable functions. Therefore it is to be considered less of a complex sound generator but rather an efficient tool to upgrade sounds of all kinds. It is practice-oriented, great for improvisation and use on stage. - Keys Technical specifications:
|
€250,00
€250,00
| Erica Synths | Eurorack Modules |
In stock
Tape, digital and ping-pong modes of delay, hold with overdub and delicate delay time and feedback control in combination with CV and trigger control over various parameters make this module not only a great effects unit in your modular system but also an instrument on its own.
The Black Stereo Delay is a convincing sounding delay with many practical benefits - a straightforward interface and unmistakable functions. Therefore it is to be considered less of a complex sound generator but rather an efficient tool to upgrade sounds of all kinds. It is practice-oriented, great for improvisation and use on stage. - Keys
Technical specifications:
| Max audio input level before clipping | 16Vptp |
| Trigger inputs | 0-8V (min 2V for high level) |
| CV input range (full span) | -5V - +5V |
| Frequency range | 5Hz..24kHz |
| Sampling frequency | 48kHz, 24bit |
| Delay time | 3..3000 ms |
| Audio codecs | -108 dynamic range, -98dB THD+N |
| Power consumption | +162mA, -62mA |
| Module width | 16HP |
| Module depth | 37mm |
