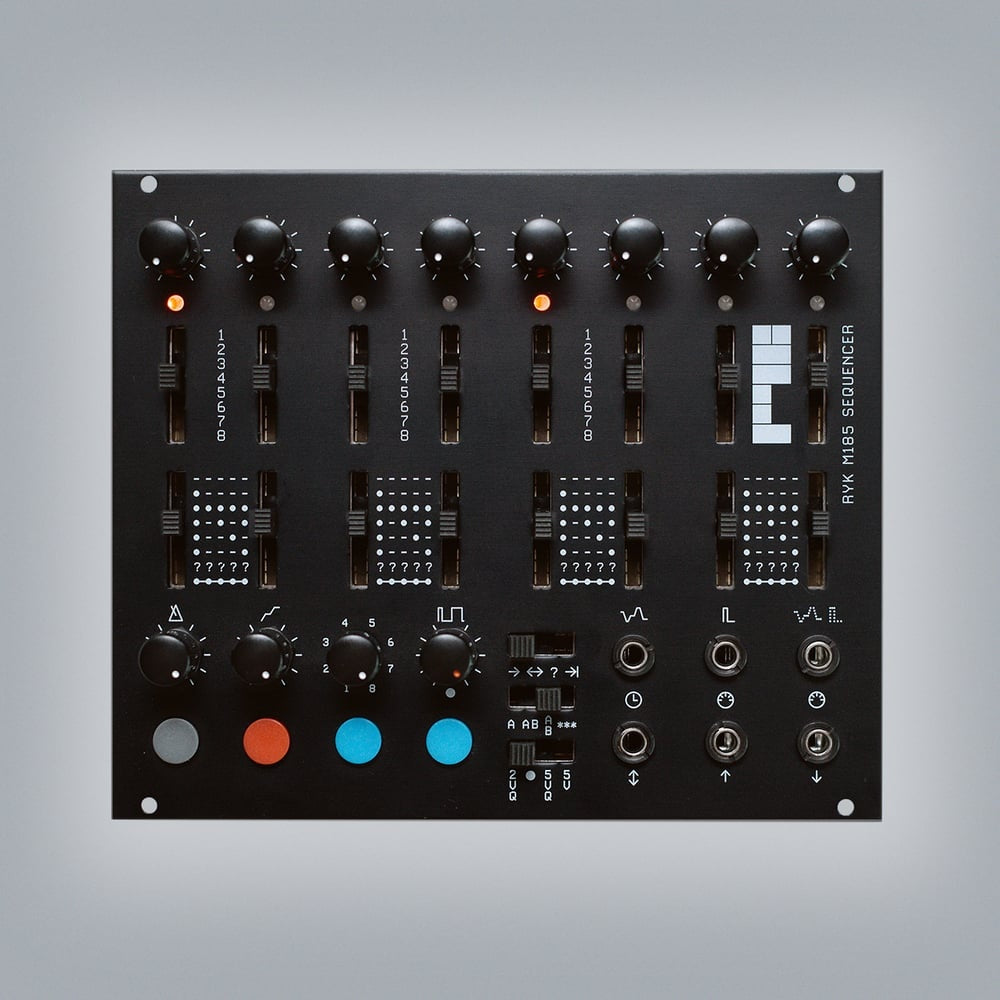

The M185 is the most intuitive and playable Eurorack sequencer. It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences. It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

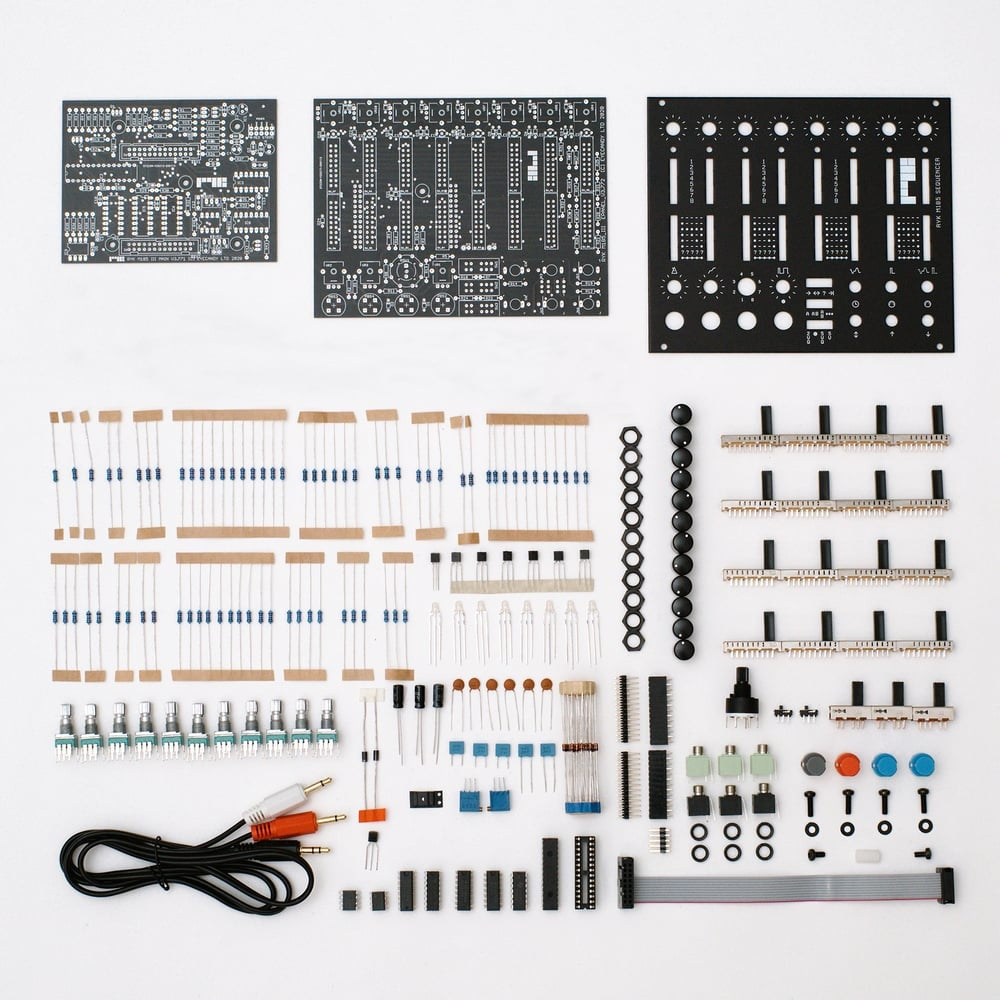

This is a complete kit for Eurorack, Including all parts:

2xPCBs, a high quality panel, pots, knobs, switches, jack sockets, and all sundry components.

The kit is quite complex, and is not for the inexperienced builder.

OVERVIEW

• 8 unique gate modes for creative rhythmic possibilities
• A/B split mode for two separate sequences, like having two sequencers in one box
• 2 channels of CV/GATE and MIDI I/O
• 15 Quantise scales OR pure analogue microtonal CV output


INPUTS & OUTPUTS

• 2 channels of CV and Gate outputs
• Reset input [ shared with MIDI input ]
• Sync output [ shared with CH2 gate ]
• Bidirectional Clock I/O
• MIDI input for MIDI clock in, MIDI note transpose
• MIDI output for MIDI clock out, MIDI note output


STAGE DETAILS

• 8 stages, each with individual 1-8 step repeats per stage
• 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]
• Programmable gate patterns for 'on the fly' X0X style programming of gate triggers


EVEN MORE DETAILS !

• AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
• AB parallel split mode, for two separate simultaneous sequences that play at the same time
• Root note offset and reset trigger options from sequence B to A
• 2.5V / 5V voltage range selectable
• MIDI note output including programmable velocity
• MIDI to CV converter mode [wow]
• Programmable glide per stage
• Easy user upgradable firmware using MIDI sysex files


TECHNICAL STUFF

• +12V = 75mA average, 110mA peak
• 12V = 10mA
• Width: 30 HP
• Depth: 38 mm
• Black anodised Aluminium panel, silkscreen in RAL 9002
