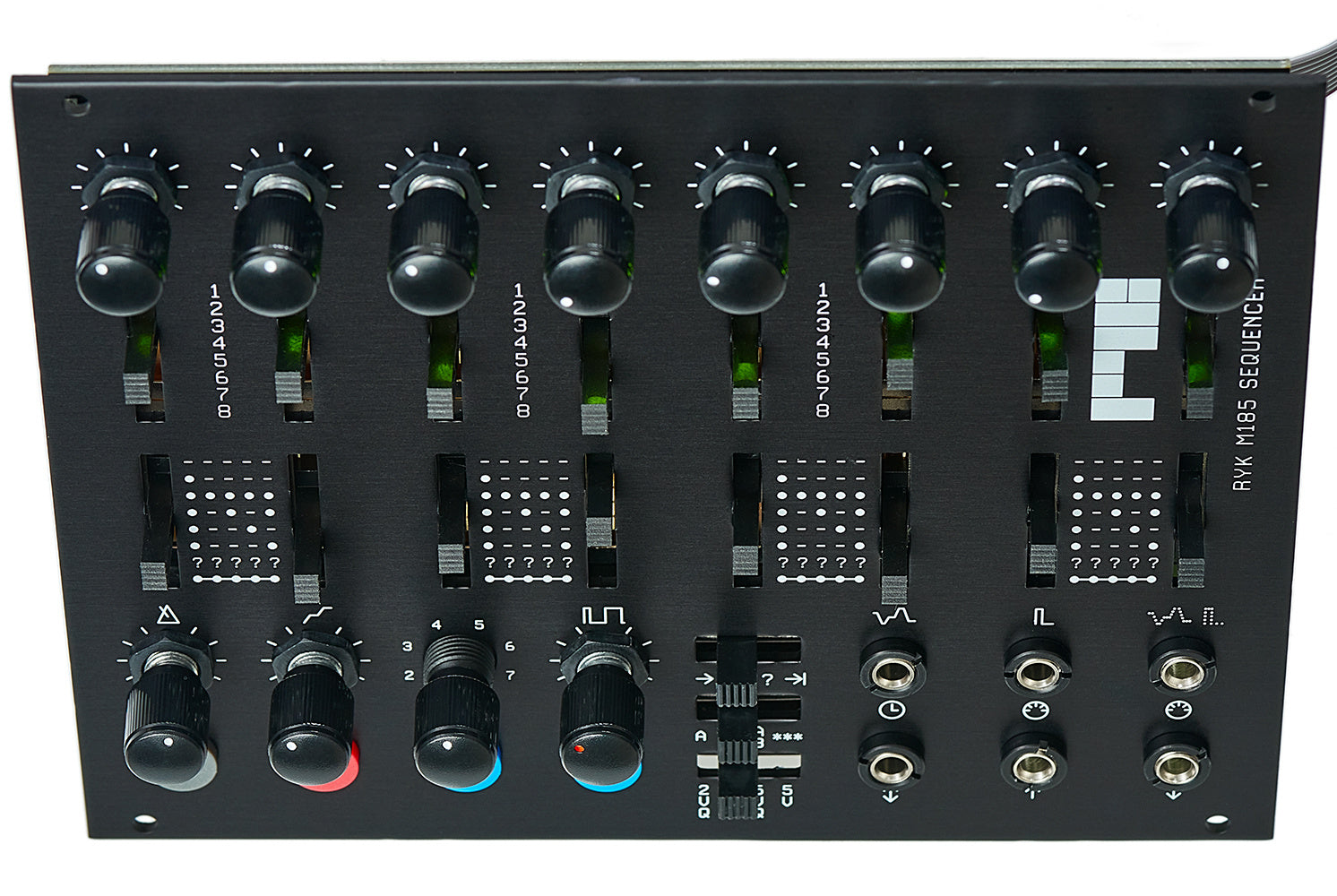

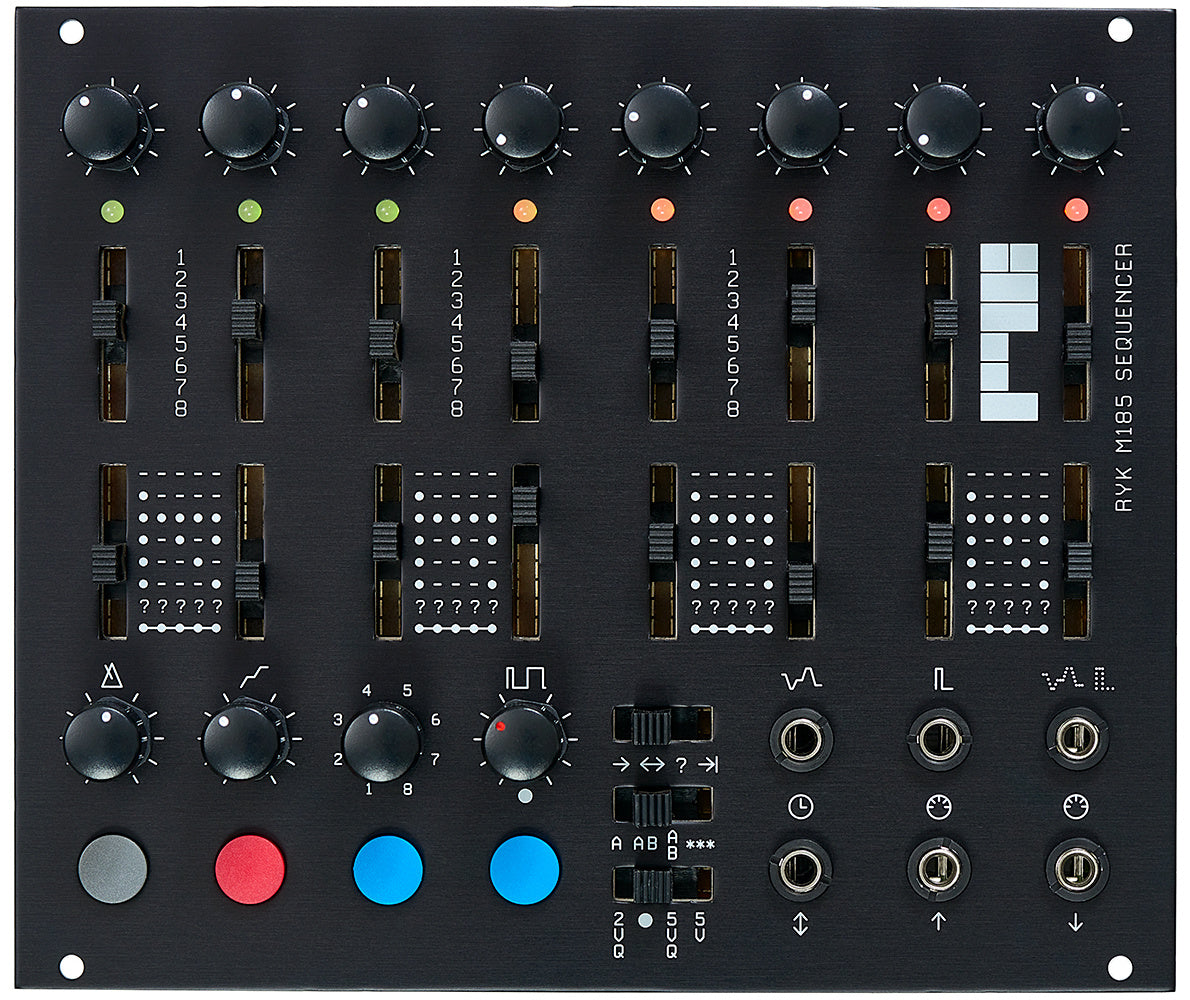

The M185 is the most intuitive and playable Eurorack sequencer.

It serves as a hands-on, performance-oriented module for easy creation of complex melodic sequences.

It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

- Features an expansion header for chaining two M185s for 16-stage sequences
- Many more quantization scales
- Live X0X-style Gate Pattern programming

OVERVIEW

- 8 unique gate modes for creative rhythmic possibilities
- A/B split mode for two separate sequences, like having two sequencers in one unit
- 2 channels of CV/GATE and MIDI I/O
- 15 Quantize scales OR pure analog microtonal CV output

INPUTS & OUTPUTS

- 2 channels of CV and Gate outputs
- Expansion header to connect two M185s for 16-stage sequences
- Reset input [shared with MIDI input]
- Sync output [shared with CH2 gate]
- Bidirectional Clock I/O
- MIDI input for MIDI clock in, MIDI note transpose
- MIDI output for MIDI clock out, MIDI note output

STAGE DETAILS

- 8 stages, each with individual 1-8 step repeats per stage
- 8 gate modes per stage [Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long]
- Programmable gate patterns for 'on the fly' X0X-style programming of gate triggers

EVEN MORE DETAILS!

- AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
- AB parallel split mode, for two separate simultaneous sequences that play at the same time
- Root note offset and reset trigger options from sequence B to A
- 2.5V / 5V voltage range selectable
- MIDI note output including programmable velocity
- MIDI to CV converter mode [wow]
- Programmable glide per stage
- Easy user-upgradable firmware using MIDI sysex files

TECHNICAL STUFF

– +12V = 75mA average, 110mA peak
- 12V = 10mA
– Width: 30 HP
– Depth: 25 mm
– Black anodized Aluminum panel, silkscreen in RAL 9002
