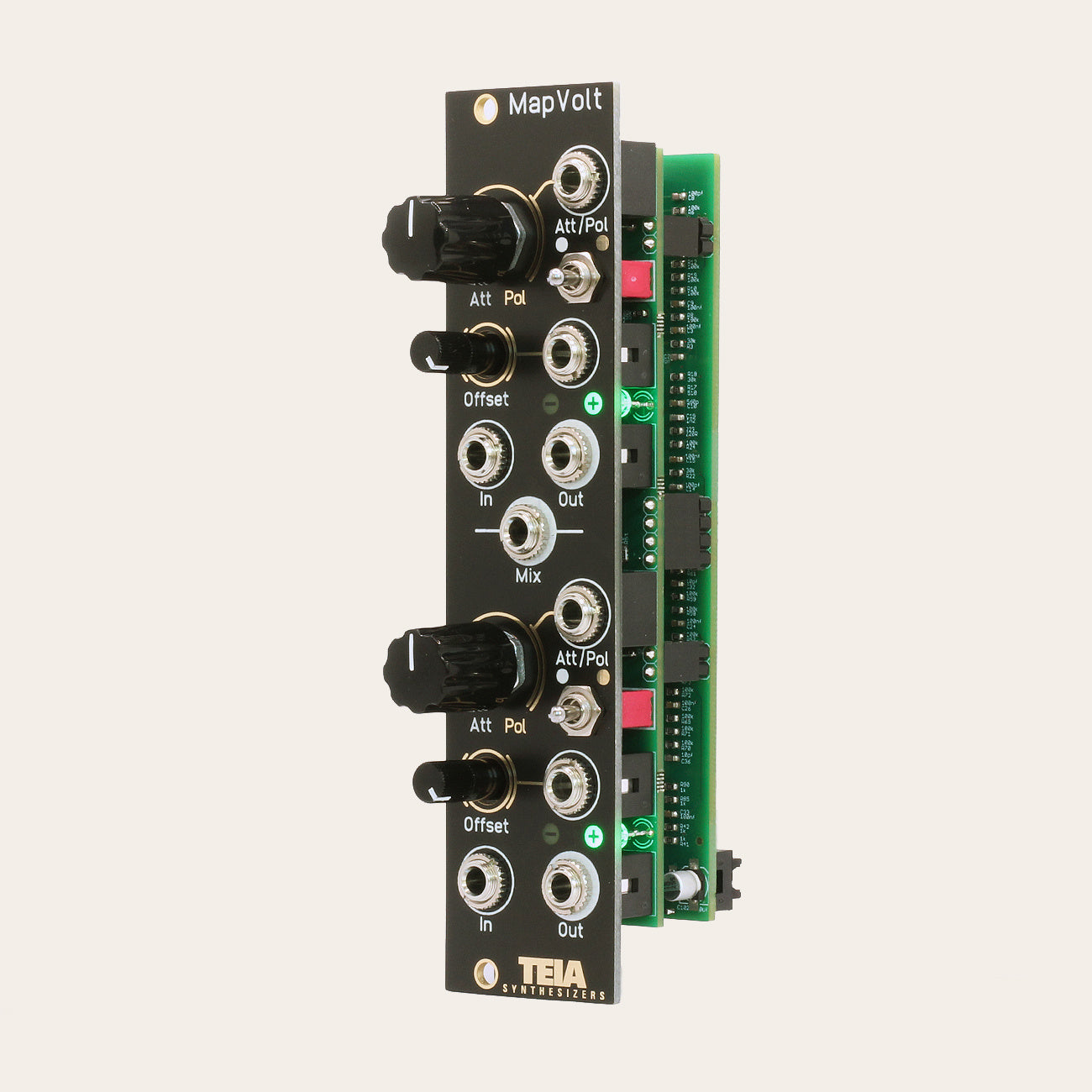

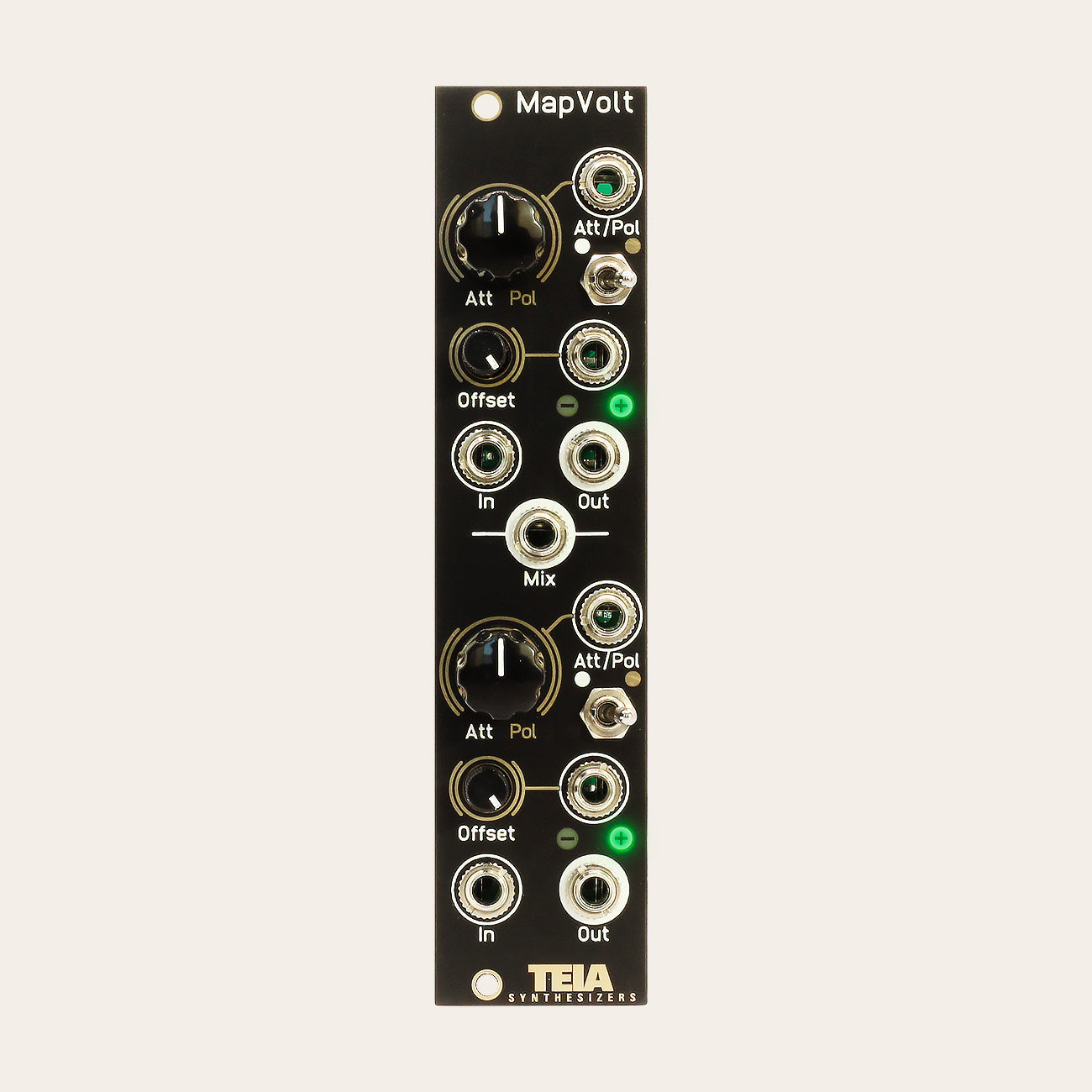

Designed with versatility in mind, MapVolt is a dual-channel Universal Voltage Processor built for flexibility in handling audio and CV signals.
With only 6hp, MapVolt is a multipurpose tool for voltage-controlled scaling, inverting, offsetting, subtracting, and mixing functions.

Each channel of MapVolt can operate in either Polarizer or Attenuator mode, allowing manual control via knobs or CV signals. In Polarizer mode, it functions as a Voltage Controlled Attenuator-Inverter, granting control over signal level and polarity. Additionally, it can be used as a Four-Quadrant Multiplier or Ring Modulator for audio signals, with the processor input serving as the carrier signal and the polarizer’s CV input acting as the modulator.

In Attenuator mode, MapVolt operates as a VCA, providing control over signal levels. Its VCA CV input range of +5/-5 makes it well-suited for amplitude modulation (AM) with other +/-5V waveforms.

MapVolt is equipped with dedicated Voltage Offset knobs for each channel, which can be controlled via CV. If no input is patched into the Processor input channel, the Voltage Offset knobs can be used as Offset Generators.

With its dedicated mixing stage, MapVolt enables the combination of both channels into a shared output. Furthermore, if one of the processor channels is inverted, it allows for the subtraction of one signal from the other.

Features:

• Dual VC-Polarizer (attenuverter).
• Dual VC-Attenuator (VCA).
• Dual VC-Offset generator (+10V/-10V).
• Dual Ring Modulator/four-quadrant multiplier.
• Two channel Mixer
• Voltage subtractor
• Suitable for both Audio and CV signals

Specs:

• Width: 6HP
• Depth: 33mm
• Power consumption: 65mA +12 / 65mA -12
• Eurorack Format
• Doepfer power connection
