Explore quadraphonic sound spatialization and vector synthesis with a fully analog dynamic modulation source.

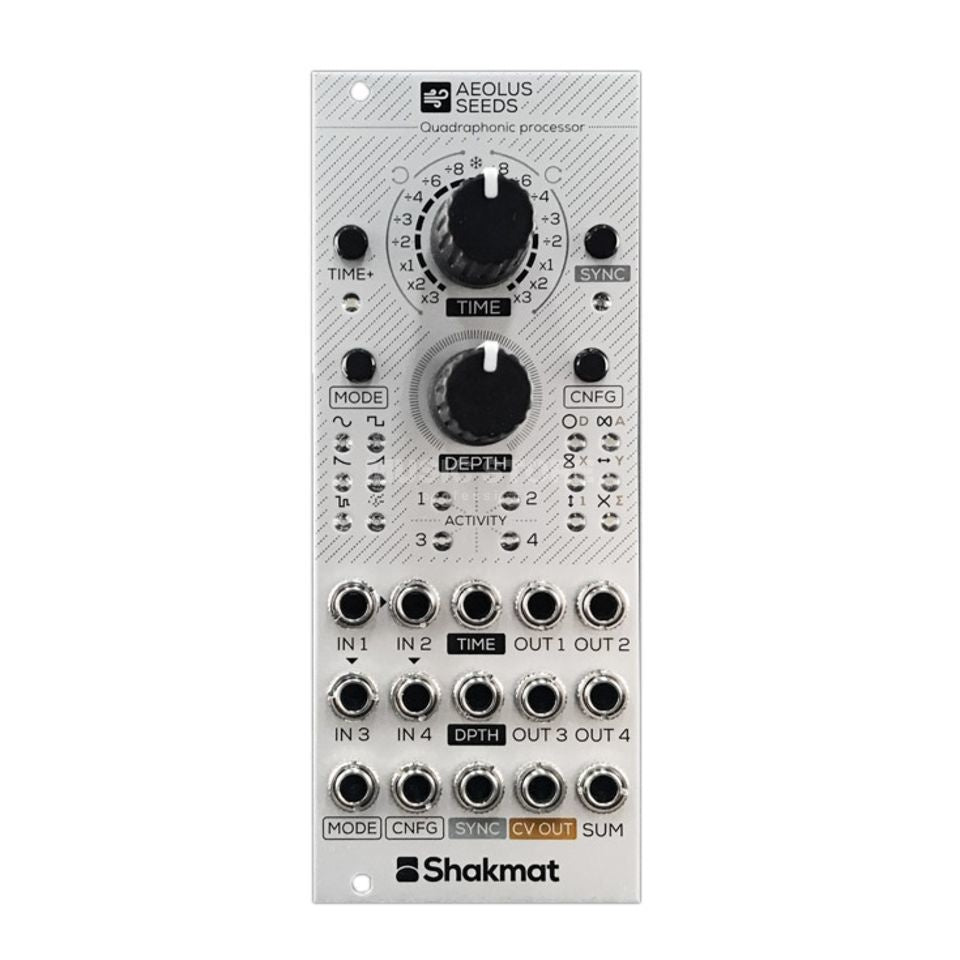

The Aeolus Seeds module manipulates the dynamics of a fully analog signal path through four VCAs controlled by a versatile multi-channel modulation source. Ideal for quadraphonic spatialization, it also excels in vector synthesis thanks to its Sum output.

This module’s CV output expands creative potential by sending modulation parameters like angle and distance to other modules, breathing life into complex spatial soundscapes and morphing applications.

Key Features

• Full analog quadraphonic spatializer with four VCAs

• Six modulation modes including LFO, envelopes, and randomness

• Six configurable signal paths in the quadraphonic space

• Sync input for resettable and synchronized modulations

• CV output providing modulation parameters such as angle or distance from center

• Sum output ideal for vector synthesis, scanning, or morphing

• Bipolar CV inputs

• Current state storing capability

• Skiff friendly

• Djtechtools rubber injected potentiometers

Technical Specifications

• Width: 10HP

• Depth: 40mm

• Power Consumption:

  • +12V: 70mA

  • -12V: 40mA

Applications

• Quadraphonic sound spatialization in modular setups

• Vector synthesis, scanning, and morphing of audio signals

• Dynamic modulation control in performance and studio environments

• Integrating multi-channel modulation with synchronized effects

• Expanding modulation signals to other modules via CV outputs

Versions Available

• Assembled module

• DIY kit version
