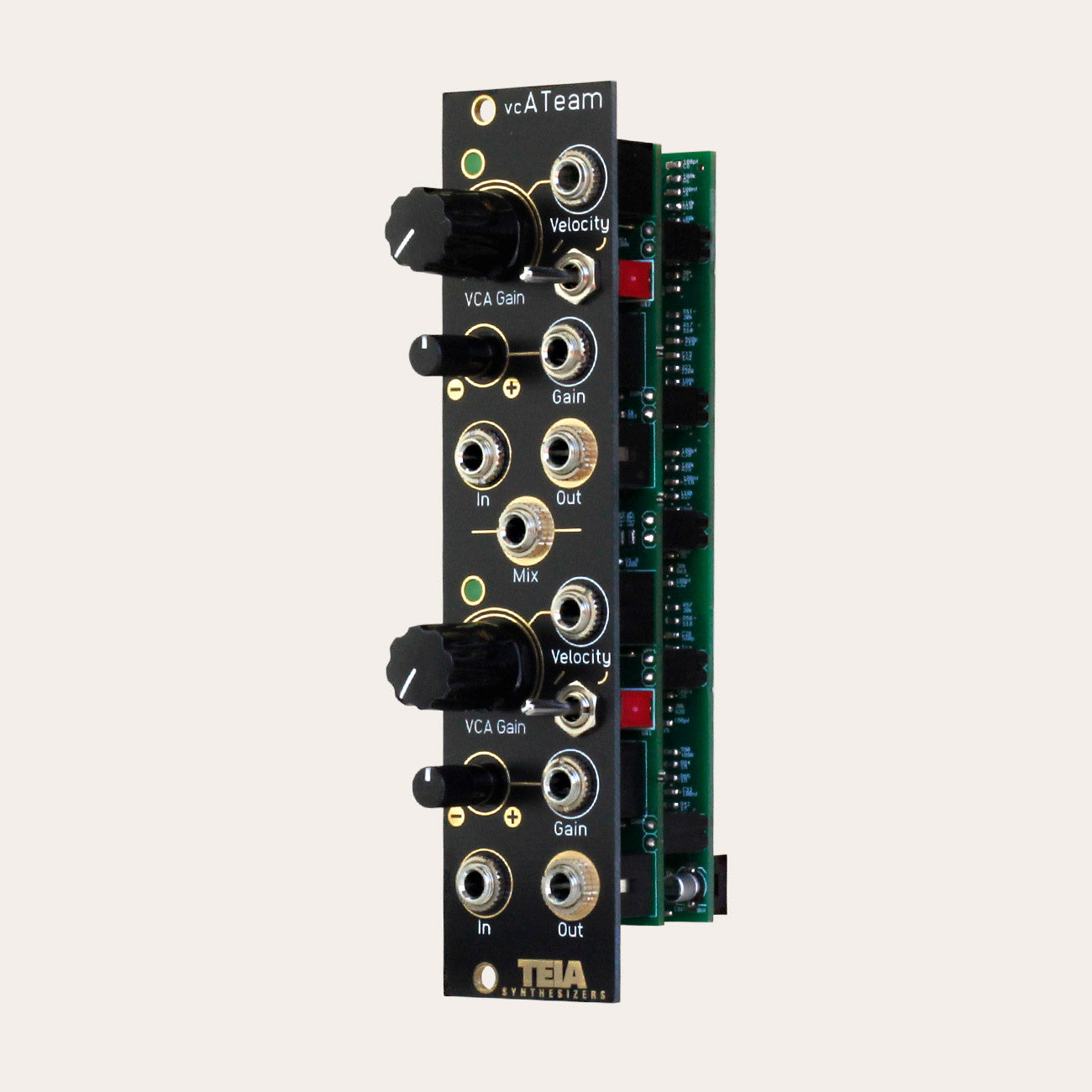

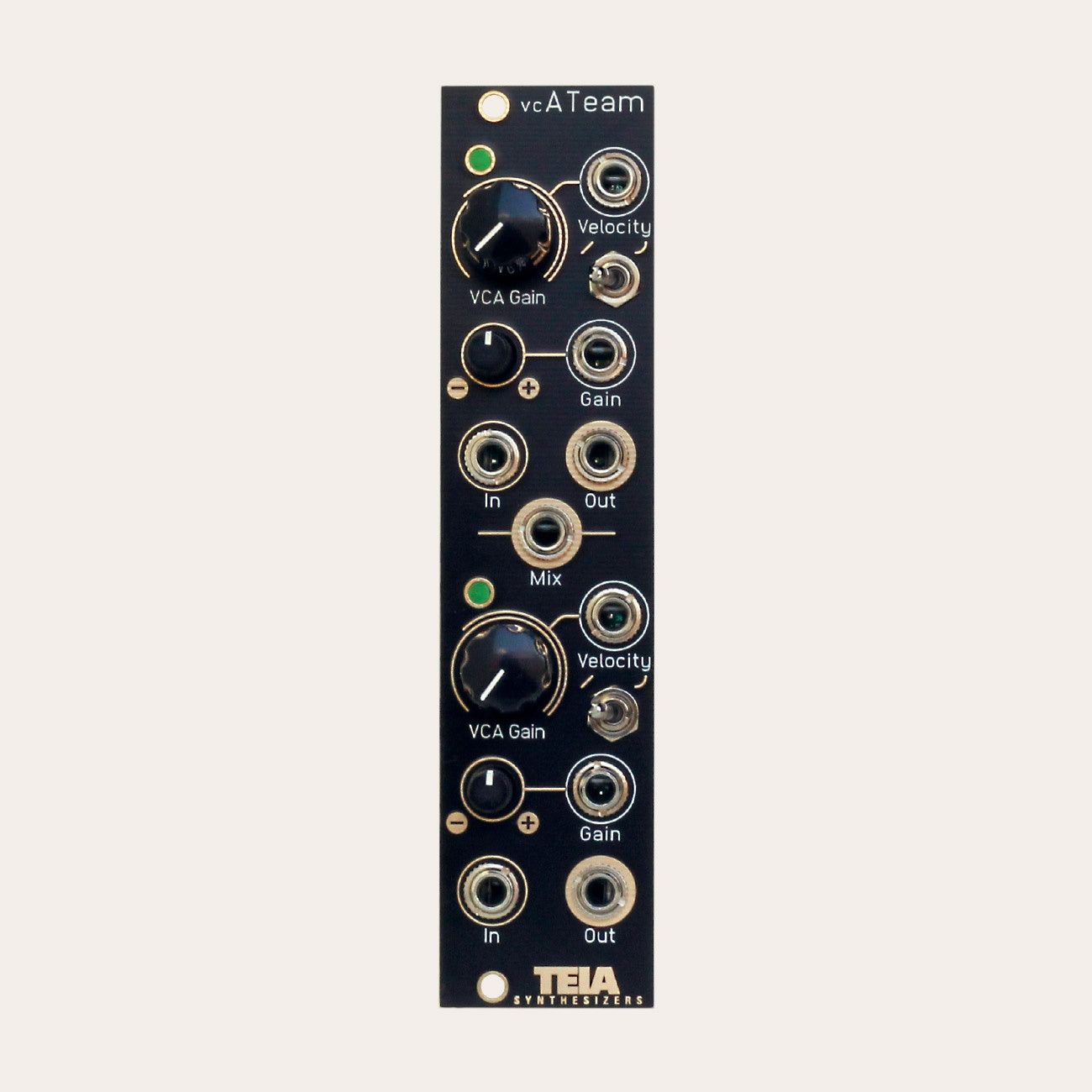

vcA Team is a dual Voltage Controlled Amplifier designed with dynamic expression control in mind.
With velocity control over both VCA channels, vcA Team expands the creative use of amplitude variations in your patch, providing control not only over the contour but also over the loudness of your sound.
Each VCA is paired with an extra linear VCA cell for a simple and direct approach to velocity control. The velocity input can be modulated by the velocity CV output of your keyboard or any other CV signal in your rack.
Linear or exponential response is available at the flip of a switch, and an attenuator-inverter potentiometer is also included to attenuate or invert the CV input.
All inputs are DC-coupled, allowing processing of audio signals or control voltage signals.
An additional Mix output sums the two VCA outputs into a single output, turning the vcA Team into a two-channel mixer.
Features:
- Dual VCA.
- Velocity control over both VCA channels.
- Linear and exponential response.
- CV input with Attenuator-Inverter.
- Mixed output.
- DC-coupled inputs.
Specifications:
- Width: 6HP
- Depth: 33mm
- Power consumption: 65mA +12 / 65mA -12
- Eurorack format
- Doepfer power connection
